ENGINE OPERATION54
7
ENON00921-1
Note
After use, leave the outboard motor
upright for a minute to drain the water
from inside the engine.
ENOM00062-1B

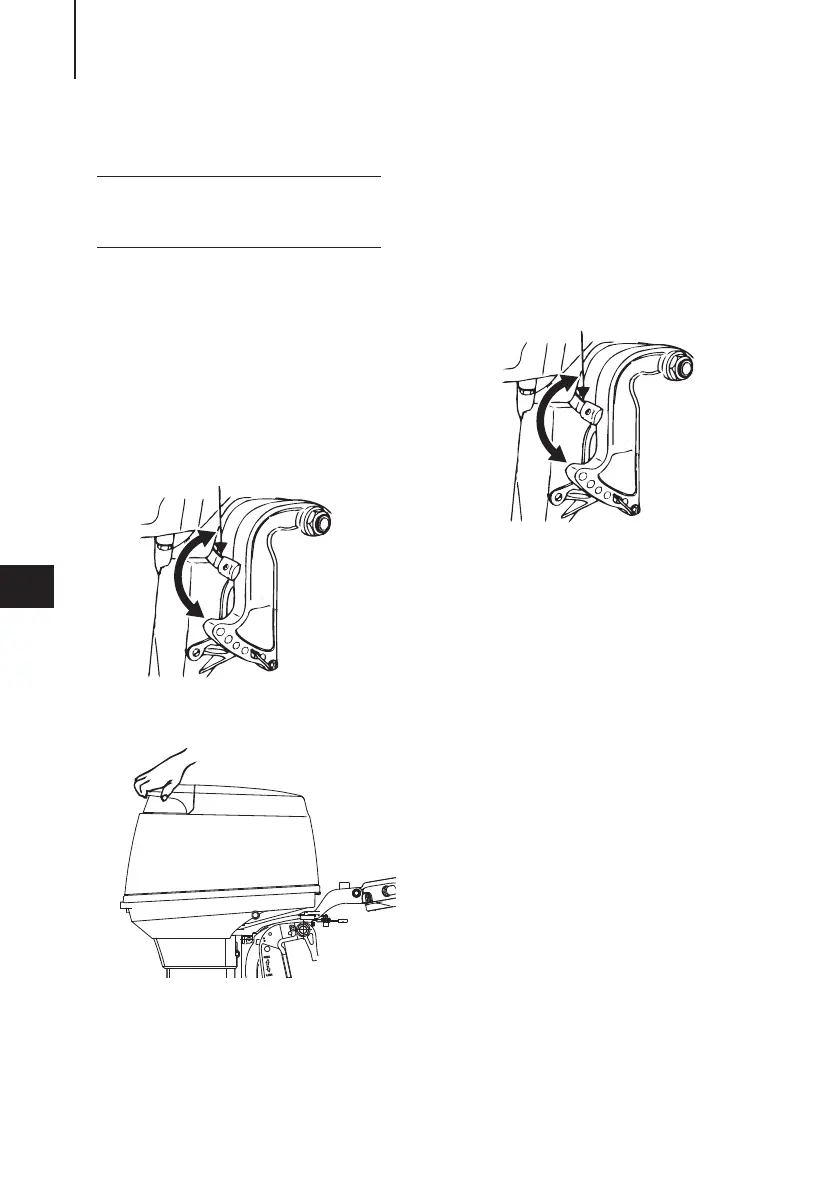

Manual Tilt type
Tilt up
Push the reverse lock lever down until it
stops. (This is the tilt up position.) Then,
tilt the outboard motor all the way up
until it is locked in place.
1. Reverse lock lever
2. Tilt down position
3. Tilt up position
ENOM00063-1
Tilt down
Pull the reverse lock lever upward until it
comes to a stop (This is the tilt down
position), lift up the outboard motor to
free it from the reverse lock, then release
to lower the outboard motor.
1. Reverse lock lever
2. Tilt down position
3. Tilt up position
ENOM00069-A
Power Trim & Tilt type
Tilt up
1. Operate the Power Trim & Tilt switch
and tilt the outboard motor up.
2. Lock the tilt with the Tilt stopper after
the outboard motor has been tilted
up
Tilt down
1. Release the tilt stopper from the set-
up position while slightly tilting up
outboard motor.
2. Operate the Power Trim & Tilt switch
and tilt the outboard motor down
until the motor touches to the thrust
rod.
1
2
3
ENOF00059-0
1
2
3
ENOF00059-0
