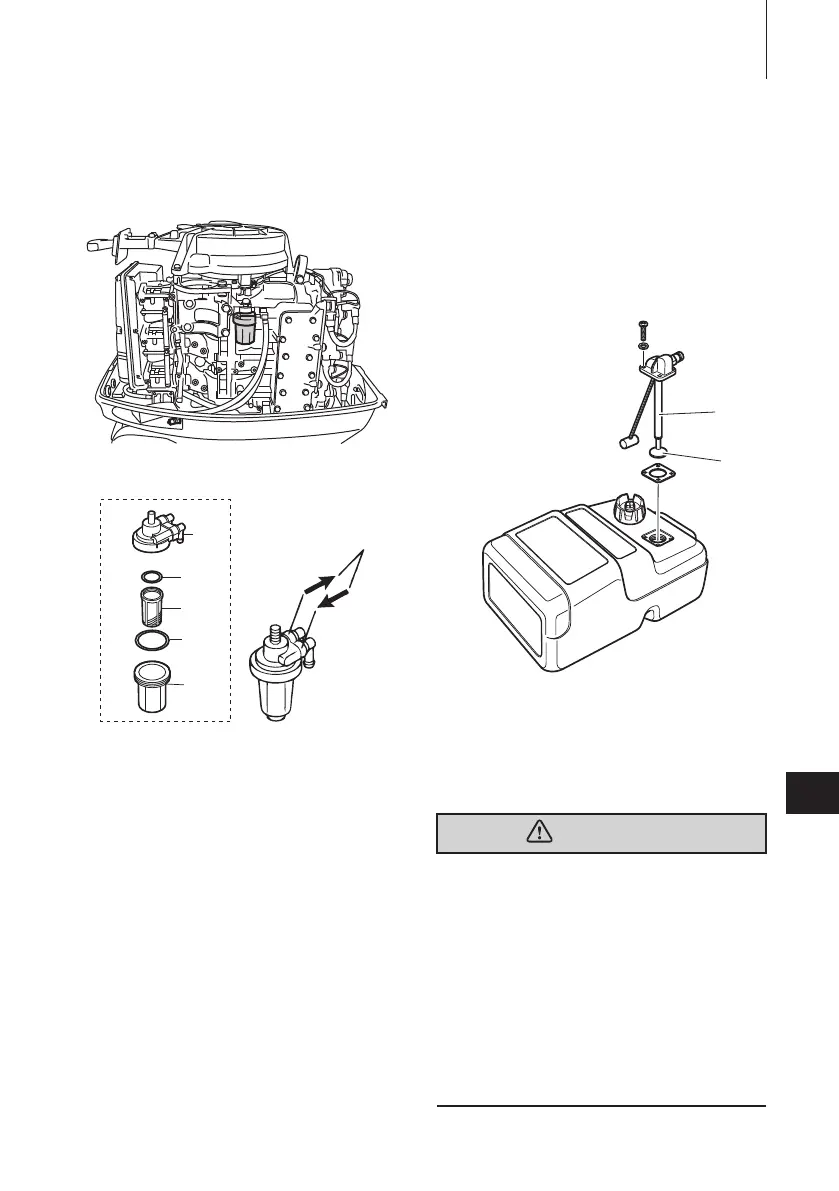

Fuel filter (for engine)
1. Check the cup for water and debris.
1. Body
2. O-ring
3. Filter
4. O-ring
5. Cup
6. Indication of Fuel Flow
2. If present, disconnect hoses from the
fuel connector (male) and the fuel
pump.
3. Remove the cup, filter and O-rings
from the fuel filter body.
4. Check the wear and clogging for each
part, and replace if necessary.
5. Remove fuel and any water or debris
from the cup, filter and hoses.
6. Reassemble all parts.
ENOM00096-A
Fuel filter (for fuel tank)
1. Remove four screws to detach the
Fuel Pick-Up.
2. Clean the fuel filter and replace the
gasket.
3. Reassemble all parts.
1. Fuel pick-up
2. Filter
ENOM00098-B
Gear oil replacement
ENOW00076-1
z Be sure that the outboard motor is
secured to transom or service stand, or
accidental drop or fall of outboard motor
could lead to severe personal injury.
z Be sure to lock the outboard motor in the
tilt up position, or accidental fall of out-
board motor could lead to severe per-
sonal injury.
z Do not go under outboard motor in the tilt
up position and locked, or accidental fall
of outboard motor could lead to severe
personal injury.
ENOF01925-0
1
2
6
3
4
5
ENOF00096-B
WARNING
2
1
ENOF00926-1
