TOMCAR TM2 - Load Compensators (if so Equipped)

FEATURES & CONTROLS
Load Compensators
29
Load Compensators (if so equipped)
The Load Compensators are located between the rear trailing arm and the vehicle frame, one on each side.
When carrying a load over 350 lbs (150 kg), or if you are unsure of the load mass, inate both load compensators to 150 psi (10 bar) using an air
compressor. If, when fully loaded, the rear of the vehicle sits too high, release equal amounts of air from both compensators until the vehicle is
level. To release air from the compensators depress the center pin of the Schrader valve with a pointed object.
An indication of proper use of the compensators is to ensure that the vehicle height, once loaded, is the same
as the vehicle height when empty.

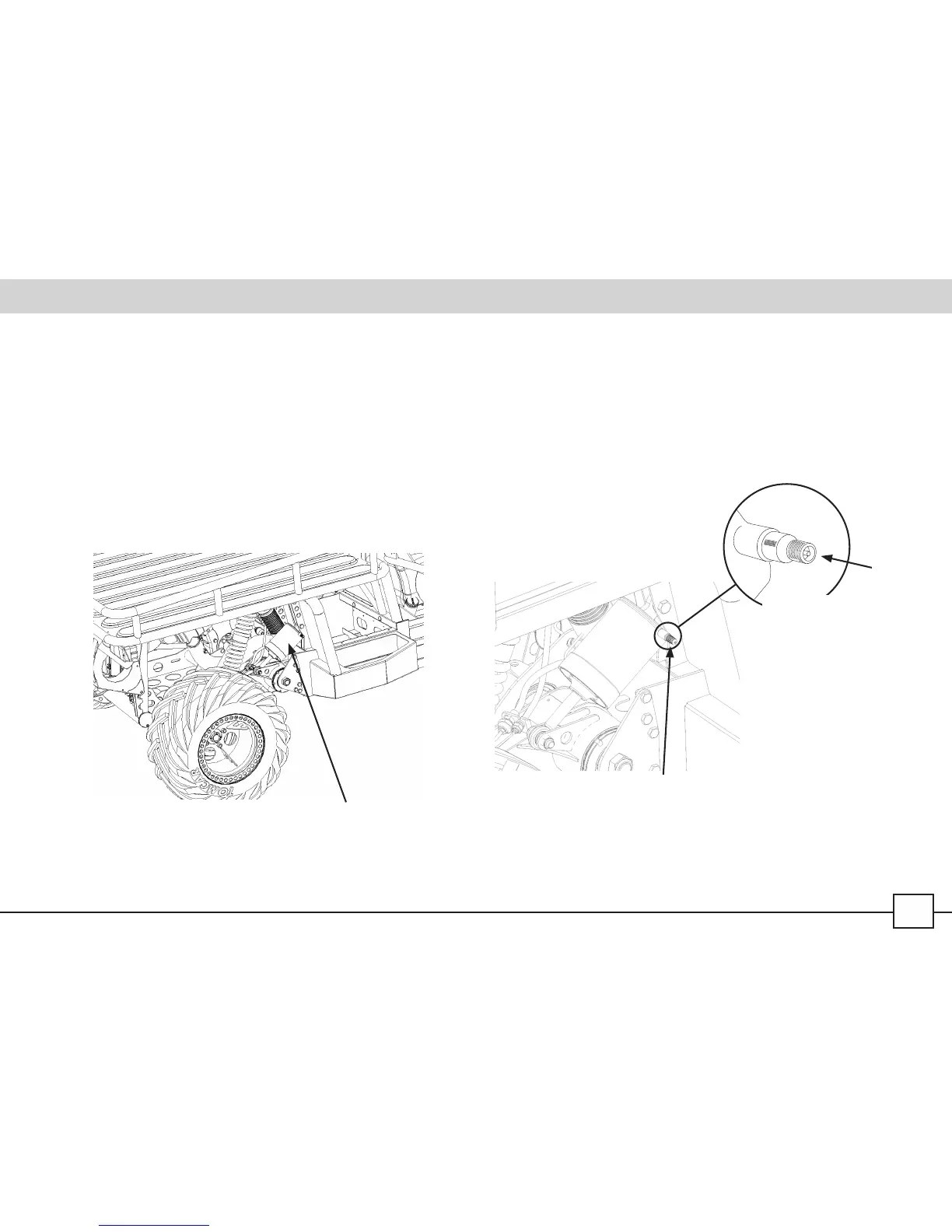

Load Compensator (RHS)
Load Compensator Schrader Valve
Depress center
pin to release air.
