Topcon 3D-MC User Manual

Attachment/Bucket Edge Sensor Calibration
4-5
P/N: 7010-1006
Calibration
7. Tap the Wrench Icon that corresponds to the Boom sensor (Figure 4-5).

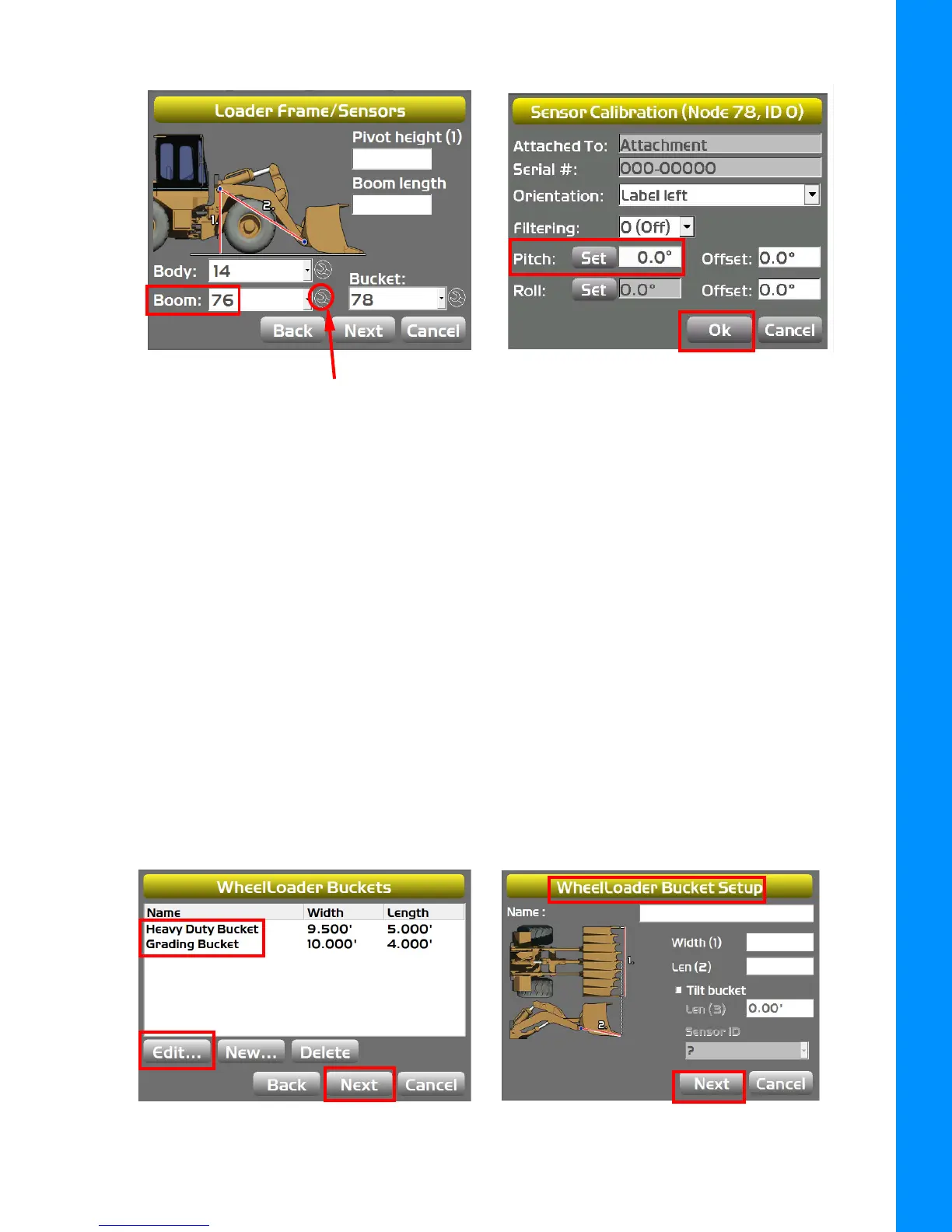

Figure 4-5: Resetting the Boom Sensor Pitch to Zero
8. Tap Set next to Pitch on the Sensor Calibration screen (Figure 4-5), enter the value as zero,
and tap Set again.
9. Tap Ok to return to the Loader Frame/Sensors screen.
Attachment/Bucket Edge Sensor Calibration
Perform the following Attachment/Bucket Edge Calibration Sensor procedure for all
attachments.
1. In 3D-MC Software Interface application, tap Topcon Menu Button > Control > Machine
setup.
2. Tap Next until the WheelLoader Buckets screen appears (Figure 4-6).
3. Select the Name of the attachment that is on the WheelLoader Buckets screen.
4. Tap Edit on the WheelLoader Buckets screen. The WheelLoader Bucket Setup screen
appears (Figure 4-6).
Figure 4-6: WheelLoader Buckets and WheelLoader Buckets Setup
Wrench Icon
