Entering Sensor Information
3-4
P/N: 7010-1006
Machine Setup and Configuration
Entering Sensor Information
Power up the system and allow several minutes for the 3D-MC software to detect the sensors.
Before calibrating the sensors on the excavator systems, set up each sensor in the 3D-MC Software
Interface. You will need the following information:
• the last two digits of the sensor’s serial number
• the physical orientation of the sensor mounting
Step 1: Configure the Machine File and the Wheel Loader options.
1. In 3D-MC, tap Topcon Menu Button—Control Machine setup.
2. Select a current machine file and tap Edit, or tap New to create a new machine file.
3. On the Configuration name/type screen, enter or select the appropriate data as needed
(Figure 3-3).

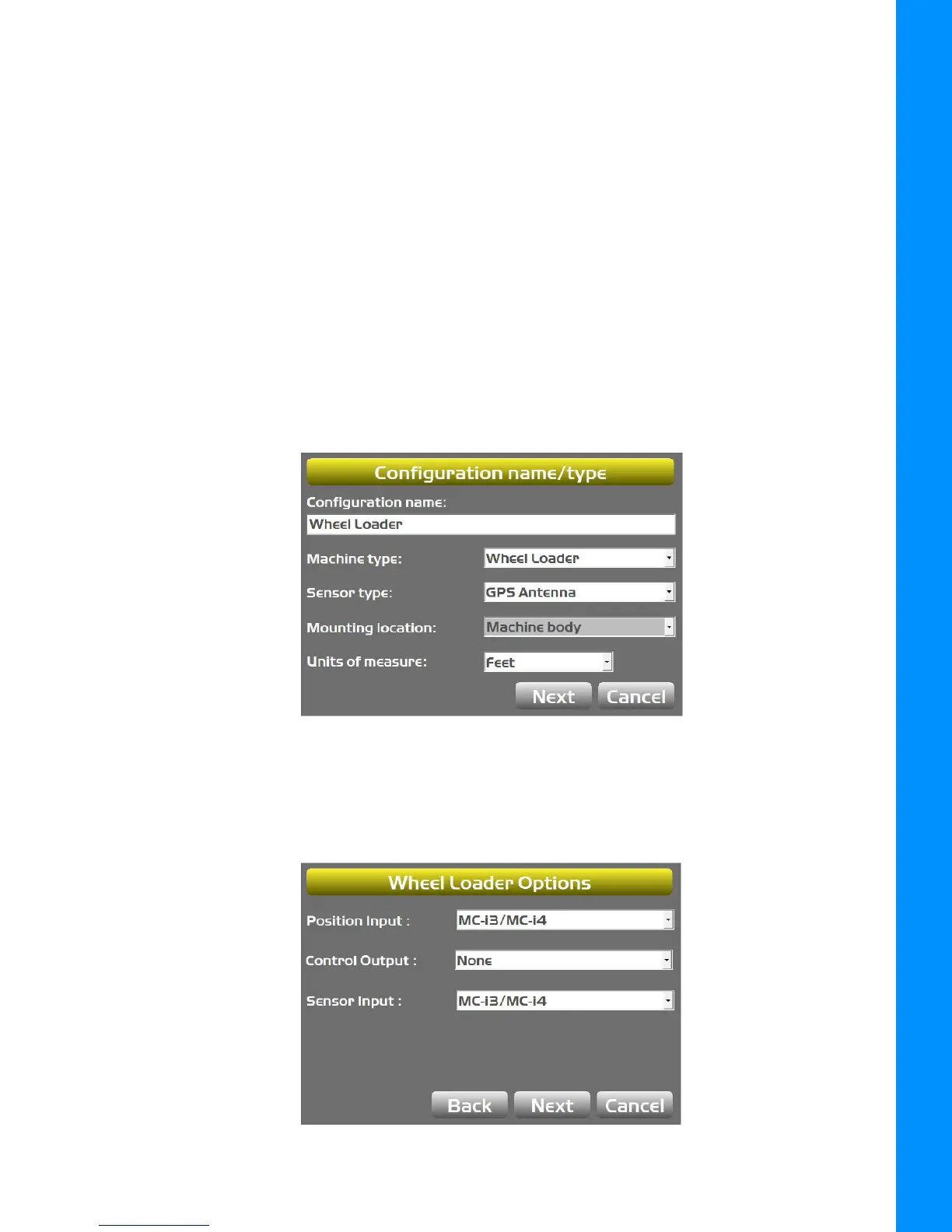

Figure 3-3: Configuration Name and Type
4. Tap Next to navigate to the Wheel Loader Options screen (Figure 3-3).
5. Select MC-i3/MC-i4 as the Position Input (Figure 3-4).
Figure 3-4: Wheel Loader Options
