12 MEASUREMENTS
All measurements performed during the examination can be reviewed in detail in the "Measurements"
section.
There are four types of measurement.
- KER: Keratometry
o ZER: Zernike Analysis
- AL: Axial length
- ANT: Anterior Segment sections: CCT,ACD,LT
- PUP: Pupillometry
to which various environments correspond, described in detail in the following sections.
12.1 Topographic map (KER)

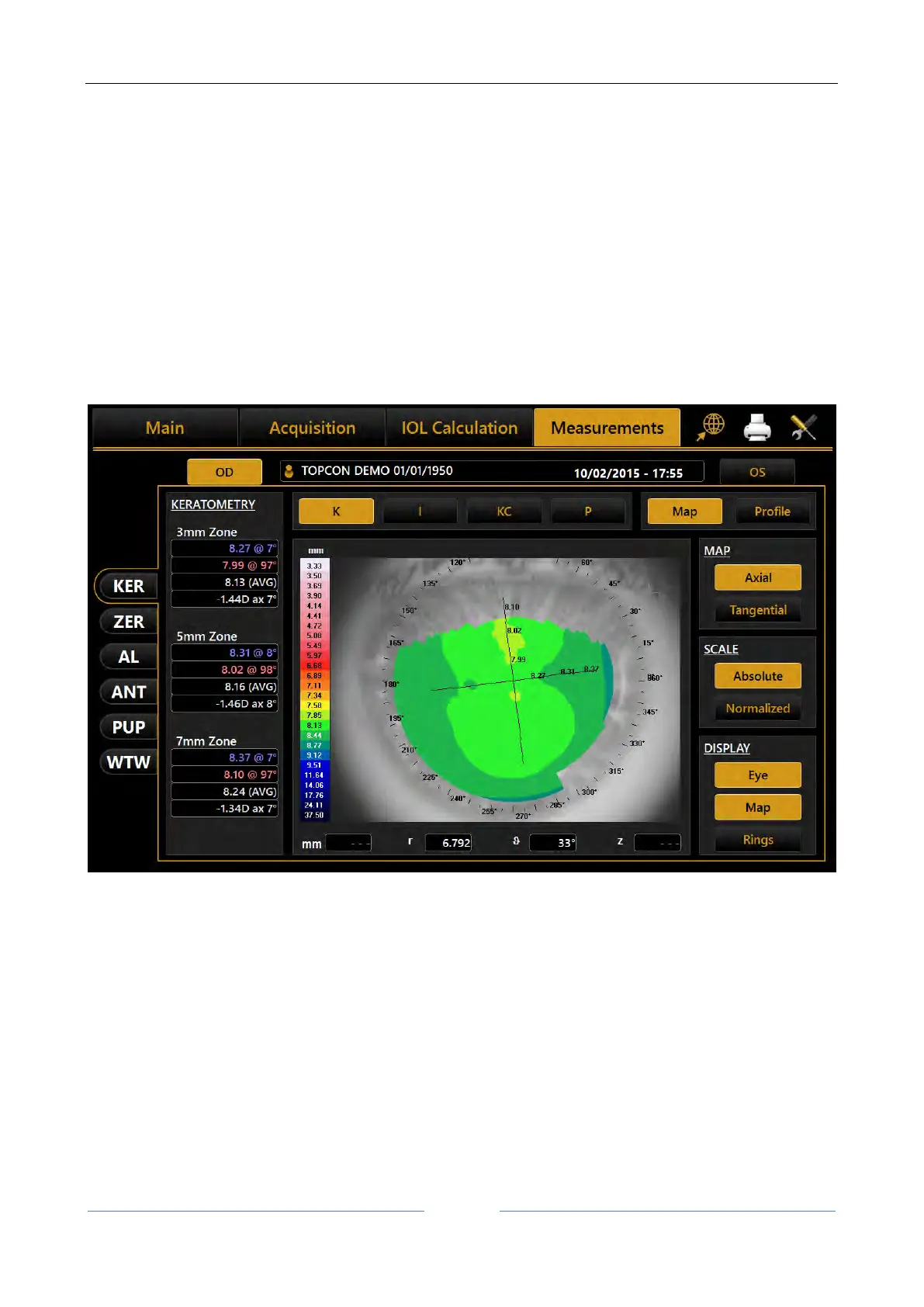

Figure 60
The environment displayed is shown in Figure 60.
Click on the “OD” or “OS” buttons to display the map of the right or left eye. The R and L buttons are only
active if the keratometry of the eye in question has been acquired.
In the right column, you can select the following options:
Axial or Tangential: axial map or tangential map
Absolute or Normalized: absolute scale or standardized scale
Eye, Map, Rings: to display the image of the eye, the map, the rings
Pressing on any point on the map displays the following information:
Diopters (D)
Radius (r)
Meridians (θ)
Altimetry (z)
To Next Page
