The following information is required:
Biometry Procedure
Axial Length
ACD
IOL Spherical Power
Surgically Induced Astigmatism
Incision Location

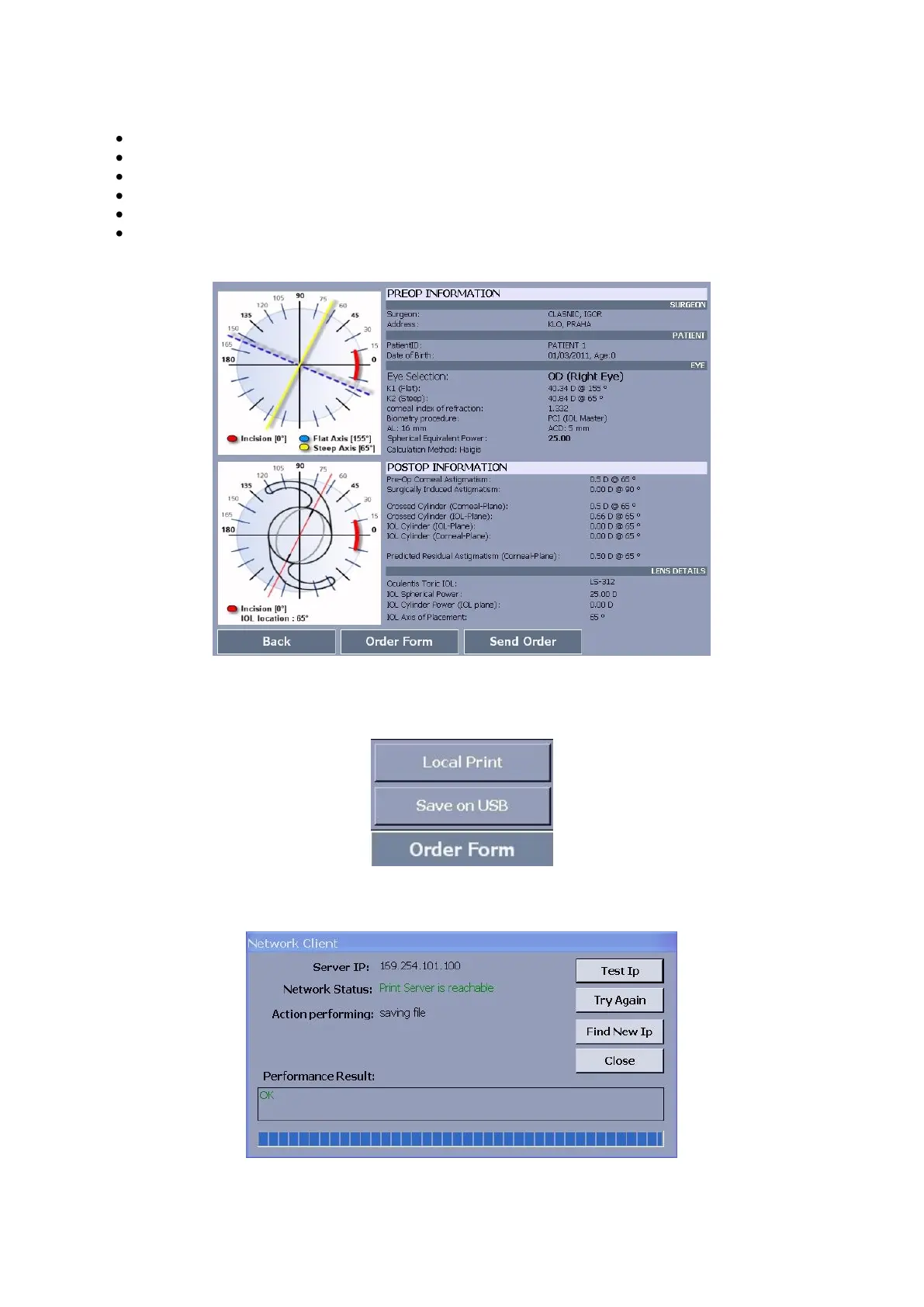

Tap on "Calculate IOL" to view the result window with the pre-op and post-op information (fig. 1-72).
fig. 1-72
Tap on "Order Form" to print the report on a connected USB printer or to save it as a PDF file to a USB unit
(fig. 1-73).
fig. 1-73
Tap on "Send Order" to open a dialogue window for file transfer and remote printing (fig. 1-74).
fig. 1-74
