16.3 Connecting Load Cells to Junction Box
16.4 Load Cell Direction
Observe direction of arrow when installing load cell.
Wire Color Key
Color
Description
1
White
Signal +
2
Green
Signal -
3
Red
Excitation +
4
Black
Excitation -
5
Shield
Shield

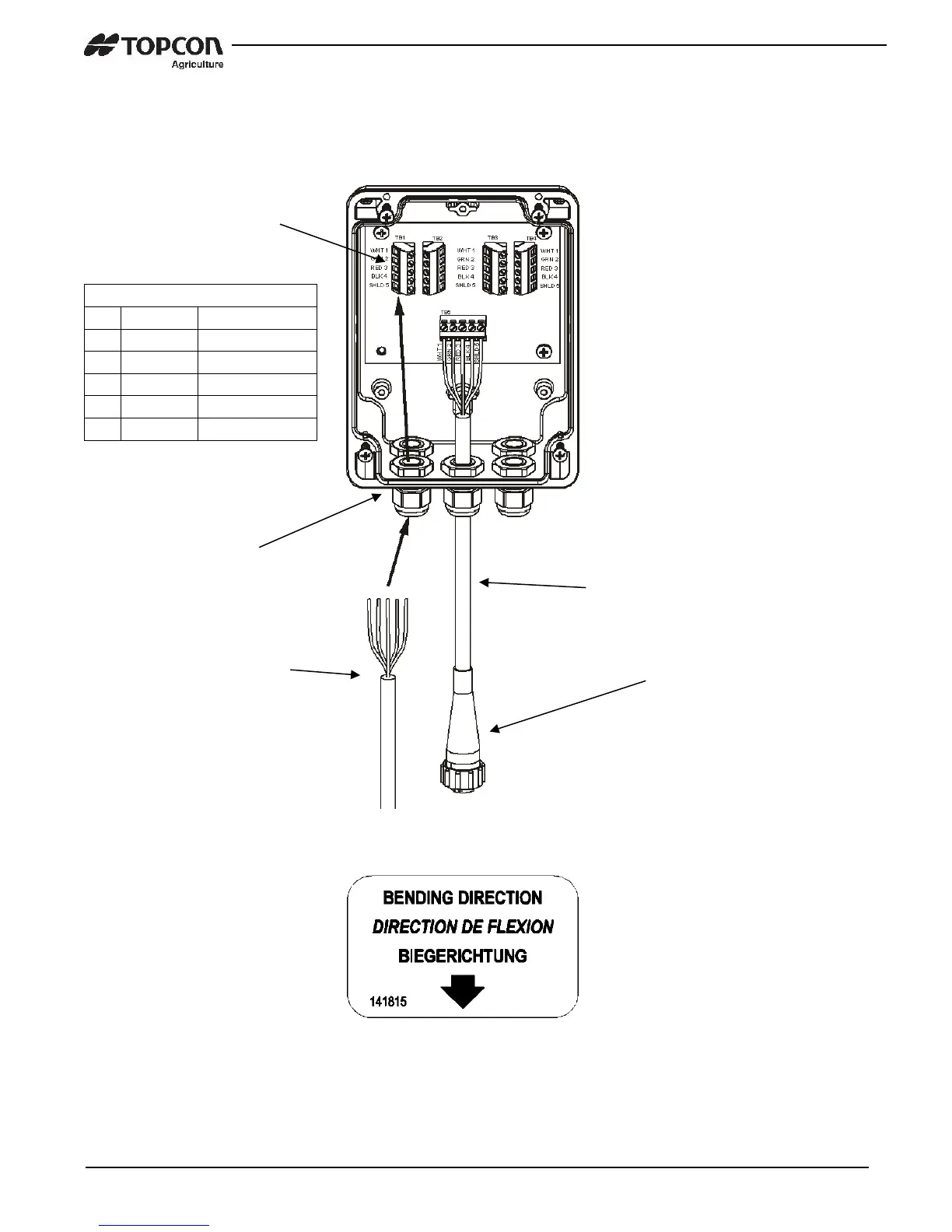

Connect load cell wires
to terminal blocks. See
wire color chart.
J-Box Illustrated for 4 Load
Cells to be installed.
Junction Box Cable
Tighten Nuts
Load Cell Cable
Connect to J902
Load Cell Port on
Indicator bottom
panel.
Installation
