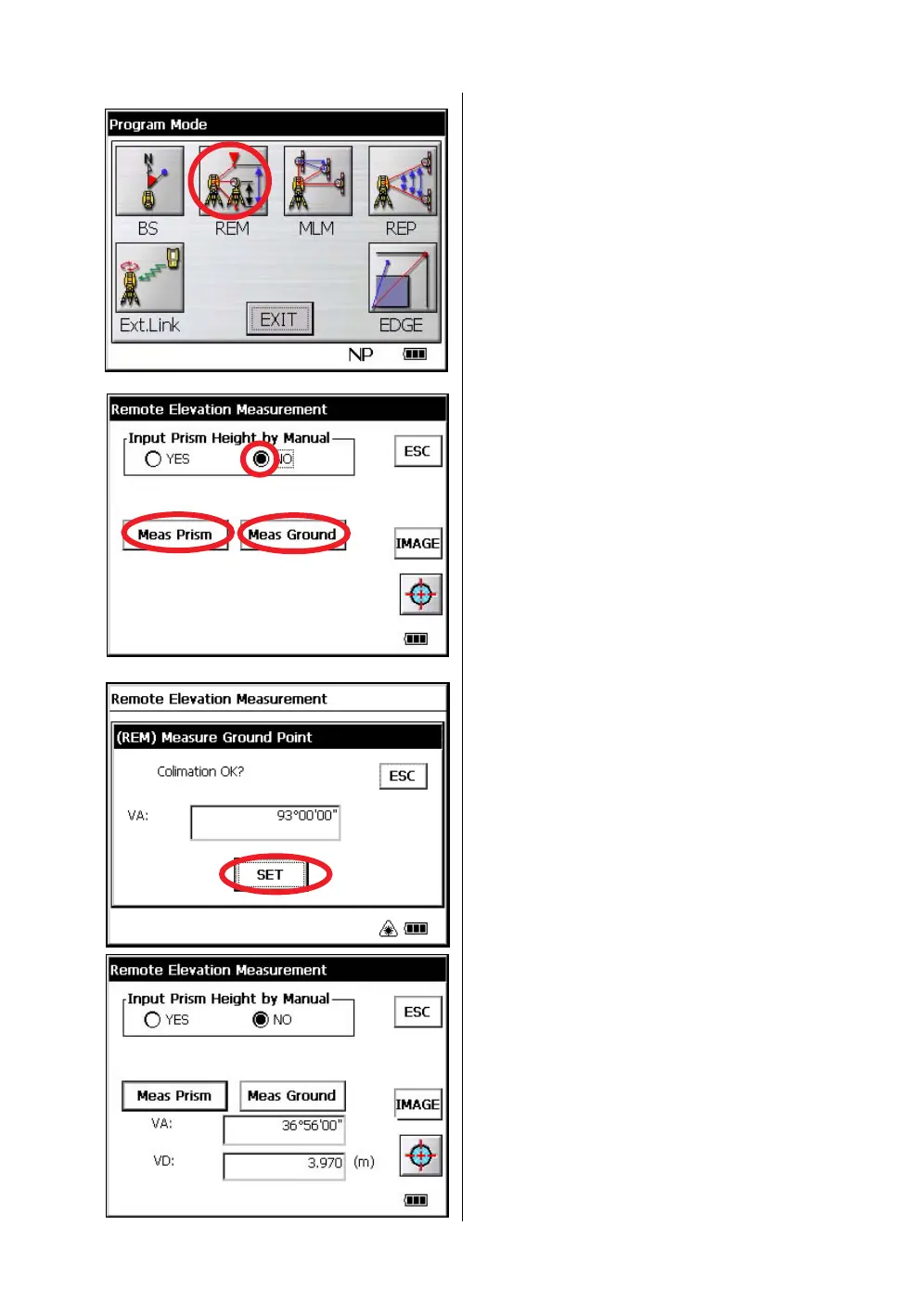

5 PROGRAM MODE
2)Without prism height input
1
Press the [REM] icon.
2
Select the [NO] button.
3
Collimate prism.
4
Press the [Meas Prism] key
.
5
Press the [SET] ke
y
.
6
Collimate ground point G.
7
Press the [Meas Ground] ke
y
.
8
Press the [SET] ke
y
.
9
Collimate target K.
Ve
r
tical angle(V
A) and
V
er
tical distance(VD)
will be shown.
