62
3 AUTOMATIC TRACKING / AUTOMATIC COLLIMATION
3.1 Automatic Tracking
The instrument will measure the moving target(prism) in automatic tracking mode.
It is possible to perform auto-tracking only in prism mode.
When switched to the automatic tracking mode, it becomes prism mode from Non-prism mode/Non-
prism long mode automatically. Moreover, after the end of an automatic tracking does not return to
Non-prism mode/Non-prism long mode.
The prism should be stable when beginning auto-tracking. Moreover, when the prism is locked from
the search, it is similar.
The Coarse 10mm mode must be used when measuring distance continuously for the moving
prism. In other modes, it is impossible to measure the distance continuously.
Change to the Fine mode when measuring the distance with high accuracy for the stationary prism.
1
Roughly collimate the target prism using V/H
jog/shuttle.
(Refer to Section 3.3 “Range of Laser for Auto-
tracking and Auto-collimating”.)
2
Press the star [ ] key to set the star key
mode.
3

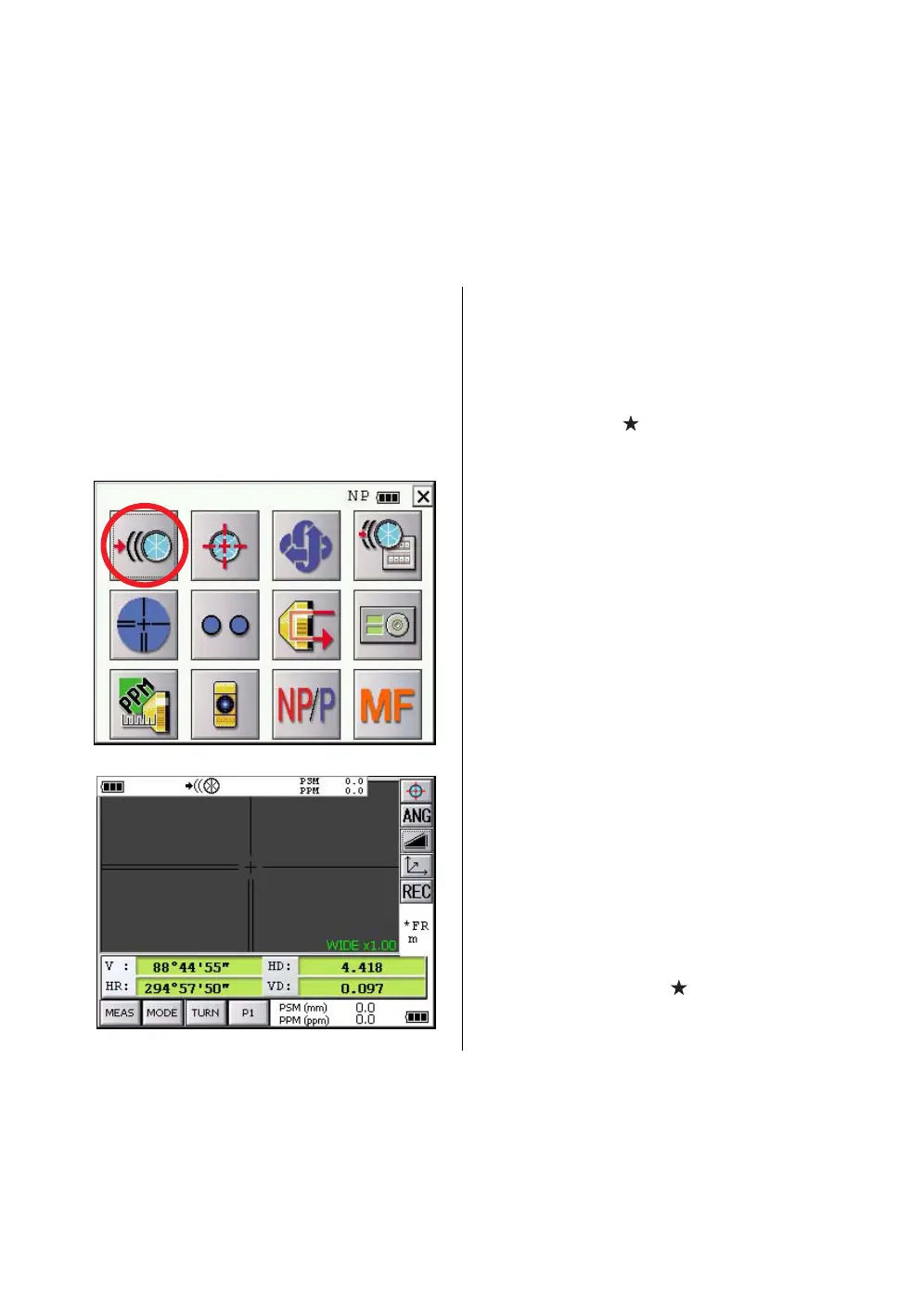

Press the Auto-tracking icon. The mode will be
automatic tracking mode.
The instrument searches the prism and tracks
it automatically.
4
Choose measuring modes by pressing the
operation keys.
Measuring starts.
When you wish to cancel the automatic tracking
mode, press the star [ ] again, and then
press the Auto-tracking icon.
