4 STANDARD MEASUREMENT MODE
4.2.4
V
er
tical Angle P
er
cent Grade(%) Mode

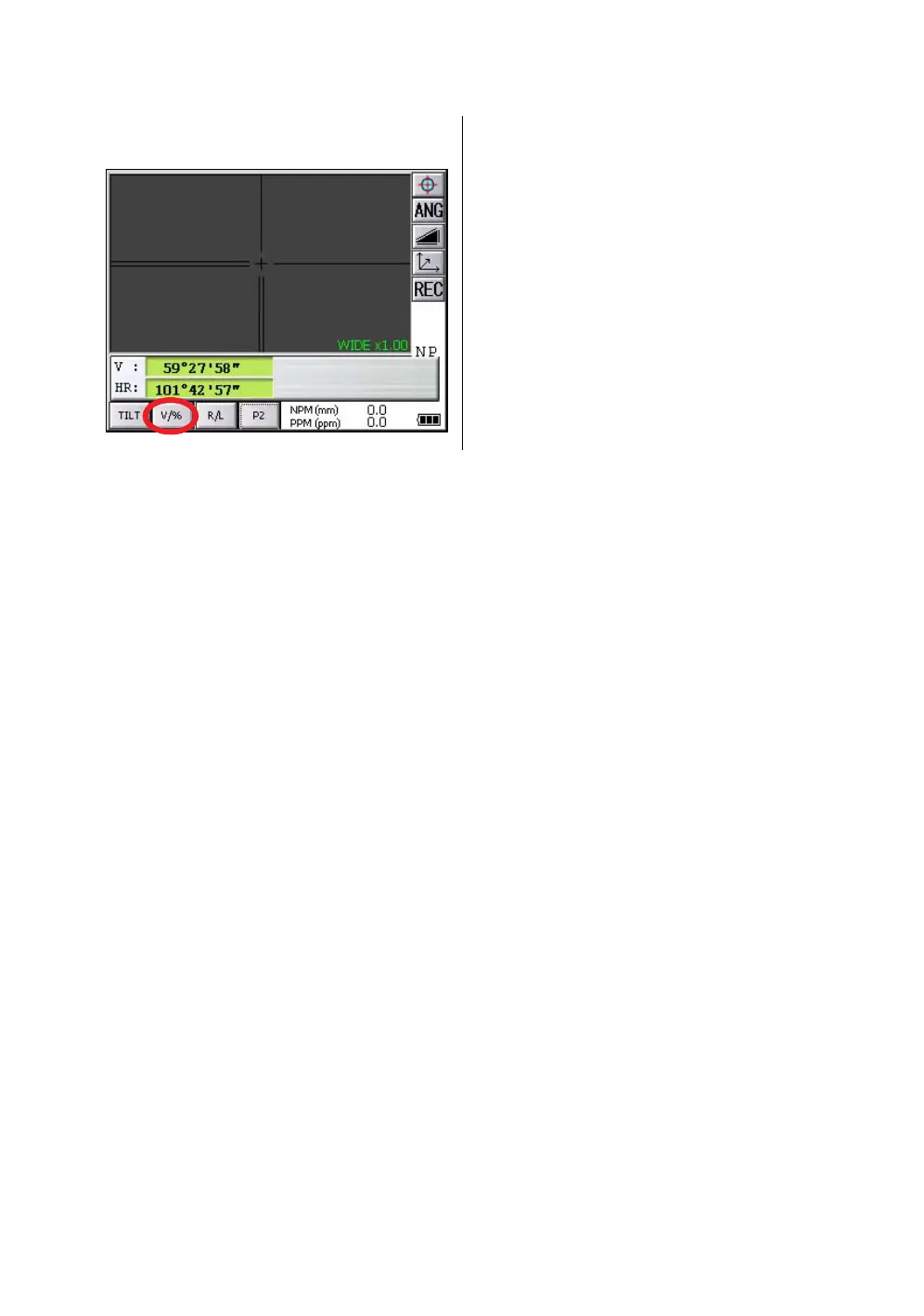

Make sure the mode is angle measurement
.
1
Press the [P1] ke
y to get on the page 2.
2
Press the [V/%] ke
y
.
*1)
*1) Every time pressing the [V/%] key
, the displa
y mode switches.
76
78
