Topcon IS01 - Angle Measurement; Measuring Horizontal Angle Right and Vertical Angle

70
4 STANDARD MEASUREMENT MODE
4.2 Angle Measurement
4.2.1 Measuring Horizontal Angle Right and Vertical Angle
Make sure the mode is in angle measurement
.
1
Collimate the 1st target (A).
2
Set horizontal angle of target (A) at 0° 00' 00".
Press the [0SET] key and the [YES] key.
3
Collimate the 2nd target (B).

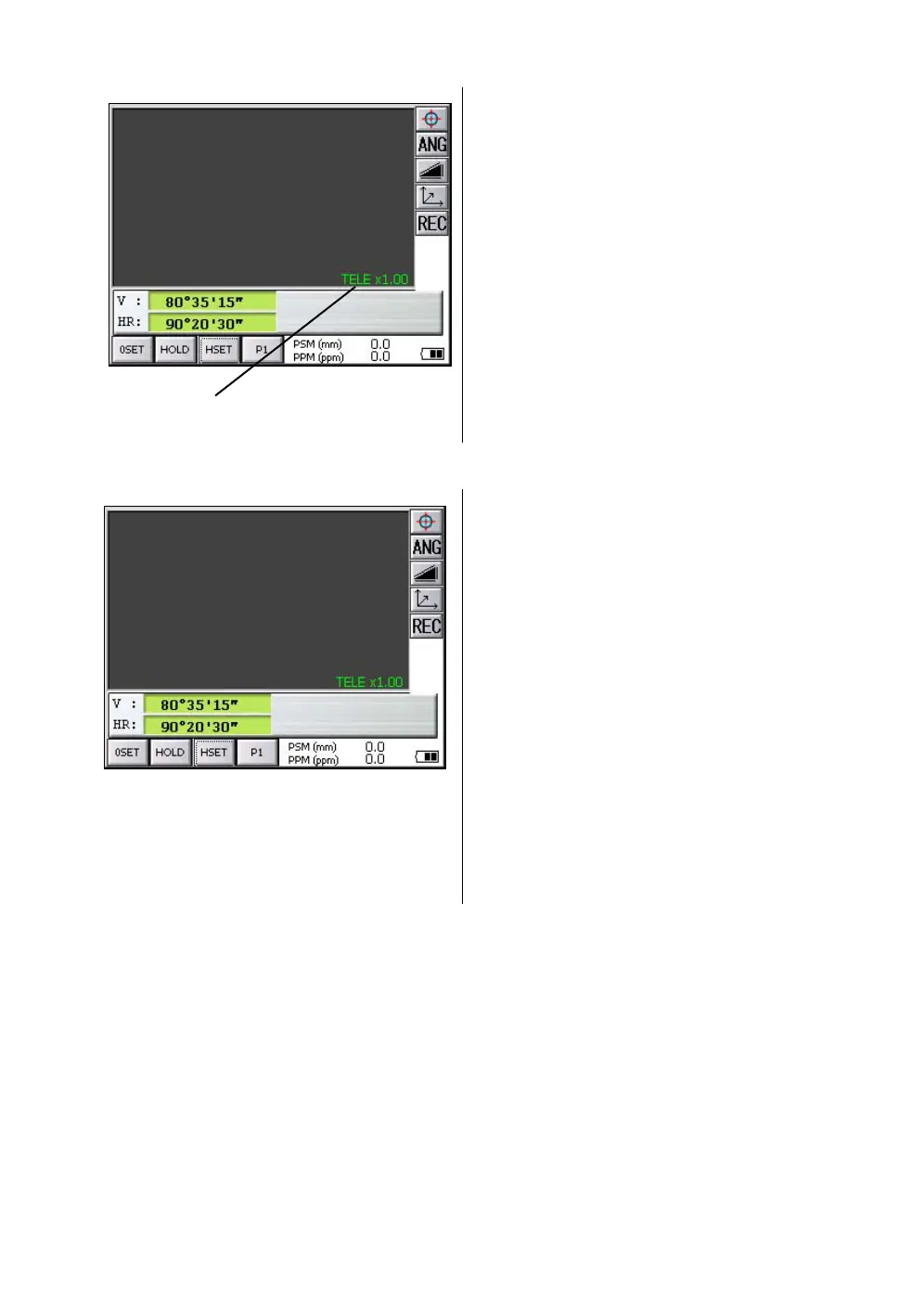

The required H/V angle to target B will be
displayed.
