4 STANDARD MEASUREMENT MODE

4.6 Data Output by [REC] Key

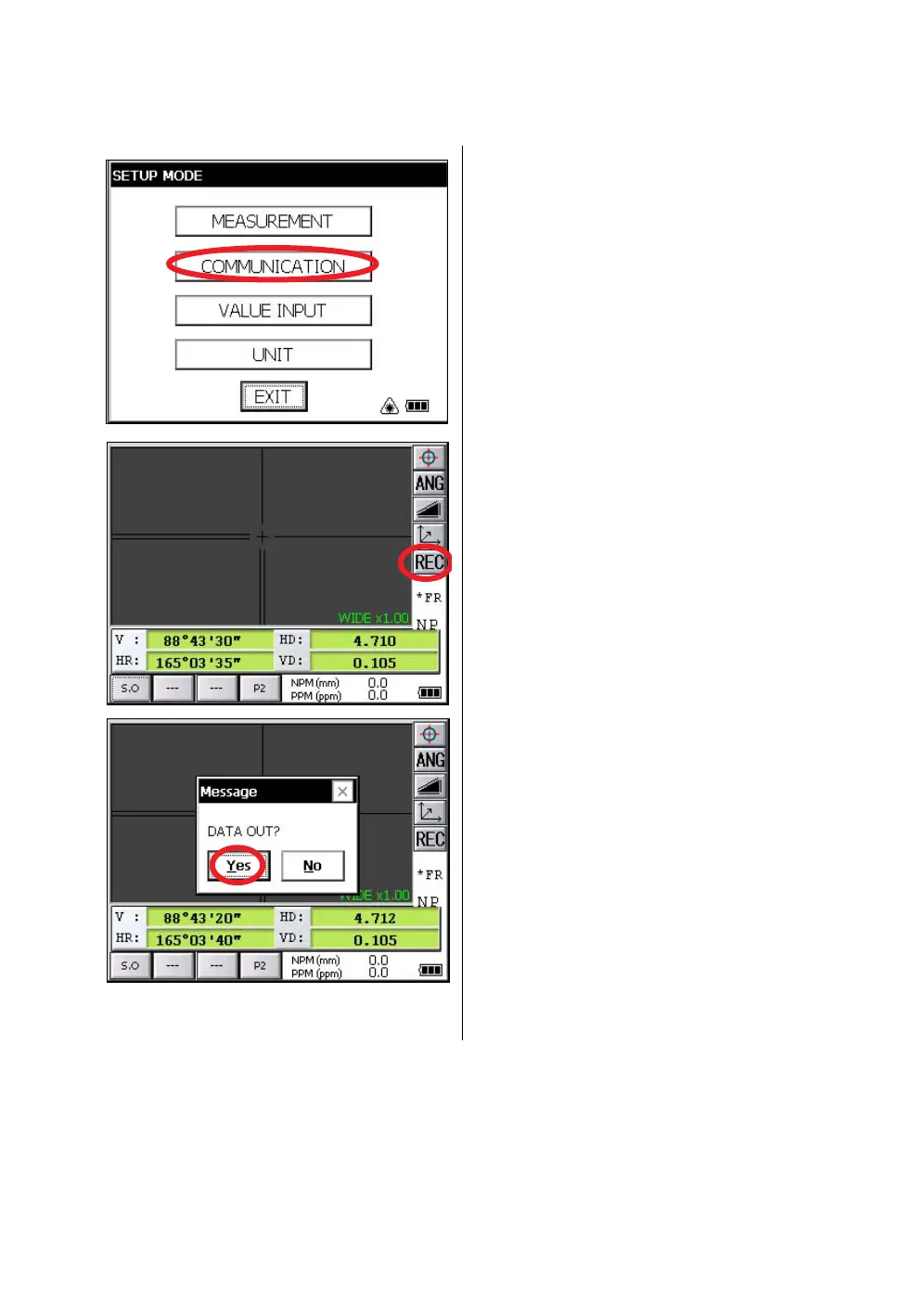

It is also possible to output the result of measurement by pressing the [REC] key .

[Example: Distance measurement mode]

With the SETUP mode, set the communication

parameters.

Refer to Chapter 6 “PARAMETERS SETTING

MODE” .

After setting the communication parameters,

select the distance measurement mode.

Press the [REC] key.

Measurement will be started.

After the measurement, press the [Yes] key.

The data will be transferred to the Data

Collector.
