Topcon IS01 - Measurement Menu; Display Marks

13

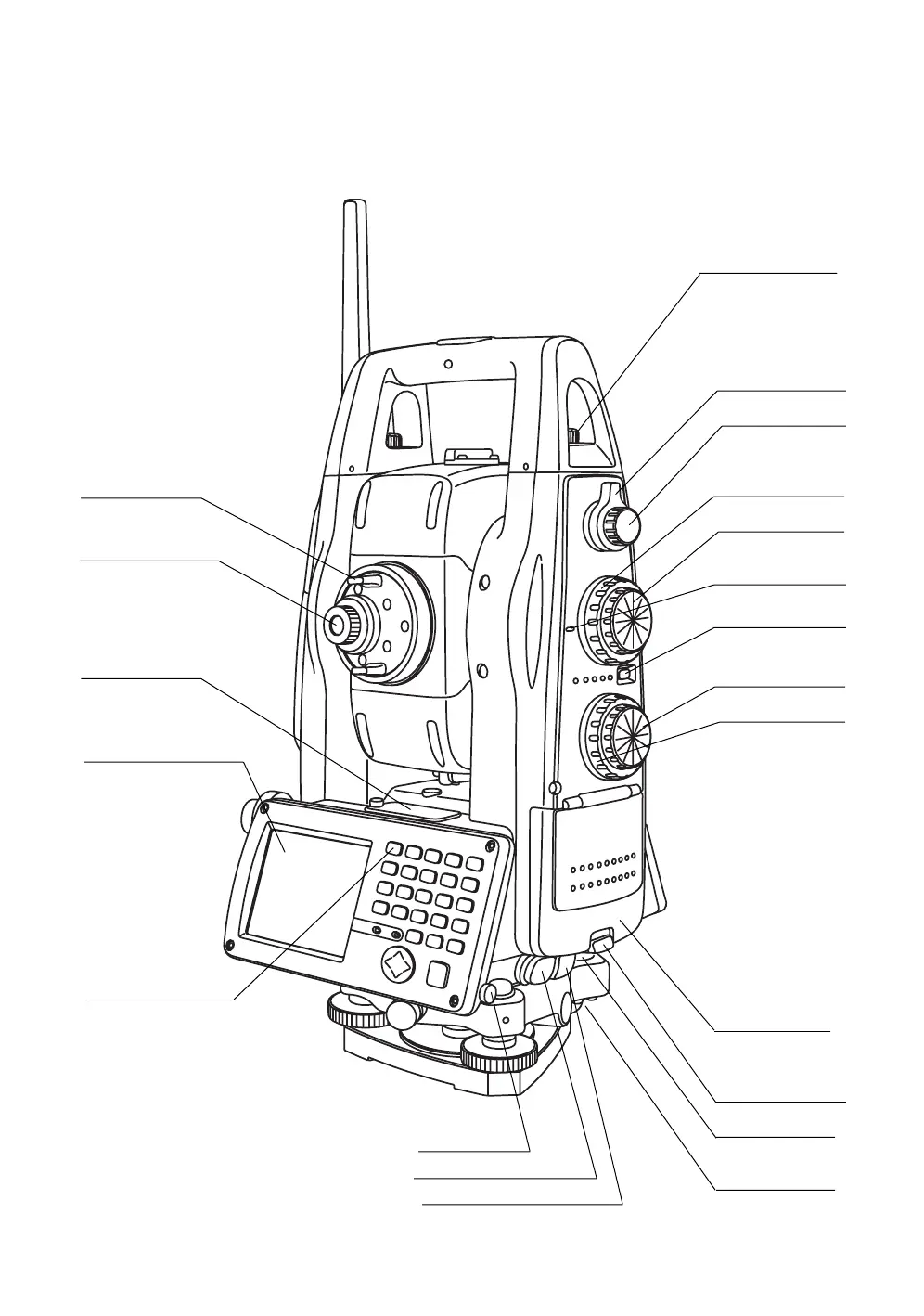

1 NOMENCLATURE AND FUNCTIONS
1.2.2 Measurement Menu
1.2.3 Display Marks
Display Contents Display Contents
V V-angle m Meter unit
V% Percent grade ft Feet unit
HR H-angle right F Fine mode
HL H-angle left C Coarse mode
HD Horizontal distance c Coarse 10mm mode
VD Relative elevation R Repeat measurement
SD Slope distance S Single measurement
N N coordinate N N-times measurement
E E coordinate PPM Atmospheric correction value
Z Z coordinate PSM Prism constant correction value
*
EDM working NPM Non-Prism constant correction value
Battery Level Indicator
Refer to see Chapter 2.4 “Battery
Power Remaining Display” . for further
information.
NP Non-prism mode
Rotation Indicator
Refer to Section 1.14 “Rotating Method”
for further information.
LNP Non-prism long mode
Laser emitting mark Setting Non-prism long range
Example : Distance Mode
V-angle V : 88°44’25”
H-angle HR : 169°48’45”
Horizontal distance HD : 4.411m
Relative elevation VD : 0.097m
Operation keys
