Topcon IS01 - Automatic Rotation to a Required Horizontal and Vertical Absolute Angle

74

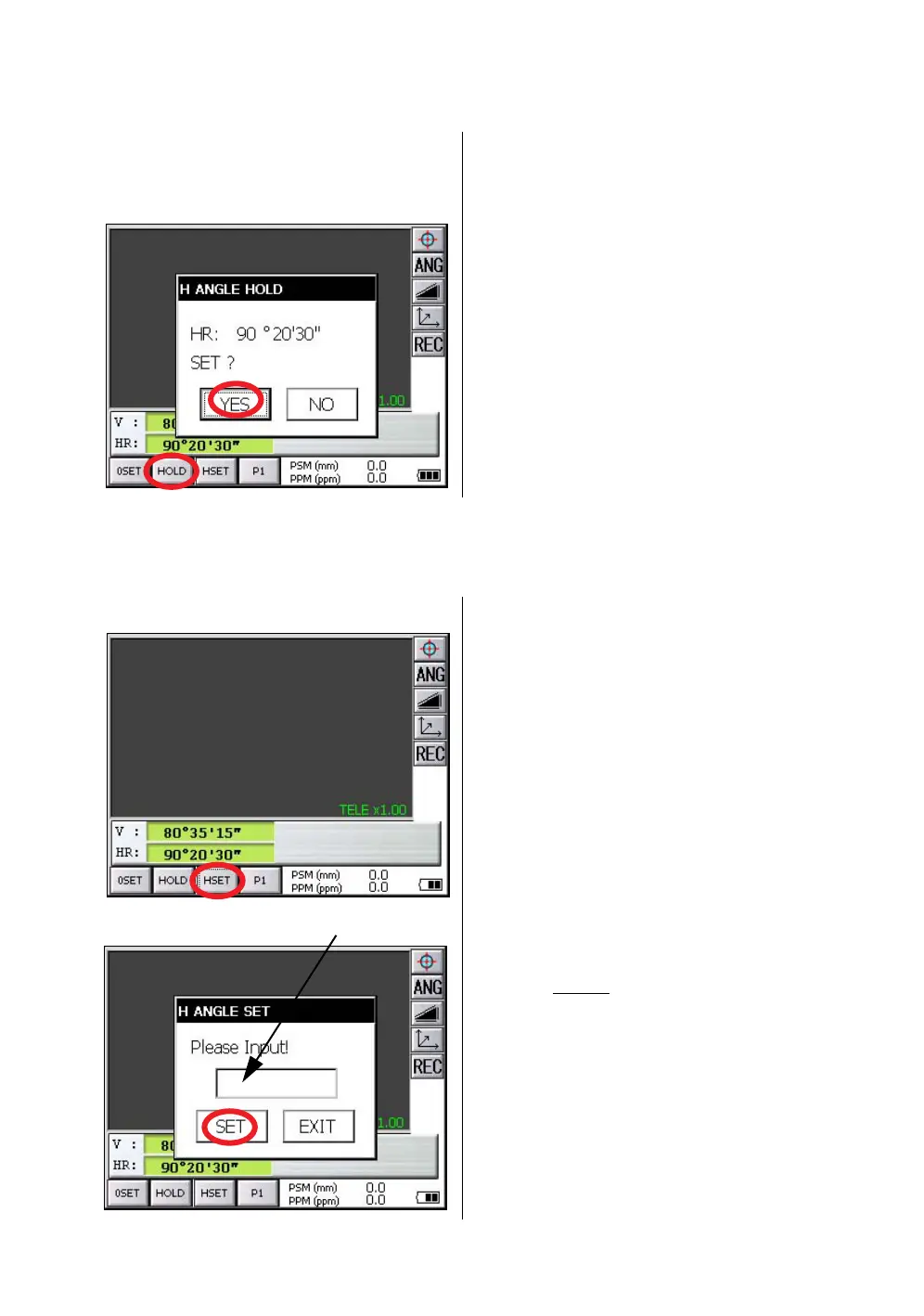

4 STANDARD MEASUREMENT MODE
4.2.5 Automatic Rotation to a Required Horizontal and Vertical Absolute Angle
The IS series can be rotated to a required horizontal and vertical absolute angle by direct key input.
Example: Both vertical and horizontal angle
1
At angle measuring mode (Page 3), press the
[TURN] key.
2
Select item to rotate.
[Example]: V, H ANGLE
3
Input angle.
For example:50
°
20'30"
Input 50.2030
4
Press the [SET] key.
Rotation will begin.
After completing the rotation, it will return to the
previous mode.
*1) Setting range for rotation is ;
0
°
00' 00"≤ HR <+360
°
00' 00"
0
°
00' 00"≤ V ≤ +140
°
00' 00" and 240
°
00' 00"≤ V < +360
°
00' 00" (Zenith 0)
0
°
00' 00"≤ V ≤ +210
°
00' 00" and 310
°
00' 00"≤ V < +360
°
00' 00" (Horizontal 0)
*2) Press any key except power key to stop rotating in emergency during operation.
*3) You can select a accuracy of the actual stopping angular positions. Refer to Chapter 6 “PARAMETERS
SETTING MODE” .
