139

9 SETTING ATMOSPHERIC CORRECTION

•

How to Set the Atmospheric Correction Value Directly

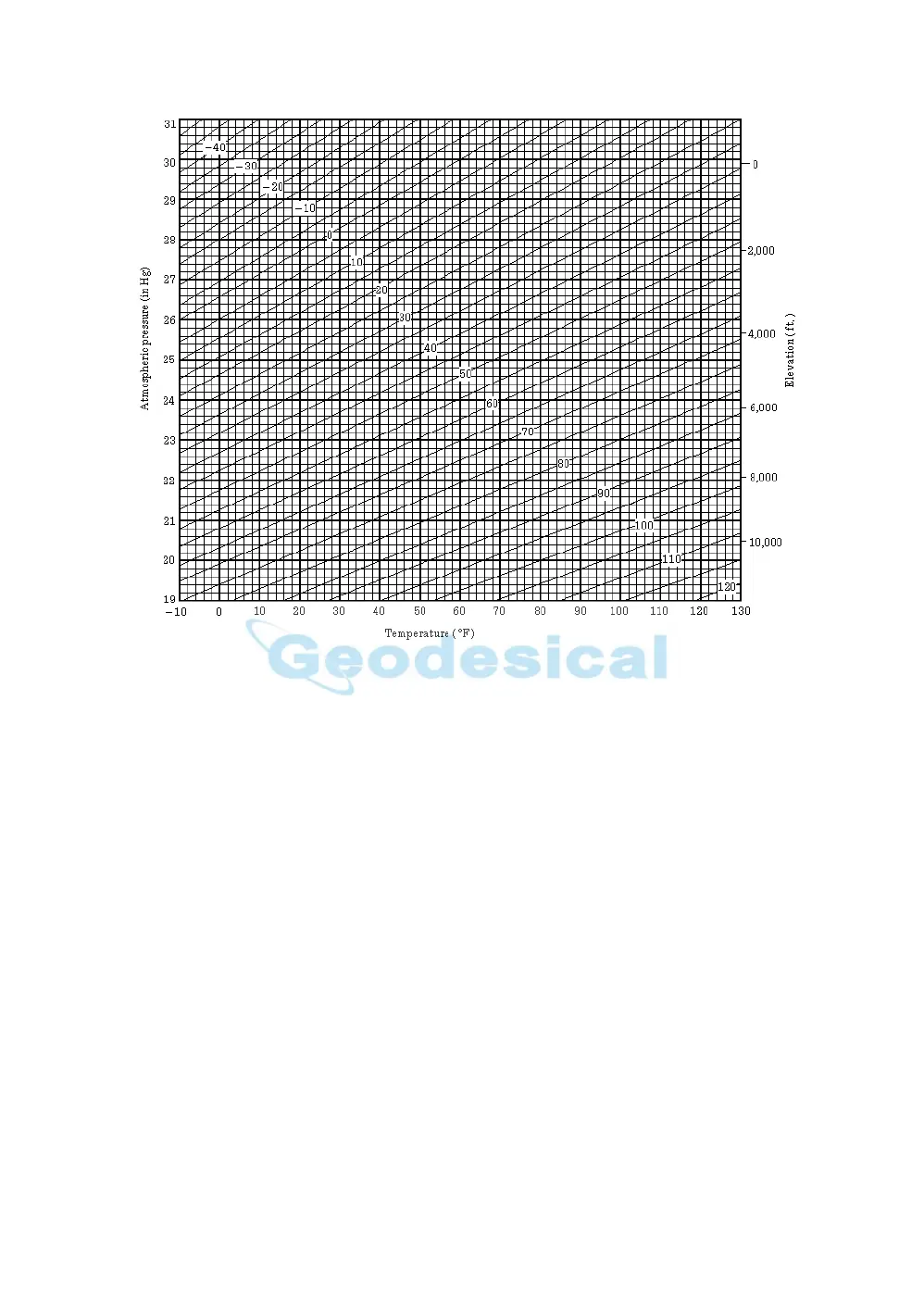

Measure the temperature and air pressure to ﬁnd atmospheric correction value(PPM) from the chart or

correction formula.

Tu rn the power switch on.

Press the [ ] key.

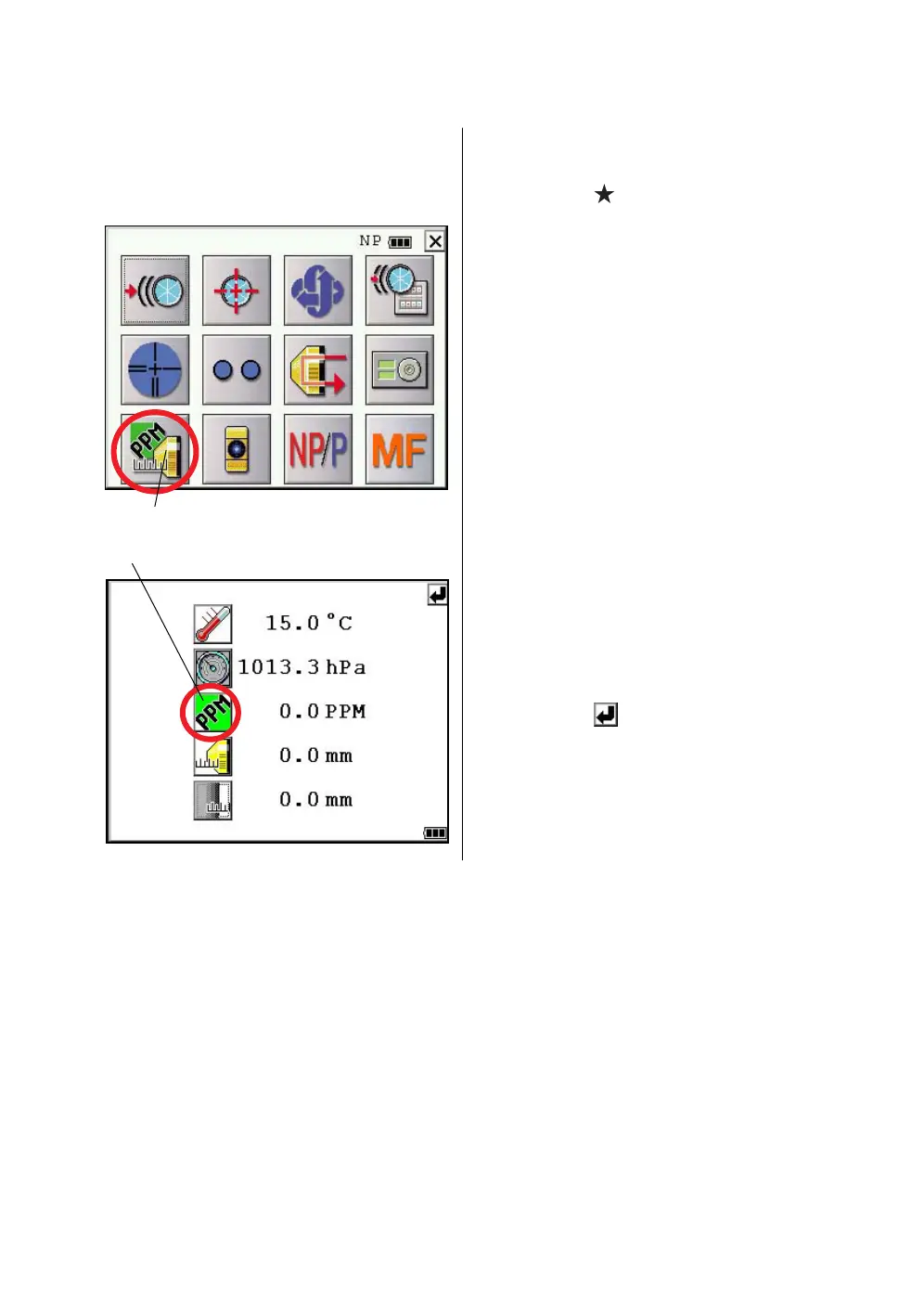

Press the

[Prism constant value, Atmospheric correction]

icon.

Press the [PPM] icon.

Input atmospheric correction value. *1)

Press the [ ] key.

*1) Input range : -999.9mm ~ +999.9mm (0.1mm step)

[PPM] icon

[Prism constant value, Atmospheric correction] icon
