1 NOMENCLATURE AND FUNCTIONS

1.11.2Setting by Using Star Key

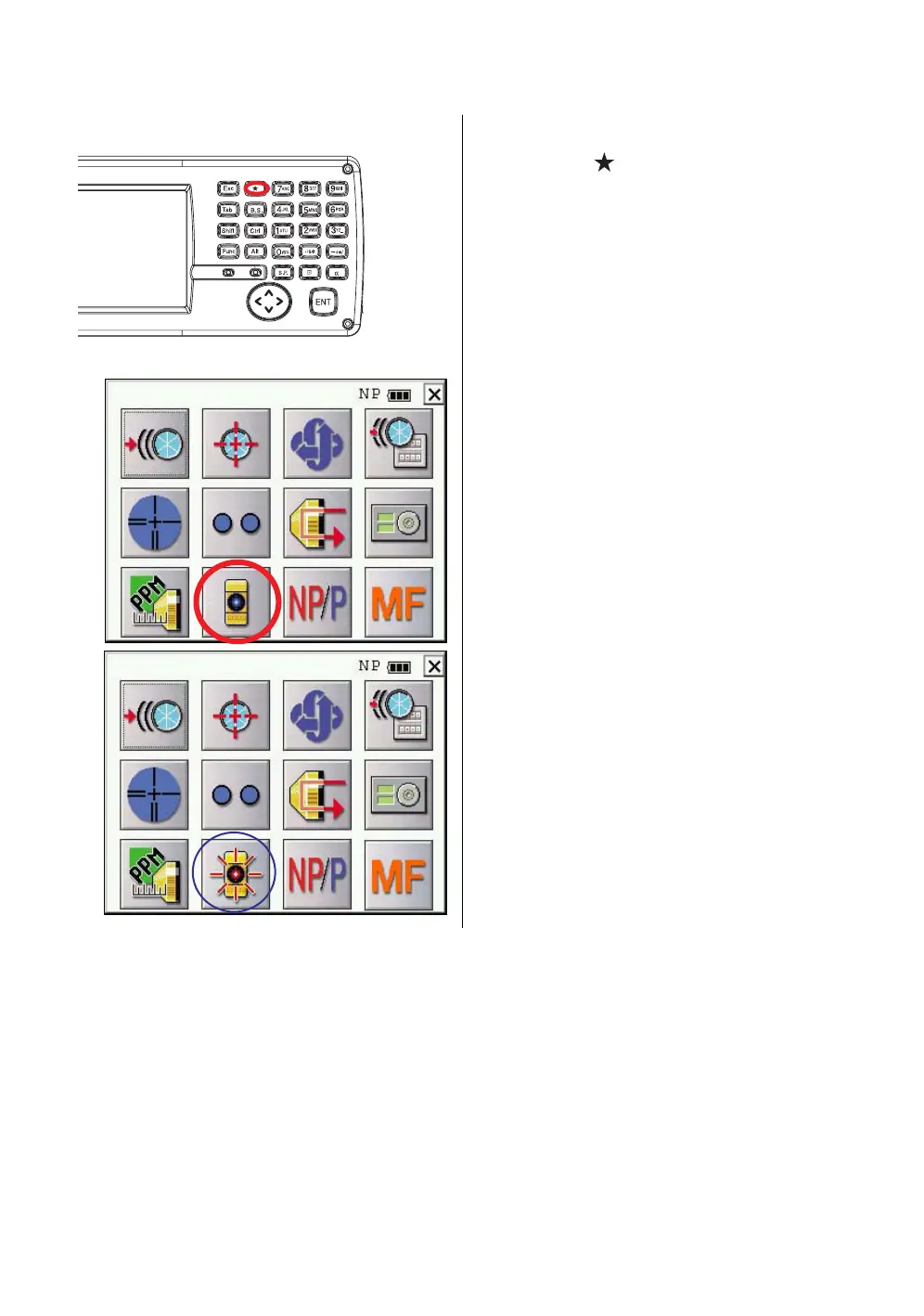

[Example] : Switch on the laser pointer

Tu rn the power switch on.

Press the [ ] key.

Press the [Laser pointer] icon.

The laser pointer will be turned on.
