Topcon MC-X3 User Manual

Installation
Measurement, Configuration, and Calibration
2-19
P/N: 1049060-01
Measurement, Configuration, and Calibration
After the system hardware components have been installed, please refer to the MC-X Dozer Systems
Reference Installation and Calibration Manual, P/N 1044736-01, for information on required the
measurements, configuration, and calibration.
Completing Installation
After the machine has been measured and calibrated, the installation can be completed by securing
the cover shields (P/N 1032188-01) to the TS-i4 IMU sensors.
1. Secure the cover shield for the TS-i4 Blade sensor (P/N 1032188-01), which is closed on one
end. Use 4 hex screws and 4 washers to install the cover shield (Figure 2-25).
2. Secure the cover shield for the C-Frame TS-i4 IMU sensor, using the standoffs, 4 hex screws,
and 4 washers.
3. Secure the cover shield for the Body TS-i4 IMU sensor, using the standoffs, 4 hex screws, and 4
washers.

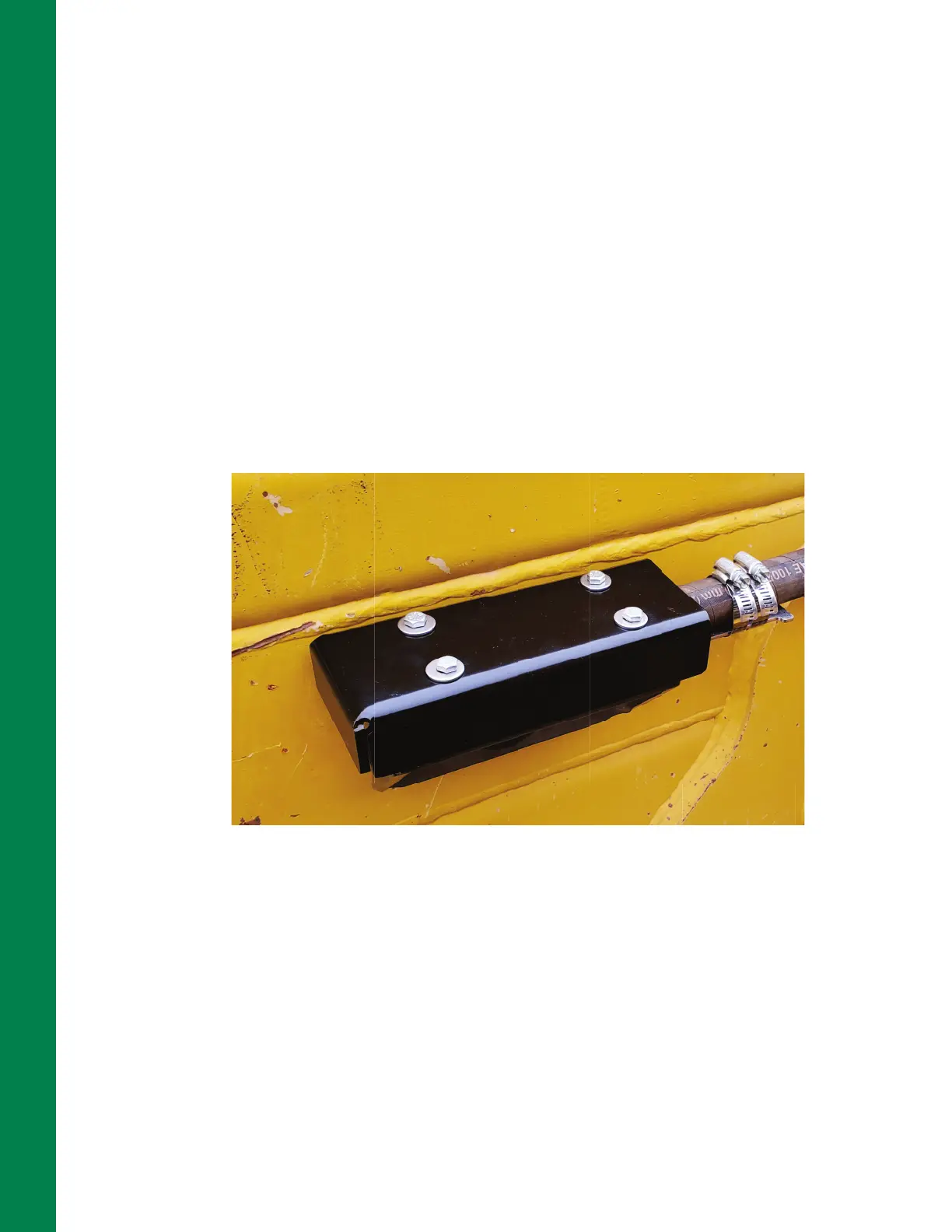

Figure 2-25: TS-i4 Blade Sensor Cover Shield Installed
