Introduction
Preparing for Installation
1-2
P/N: 1049060-01

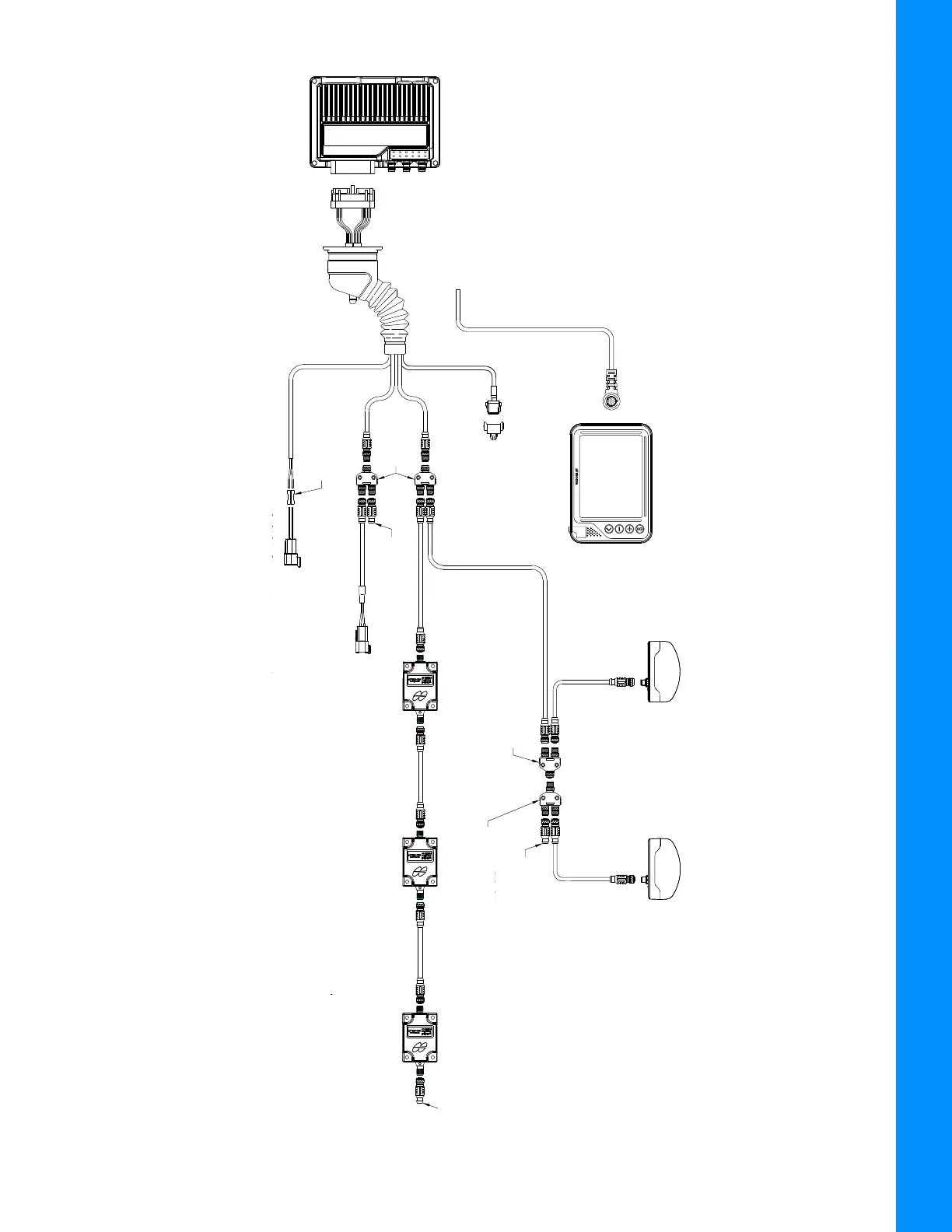

Figure 1-2: Caterpillar 3D-MC
MAX
D5/D6 Dozer System Diagram
TS-i4
BLADE
4060-0586
TERMINATOR
TS-i4
C-FRAME
TS-i4
BODY
4060-0586
TERMINATOR
3020-0526
TEE
3020-0623
TEE
MACHINE INTERFACE CONNECTOR
(’3rd PARTY ARO’)
3-PIN
DEUTSCH
6-PIN
DEUTSCH
UNSWITCHED
VOLTAGE SUPPLY
(’3rd PARTY ARO’)
4060-0586
TERMINATOR
3020-0623
TEE
SPLICE
QTY 2
1040764-01
1033631-02
1041039-01
1041037-01
AUX GR-i3/GR-i3F
MAIN GR-i3/GR-i3F
1040763-01
GX-55
MC-X3
SERIAL
EXTERNAL
RADIO
POPULATE GX-55
PINS AFTER
ROUTING CABLE
