6. SETTINGS FOR THE TOTAL STATION
Search pattern
The search pattern is the rotating method of telescope and
instrument to find the target prism in search mode.
In Pattern "1" instrument starts searching the prism at the point
where the prism is lost and gradually expands the searching area
in vertical direction, keeping the horizontal angular width.
Pattern "2" can be selected to search for the prism. The search
pattern tries to locate the prism in a very short time.
In pattern "3", instrument starts searching the prism at the point
where the prism is lost and gradually expands the searching area
in horizontal and vertical direction.
In every pattern, the searching is arranged to 2 times until the
reflector is found. The auto tracking mode changes to manual
mode when the reflector could not found out within 2 times
searching, and returns to the point where the reflector is lost.

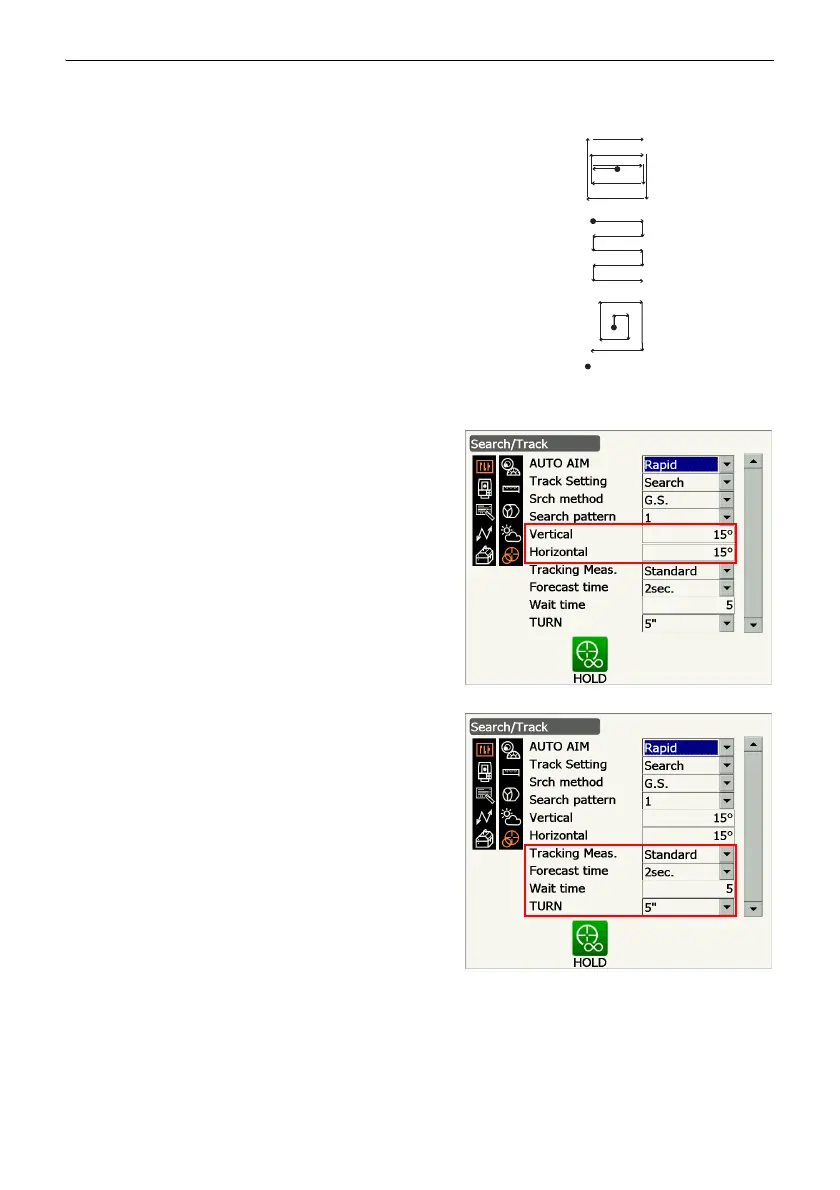

3. Set the area in which to perform target sighting in
"Vertical" and "Horizontal".
Items set and options
(5) Vertical
(6) Horizontal
4. Set the items regarding instrument actions
when the target is "lost", the tolerance range
for setting accuracy etc.
Items set and options
(7) Tracking Meas.
Standard/Stop&Go
(8) Forecast time
0.5 sec./1 sec./2 sec./3 sec./4 sec./5 sec./Auto
(9) Wait time
0 to 3600 (sec.)
(10) TURN
3"/5"/10"/20"/30"/60"
• When setting "Wait time", [HOLD] is displayed.
Press [HOLD] to set "Wait time" to no limits.
" Lost Prism"
Ðáôôåòž
Ðáôôåòž
Ðáôôåòž
ºÓôáòôðïéîôæïòóåáò
