Topcon RM-8900 - Setting Communication Format

45
PREPARATIONS
2 Press the and move the cursor to “CL INPUT”.
3 Press the and choose:
NO (no receiving);
OLD (OLD RS232C format);
NEW (NEW RS232C format);
STD1 (STD1 RS232C format);
R-ID (receives patient No. via RS232C input port for processing as real ID); or
W-ID (receives patient No. via RS232C input port for processing as work ID).
4 Press the , and the cursor goes to the next item.

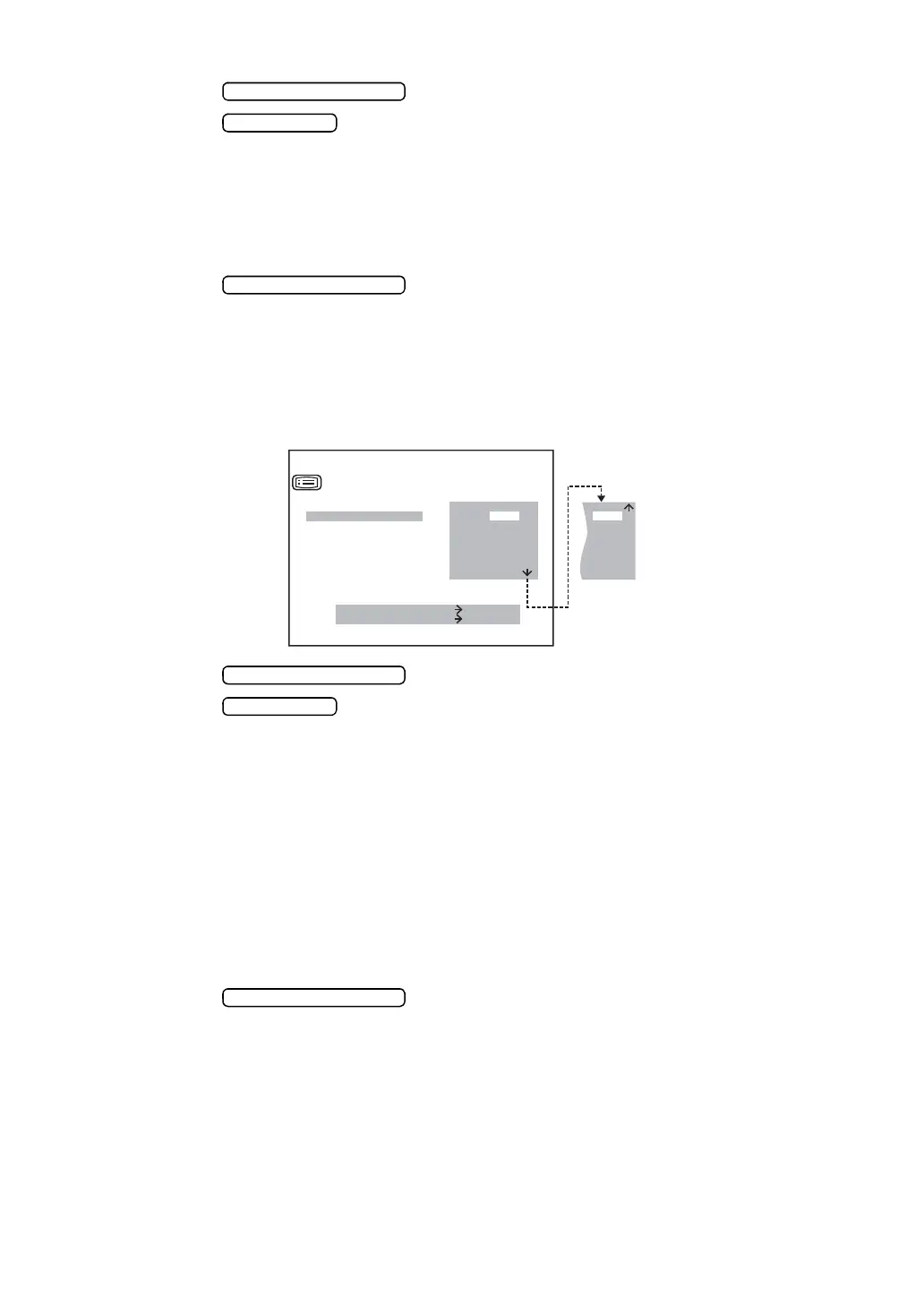

SETTING COMMUNICATION FORMAT
The communication format can be set. Before shipment, it is set to “OLD” (old TOPCON
format).
1 In the “INITIAL MENU SCREEN”, choose “ON-LINE” and get the “ON-LINE SCREEN”.
2 Press the and move the cursor to “DATA FORMAT”.
3 Press the and choose:
OLD (OLD Topcon format);
NEW (NEW Topcon format);
STD1 (TOPCON STD1 format,from RS232C OUT);
STD2 (TOPCON STD2 format,from RS232C OUT);
ALL (tool mode);
CM1 (custom specification);
CM2 (custom specification);
CM3 (custom specification);
CM4 (custom specification);
CM5 (custom specification);
USB1 (USB OUT TOPCON STD1 format); or
USB2 (USB OUT TOPCON STD2 format);
4 Press the , and the cursor goes to the next item.
