9

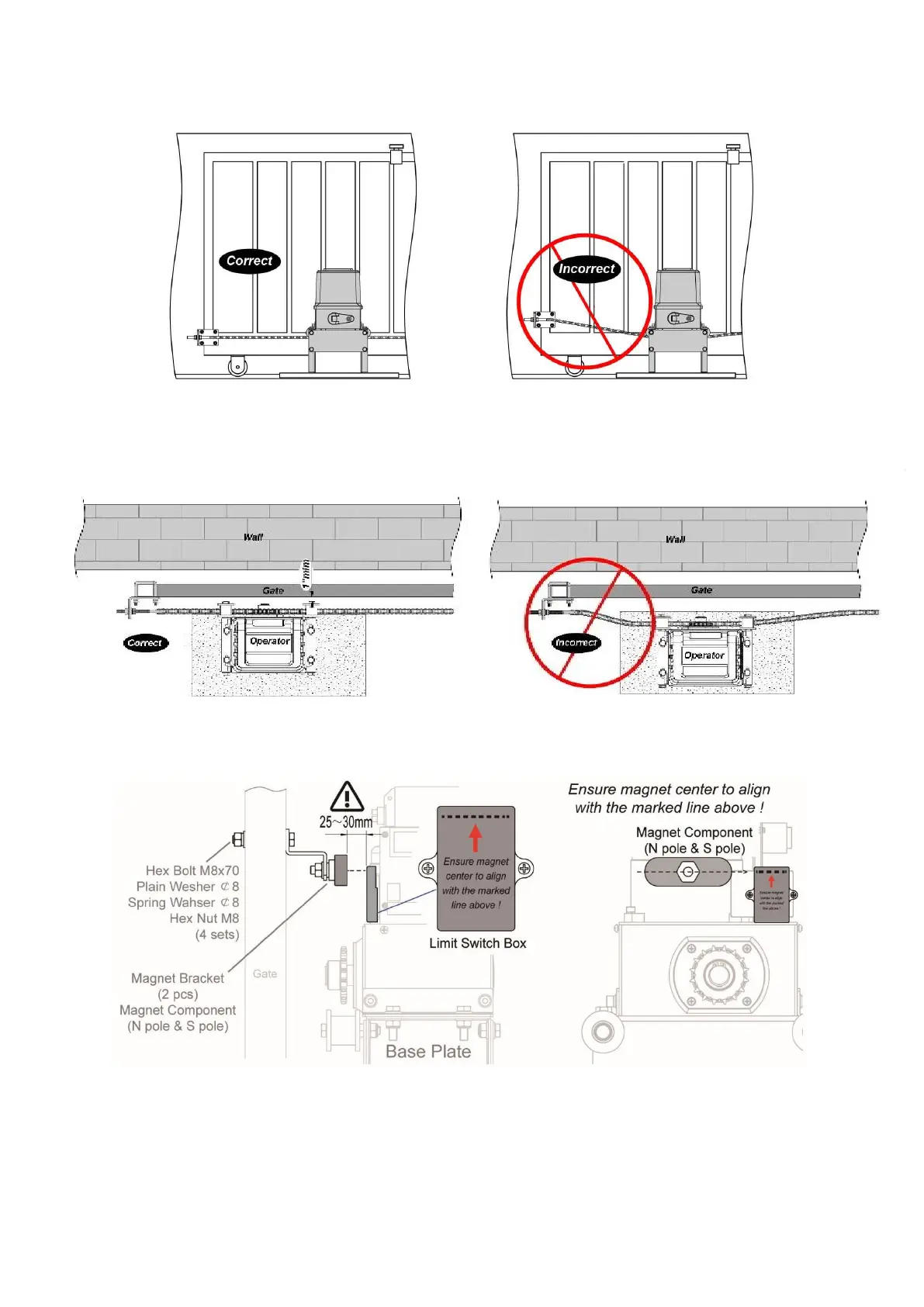

6). The chain brackets must be mounted to the same height as the chain on the idler wheels.
7). Make sure there is 1” distance at least between the wheel cover and the gate after you position the base
plate.
Installation of the Magnets
Before install limit switch, make sure the gate opener is put in manual operation. (the clutch connected with
gear shaft is disengaged) and the mains power supply is disconnected. Position the two Magnet
Components approximately on the gate and move the gate by hand to fix them in place.
Fit magnets bracket
Push the gate fully closed by hand. Locate and install the magnet bracket so that the opener will stop at the
