Topens KD702 - Gate Opener Installation Checks; Clearance and Binding Checks; Pull-to-Open Final Securing

8

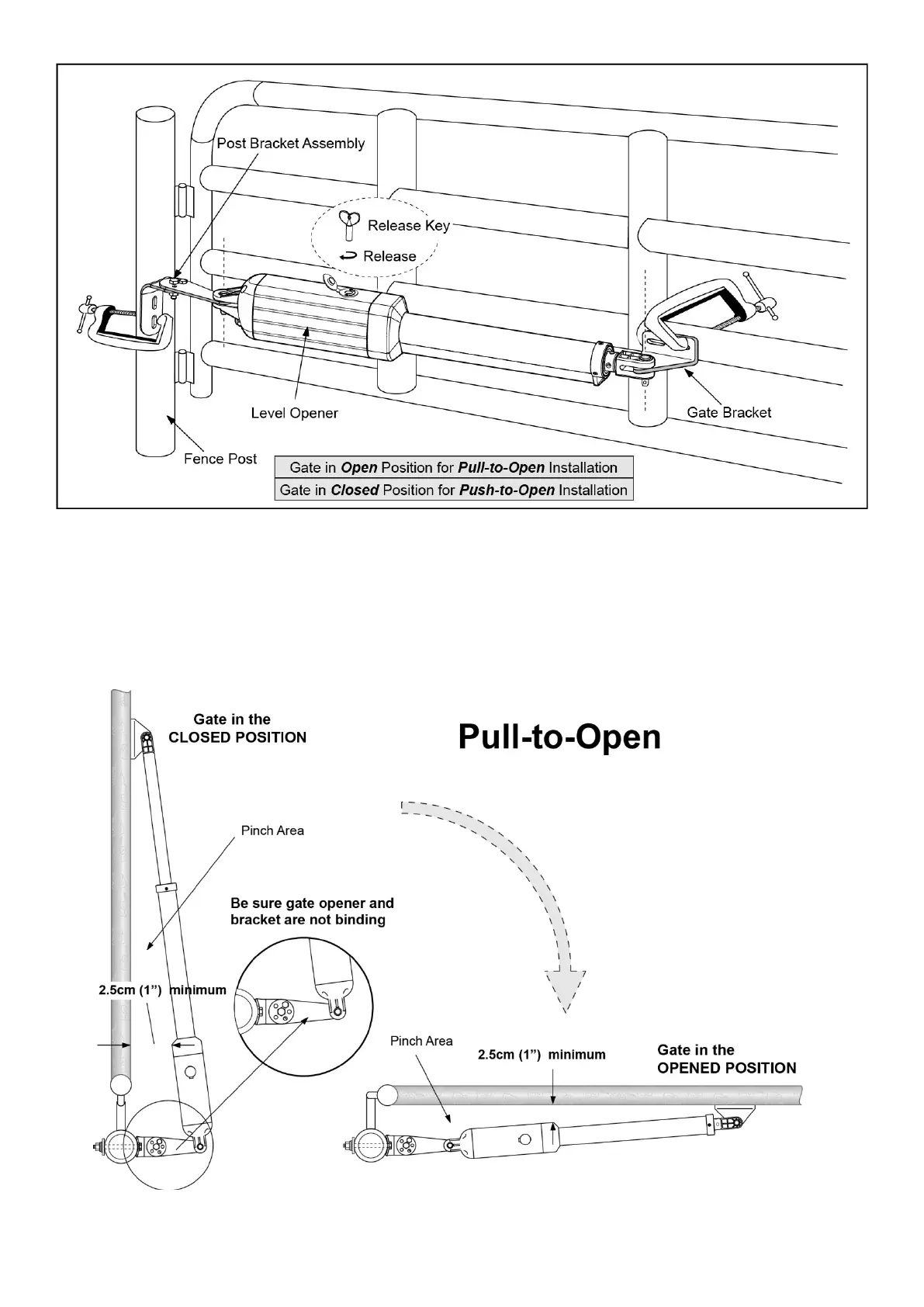

5. Make sure that there is a minimum clearance of 2.5cm between the gate and the opener and that the opener
and the Post Pivot Bracket are not binding in both the gate-open and gate-closed positions. If there is not at
least 2.5cm of clearance or if the opener and the Post Pivot Bracket are binding, rotate the Post Pivot Bracket
and/or move the Post Bracket Assembly to obtain the minimum clearance and eliminate the binding. When the
minimum clearance has been obtained and any binding has been eliminated, place the M8 x 30 bolt through the
aligned holes in the Post Bracket and the Post Pivot Bracket.
