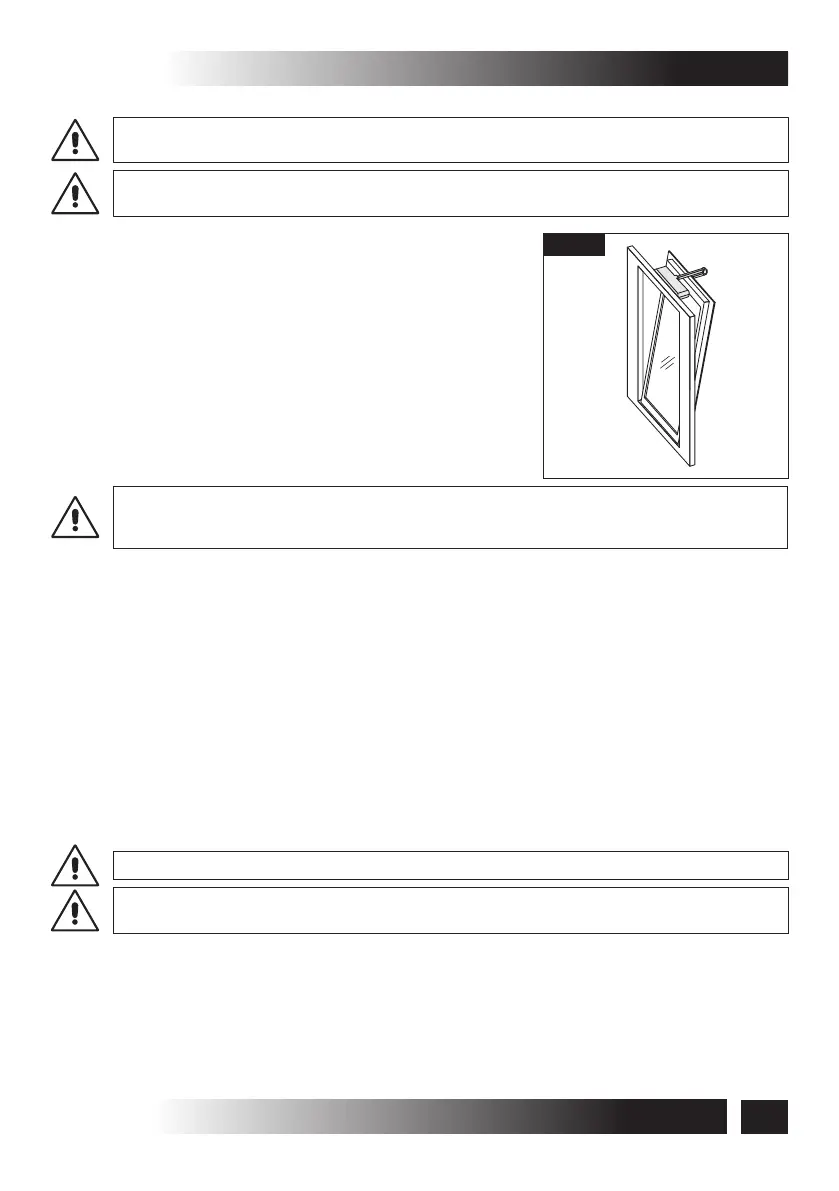

Fig. 9

C20

VER.0.0

REV.09.13

INSTALLATION AND USE ISTRUCTIONS

INSTALLATION -5

THE STROKE SELECTION HAS TO BE CARRIED OUT WITH SWITCHED OFF ACTUATOR

ONLY BY COMPETENT AND QUALIFIED TECHNICAL PERSONNEL.

FOR A CORRECT ADJUSTMENT OF THE WINDOW FRAME CLOSING SEE THE

INDICATIONS GIVEN IN PAR. 5.7.

5.3- BOTTOM HUNG WINDOWS

(Fig. 9 and Fig. 28 ÷ 41)

1) Open the package (par. 3.7) and extract the various

components;

2) Fig. 28- With a pencil draw the centre line “Y” of the

window frame;

3) Fig. 29- Apply the adhesive template (Ref. 1) on the

window frame aligning it with the previously drawn

centre line “Y”;

CAUTION: FOR NON-COPLANAR WINDOW FRAMES, IT IS NECESSARY TO CUT THE

ADHESIVE TEMPLATE CONCERNED PART AND TO APPLY IT ON THE WINDOW FRAME

PAYING ATTENTION TO KEEP IT IN THE SAME REFERENCE POSITION.

4) Fig. 30- With a suitable drill, create on the window frame holes having the related

diameter, given on the adhesive template;

5) Fig. 31÷33- With the suitable screws tighten the brackets for window frame

connection (right - left) and the bottom hung opening bracket;

6) Fig. 34/35- After having connected the electric connector in the actuator, perform the

electric connections according to the provisions of par. 5.5, as well as with reference

to the wiring diagram. Let the chain come out for at least 5 cm of stroke, then

disconnect the connector;

7) Fig. 36- Connect the chain end to the bottom hung bracket;

8) Fig. 37- Fasten the actuator to the brackets for connection to the window frame using

the suitable screws;

VERIFY IN Fig. 7b THE CORRECT FASTENING POSITIONING OF THE ACTUATOR.

VERIFY THAT AFTER THE TIGHTENING THE CONNECTION BRACKETS TO THE WINDOW

FRAME ADHERE TO THE ACTUATOR IN ORDER TO ASSURE A CORRECT APPLICATION.

9) Fig. 37- Select the wished stroke (I= 240 mm - II= 360 mm) using the switch (Ref. 1)

located on one side of the actuator. The actuator is supplied with a stroke set on

240 mm;
