3.1- RATING PLATE AND “CE” MARKING
The “CE” marking certifies the compliance of the machine with the essential safety and
health requirements foreseen by the product European Directives.
The rating plate is an adhesive plate in polyester, silk-screen printed in black, having the
following size: L=36 mm - H=50 mm.
It is applied externally on the actuator. The plate (Fig. 1) bears in readable and indelible
way the following data:
• logo and address of the manufacturer
• type and model
• voltage and intensity of power supply (V - A)
• absorbed electric power P (W)
• thrust and tractive force F (N)
• type of service S (min)
2
• idle translation speed (mm/s)
• protection degree (IP)
• “CE” marking
• symbol of WEEE Directive 2002/96/CE
• symbol of double insulation (only for mod. C20/230V)
• serial number
7
C20
VER.0.0
REV.09.13
INSTALLATION AND USE ISTRUCTIONS
TECHNICAL DESCRIPTION -3

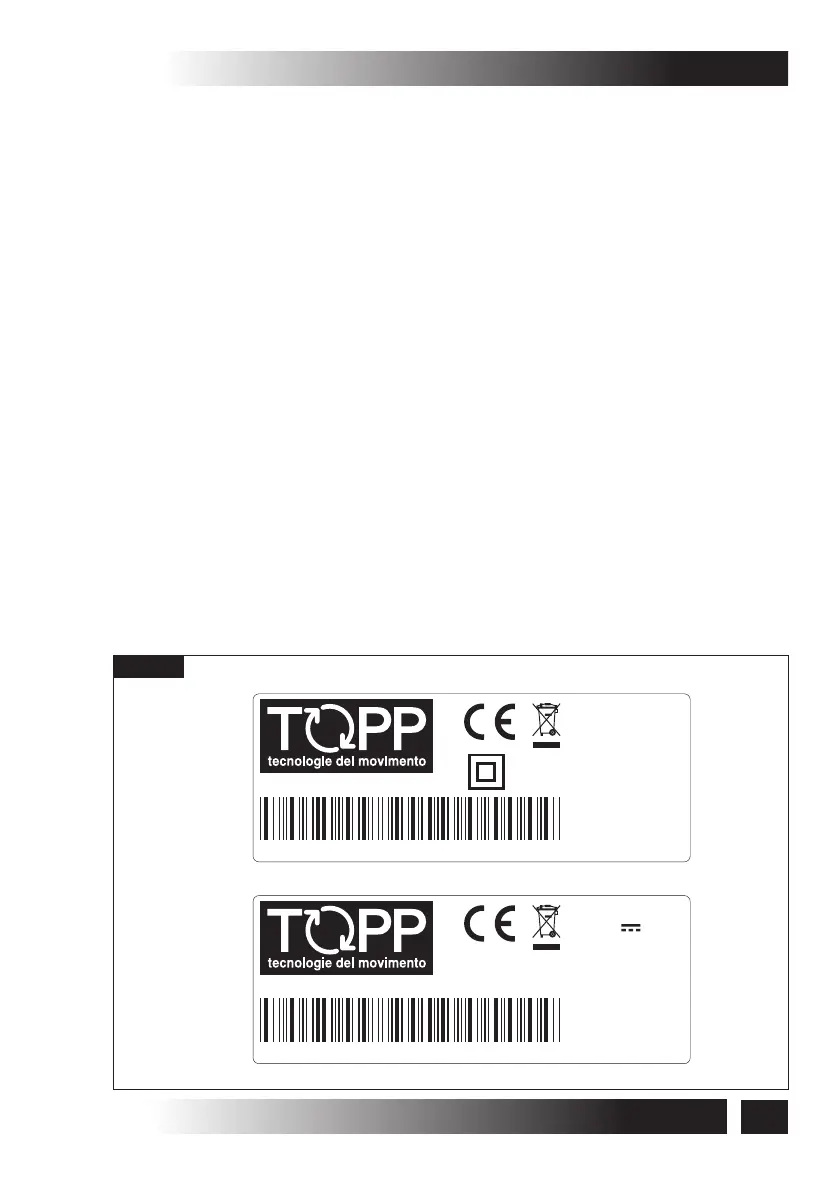

Fig. 1
Sandrigo - made in Italy
N:0910TA12000
C20
230V~ 50Hz
I = 0,12A
P = 25W
F = 300N
S2 = 4min
8 mm/s
IP30
Sandrigo - made in Italy
N:0910TA12000
C20
24V
I = 0,43A
P = 9W
F = 300N
S2 = 4min
7,5 mm/s
IP30
