5.8- EMERGENCY PROCEDURES
Should it be necessary to close the window manually, due to power supply failure or
mechanism block, follow these instructions:
BEFORE PERFORMING ANY TYPE OF TRIPPING ON THE ACTUATOR AND ON THE
WINDOW, IT IS COMPULSORY TO DISCONNECT THE POWER SUPPLY OF THE
ACTUATOR AND TO PUT ON “0” THE EVENTUAL SWITCHES OF THE CONTROL
DEVICES.
IT IS COMPULSORY TO PADLOCK THE MAIN SWITCH OF THE DISCONNECTION DEVICE
INSTALLED ON THE MAINS IN ORDER TO AVOID ANY UNEXPECTED START. IF THE MAIN
SWITCH CANNOT BE PADLOCKED, IT IS COMPULSORY TO PLACE A SIGN FORBIDDING
THE ENABLING.

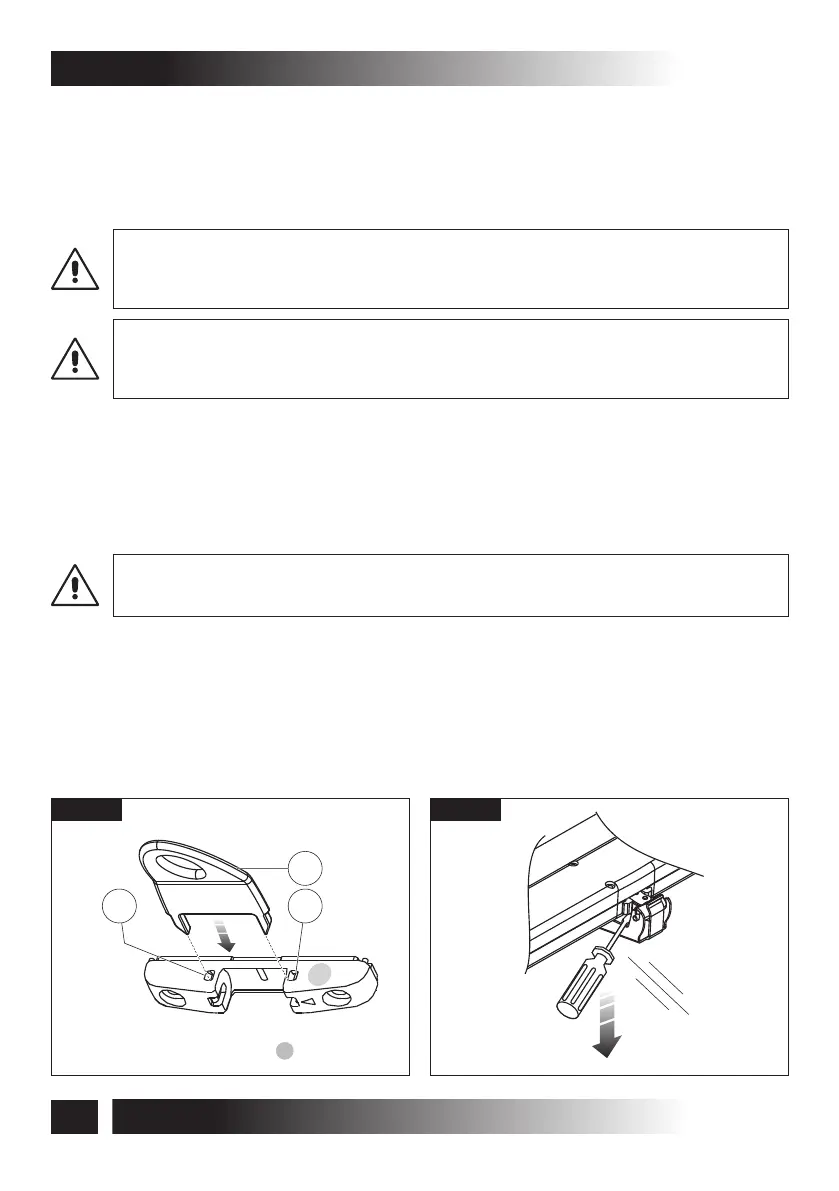

• Top hung: Fig. 12- Insert the release tool (Ref. 1) in the openings (Ref. 2) as shown in
figure, disconnect the chain end from the ARS coupling and extract the actuator;
• Bottom hung opening: Fig. 13- Insert a screwdriver between the bottom hung
opening bracket and the chain end, then lever until the chain end is released from the
above mentioned bracket.
SHOULD IT BE IMPOSSIBLE TO CARRY OUT THE ABOVE MENTIONED MANOEUVRES,
EXTRACT THE ACTUATOR FROM THE BRACKETS PROVIDING CONNECTION TO THE
FRAME BY UNSCREWING THE PROPER SCREWS.
Fig. 13Fig. 12
