Fig.10
22
C20
VER.0.0
REV.09.13
INSTALLATION AND USE INSTRUCTIONS
5- INSTALLATION
TO CHANGE THE PRE-SET STROKE, USE A SCREWDRIVER (FIG. 37) WITH SUITABLE
TIP. MAKE SURE TO INSERT THE TIP UP TO THE MICROSWITCH BASE AND TO SHIFT IT
COMPLETELY. AN INCORRECT IN-BETWEEN POSITION STALLS THE ACTUATOR.
10) Fig. 34- Insert the electric connector;
THE STROKE SELECTION HAS TO BE CARRIED OUT WITH SWITCHED OFF ACTUATOR
ONLY BY COMPETENT AND QUALIFIED TECHNICAL PERSONNEL.
FOR A CORRECT ADJUSTMENT OF THE WINDOW FRAME CLOSING SEE THE
INDICATIONS GIVEN IN PAR. 5.7.

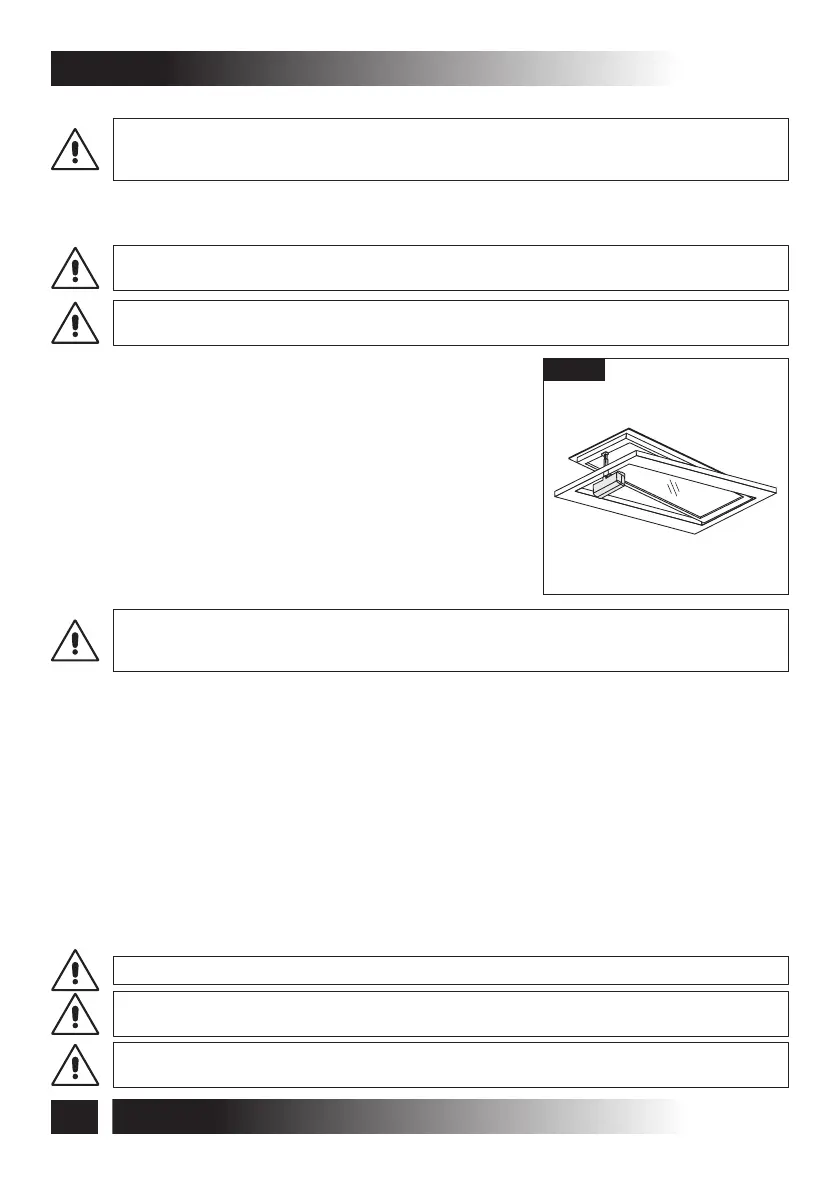

5.4- DOME WINDOWS
(Fig. 10 and Fig. 38 ÷ 49)
1) Open the package (par. 3.7) and extract the various
components;
2) Fig. 38- With a pencil draw the centre line “Z” of the
window frame;
3) Fig. 39- Apply the adhesive template (Ref. 1) on the
window frame aligning it with the previously drawn
centre line “Z”;
CAUTION: FOR NON-COPLANAR WINDOW FRAMES, IT IS NECESSARY TO CUT THE
ADHESIVE TEMPLATE CONCERNED PART AND TO APPLY IT ON THE WINDOW FRAME
PAYING ATTENTION TO KEEP IT IN THE SAME REFERENCE POSITION.
4) Fig. 40- With a suitable drill, create on the window frame holes having the related
diameter, given on the adhesive template;
5) Fig. 41 ÷ 46- With the suitable screws, fasten the brackets for vertical assembly
(Ref. A or Ref. B), the quick coupling and eventually the hole covering plate
(Fig. 44 -Ref. 1);
6) Fig. 47/48- After having connected the electric connector in the actuator, perform the
electric connections according to the provisions of par. 5.5, as well as with reference
to the wiring diagram. Let the chain come out for at least 5 cm of stroke, then
disconnect the connector;
7) Fig. 48- Connect the chain end to the quick coupling;
8) Fig. 49- Fasten the actuator to the brackets for vertical assembly (Ref. A or Ref. B)
using the suitable screws;
VERIFY IN Fig. 7c THE CORRECT FASTENING POSITIONING OF THE ACTUATOR.
MAKE SURE THAT THE GREEN LABEL LOCATED ON THE QUICK COUPLING
CORRESPONDS TO THE SAME LABEL ON THE ACTUATOR.
VERIFY THAT AFTER THE TIGHTENING THE CONNECTION BRACKETS TO THE WINDOW
FRAME ADHERE TO THE ACTUATOR IN ORDER TO ASSURE A CORRECT APPLICATION.
