9.3 - QUICK COUPLING WITH INTEGRATED RELEASE PUSH-BUTTON
”ARP”
This connection allows the application in case of top hung and dome assemblies.
Unlike the quick coupling to the frame (ARS) inserted in the standard supply, the ARP is
equipped with a push-button (Fig. 16 - Ref. 1) for the quick release in case of
emergency manoeuvres.
9.3.1- DOME WINDOWS
(Fig. 16 ÷ 18, Fig. 10)
Follow the procedure described in par. 5.4 up to Fig. 42, and then correctly position
the ARP coupling on the frame as shown in Fig. 17.

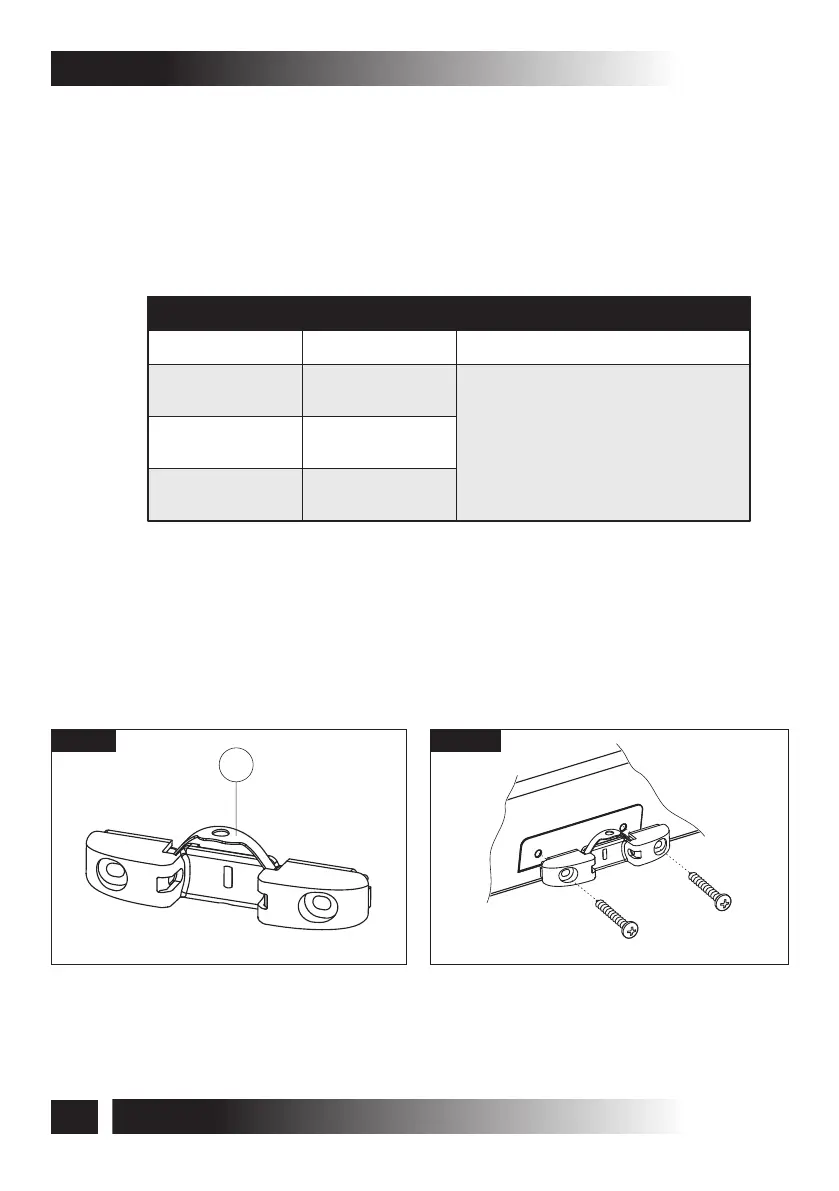

Fig. 16
1
Fig. 17
30
9- SPARE PARTS AND ACCESSORIES UPON REQUEST C20
VER.0.0
REV.09.13
INSTALLATION AND USE ISTRUCTIONS
Use 4,2 x 19 mm screws
CODE COLOUR TYPE OF APPLICATION
CODES TO ORDER THE ARP
DOME/SKYLIGHT
(Vertical assembly application)
1UA010
1UA011
1UA012
Black
White
Grey
