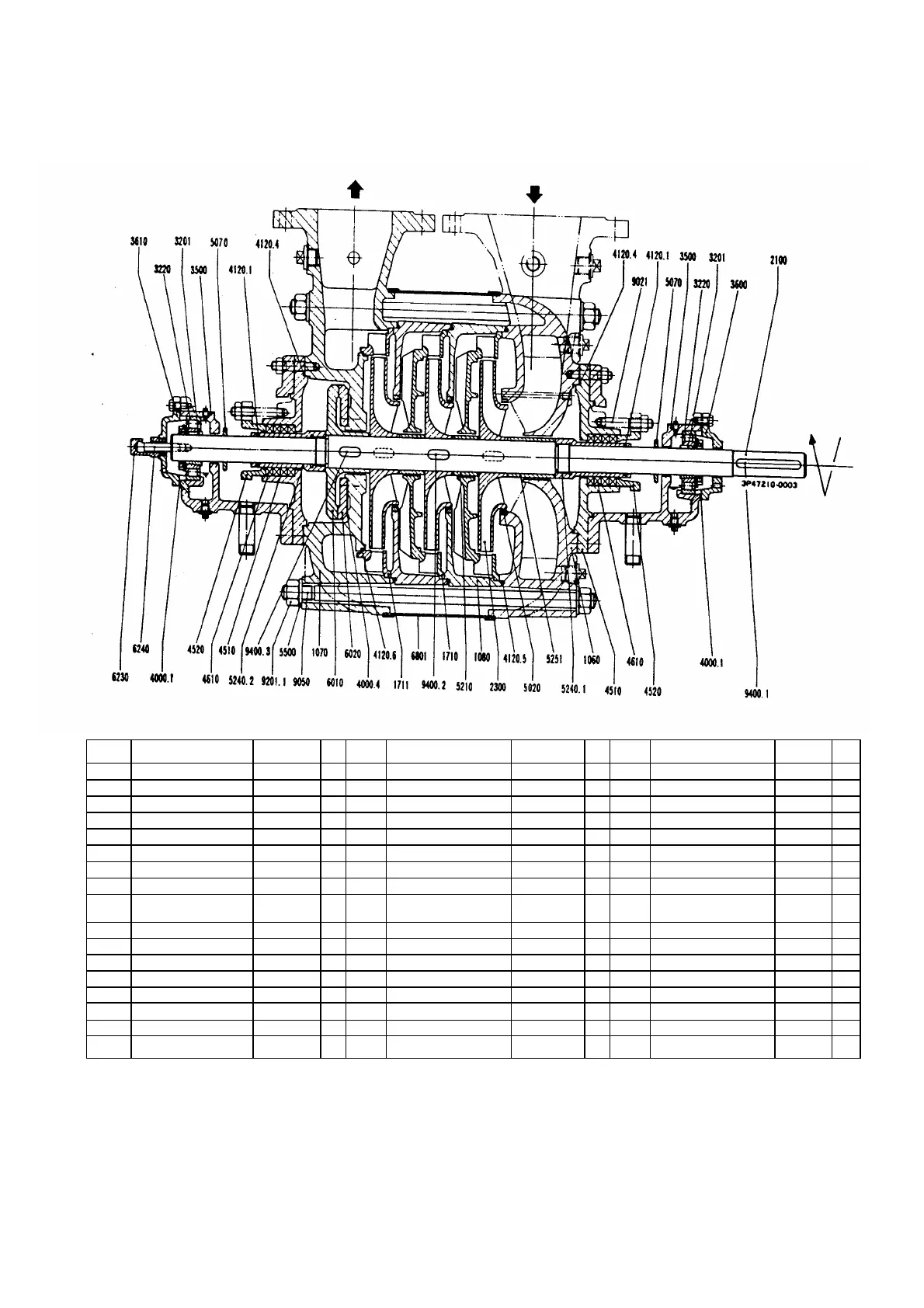

Torishima Pump MML - Page 32

Size MML 80, 100, 125
Stuffing box housing : Type N
No. Name Material Pcs No Name Material Pcs No. Name Material Pcs
1060 Suction casing 1 4120.6 O-ring ASBESTOS 1 9050 Tie bolt S C M 3 8
1070 Discharge casing 1 4510 Stuffing box housing 2 9201.1 Hexagonal nut S 45 C 16
1080 Stage casing 4520 Stuffing box gland 2 9400.1 Key S 45 C 1
1710 Diffuser 4610 Stuffing box packing TOMBO 3300 8 9400.2 Key S 45 C
1711 Diffuser last stage 1 5020 Casing wear ring 9400.3 Key S 45 C 1
2100 Shaft 1 5070 Deflector S 35 C 2
2300 Impeller 5210 Stage sleeve
3201 Clamping sleeve SS 400 2 5240.1 Shaft protecting sleeve 1
3220 Cylindrical roler bearing NU KC3
+H
2 5240.2 Shaft protecting sleve 1
3500 Bearing housing FC 200 2 5251 Spacer sleeve 1
3600 Bearing cover FC 200 1 5500 Washer SS 400 16
3610 Bearing end cover FC 200 1 6010 Balance disc 1
4000.1 Flat gasket TOMBO 1630 2 6020 Balance disc. Seat 1
4000.4 Flat gasket TOMBO 1900 1 6230 Rotor position indicator BSBME 1 1
4120.1 O-ring N B R 2 6240 Pivot for indicator S 30 C 1
4120.4 O-ring N B R 2 6801 Cladding S P C C 1
4120.5 O-ring N B R 9021 Stud SUS 420J2 4
