Torishima Pump MML - Page 33

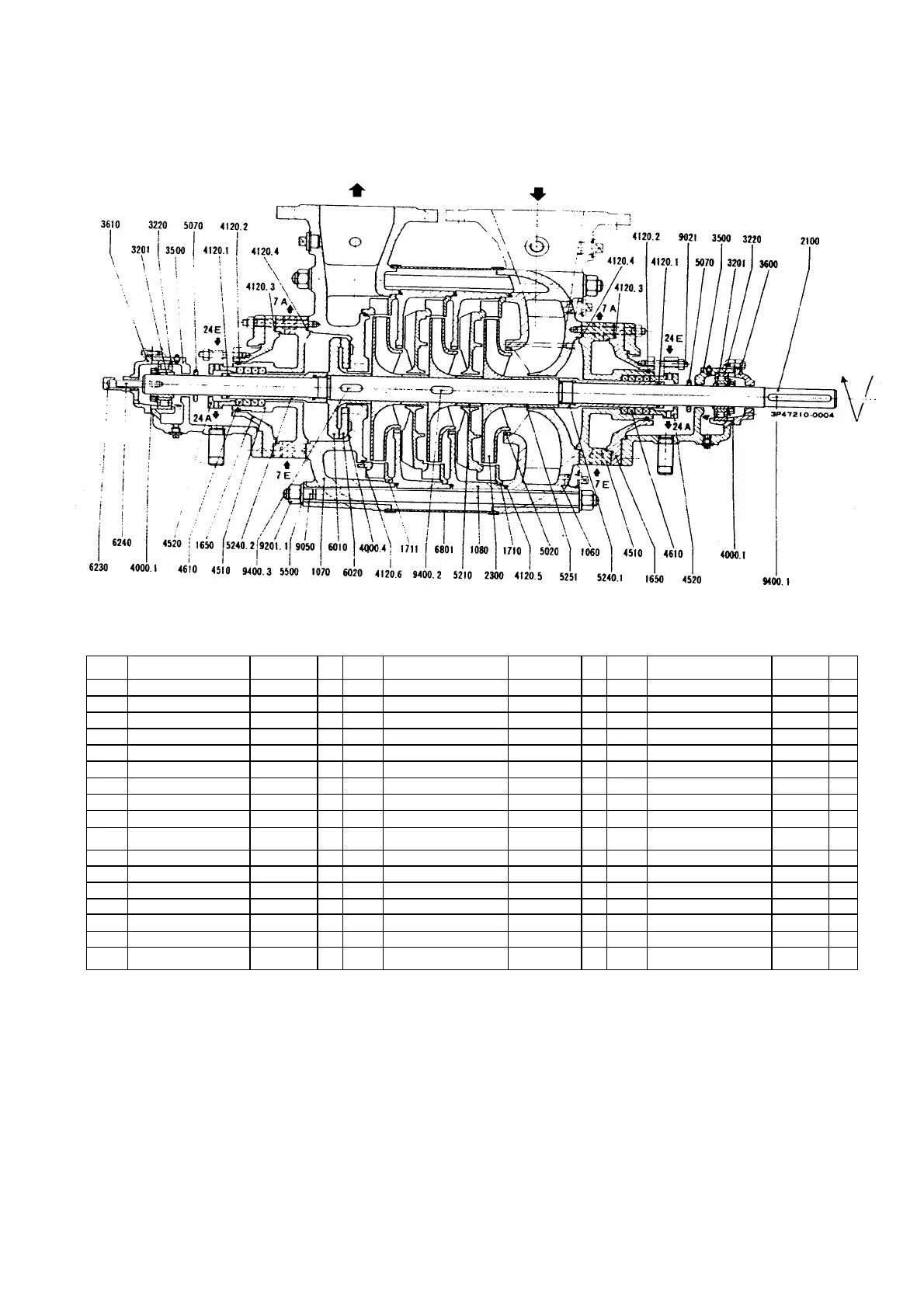

Size MML 80, 100, 125
Stuffing box housing : Type HW
7E : Cooling water inlet 24E : Quenching inlet
7A : Cooling water outlet 24A : Quenching outlet
No. Name Material Pcs No Name Material Pcs No. Name Material Pcs
1060 Suction casing FC 250 1 4120.3 O-ring N B R 2 6240 Pivot for indicator SS 40 1
1070 Discharge casing FC 250 1 4120.4 O-ring VITON 2 6801 Cladding S P C C 1
1080 Stage casing FC 250 4120.5 O-ring VITON 9021 Stud SUS 420 J2 4
1650 Cooling cover FC 200 2 4120.6 O-ring ASBESTOS 1 9050 Tie bolt S C M 3 8
1710 Diffuser FC 200 4510 Stuffing box housing FC 250 2 9201.1 Hexagonal nut S 45 C 16
1711 Diffuser last stage FC 200 1 4520 Stuffing box gland FC 200 2 9050.1 Key S 45 C 1
2100 Shaft S 45 C 1 4610 Stuffing box packing TOMBO 3300 8 9400.2 Key S 45 C
2300 Impeller FC 200 5020 Casing wear ring FC 200 9400.3 Key S 45 C 1
3201 Clamping sleeve SS 400 2 5070 Deflector S 35 C 2
3220 Cylindrical roler bearing NU KC3
+H
2 5210 Stage sleeve FC 200
3500 Bearing housing FC 200 2 5240.1 Shaft protecting sleeve FC 200 1
3600 Bearing cover FC 200 1 5240.2 Shaft protecting sleve FC 200 1
3610 Bearing end cover FC 200 1 5251 Spacer sleeve FC 200 1
4000.1 Flat gasket TOMBO 1630 2 5500 Washer SS 400 16
4000.4 Flat gasket TOMBO 1900 1 6010 Balance disc FC 200 1
4120.1 O-ring VITON 2 6020 Balance disc. Seat FC 200 1
4120.2 O-ring N B R 2 6230 Rotor position indicator BSBME 1 1
- 30 -
