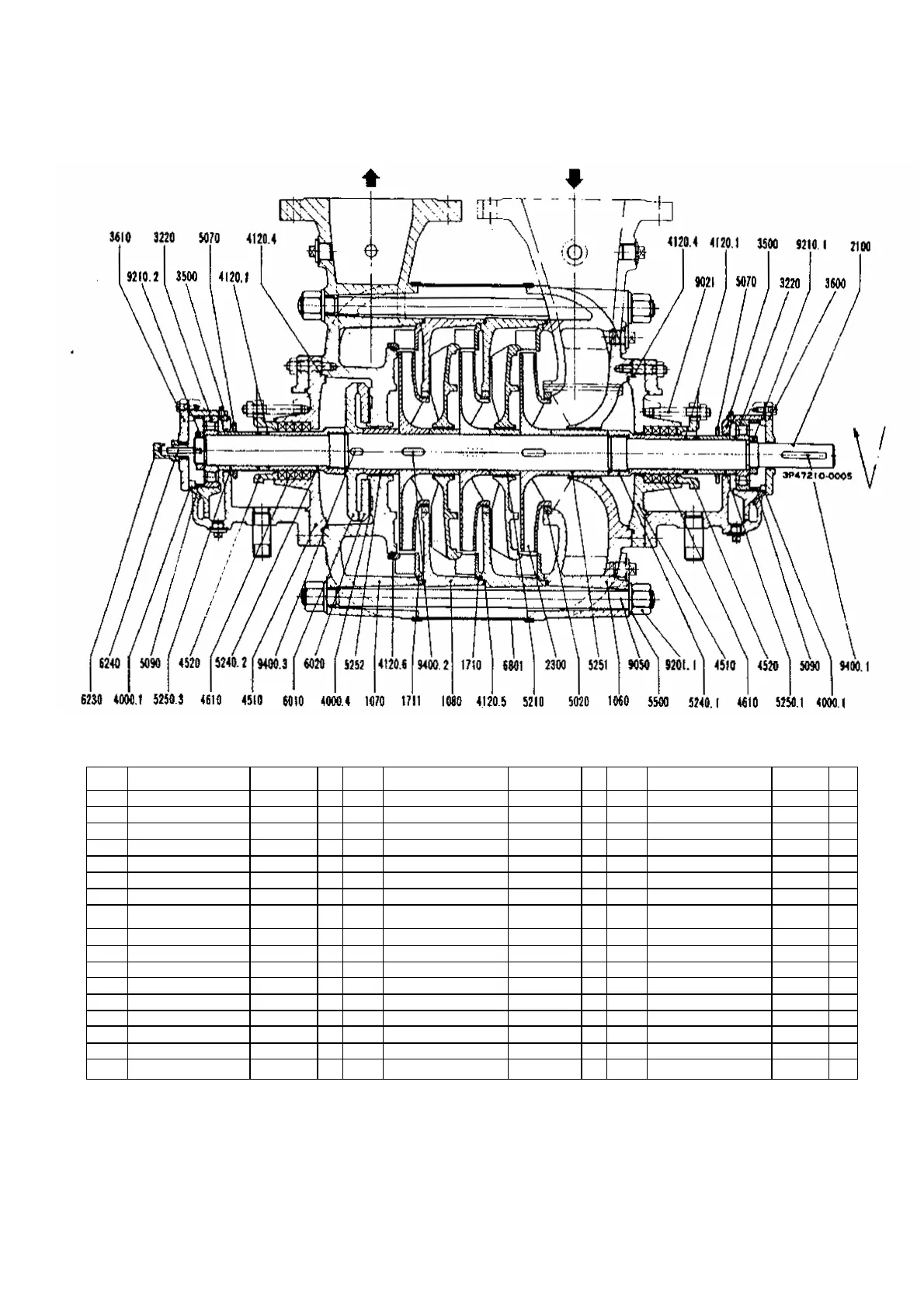

Size MML 150
Stuffing box housing : Type N
No.
Name
Material
Pcs
No
Name
Material
Pcs
No.
Name
Material
Pcs
1060 Suction casing 1 4510 Stuffing box housing 2 6240 Pivot for indicator S 30 C 1
1070 Discharge casing 1 4520 Stuffing box gland 2 6801 Cladding S P C C 1
1080 Stage casing 4610 Stuffing box packing TOMBO 3300 8 9021 Stud SUS 420 J2 4
1710 Diffuser 5020 Casing wear ring 9050 Tie bolt S C M 3 8
1711 Diffuser last stage 1 5070 Deflector S 35 C 2 9201.1 Hexagonal nut SUS 420 J2 16
2100 Shaft 1 5090 Spacer ring FC 200 2 9210.1 Nut SUS 420 J2 1
2300 Impeller 5210 Stage sleeve 9400.1 Nut S 45 C 1
3220 Cylindrical roler bearing NU 410 C3 2 5240.1 Shaft protecting sleeve 1 9400.2 Key S 45 C
3500 Bearing housing FC 200 2 5240.2 Shaft protecting sleeve 1 9400.3 Key S 45 C 1
3600 Bearing cover FC 200 1 5250.1 Spacer sleeve 1
3610 Bearing end cover FC 200 1 5250.3 Spacer sleeve 1
4000.1 Flat gasket TOMBO 1630 2 5251 Spacer sleeve 1
4000.4 Flat gasket TOMBO 1900 1 5252 Spacer sleeve 1
4120.1 O-ring N B R 4 5500 Washer SS 400 16
4120.4 O-ring N B R 2 6010 Balance disc 1
4120.5 O-ring N B R 6020 Balance disc. Seat 1
4120.6 O-ring ASBESTOS 1 6230 Rotor position indicator BSBME 1 1
- 31 -
