Torishima Pump MML - Page 35

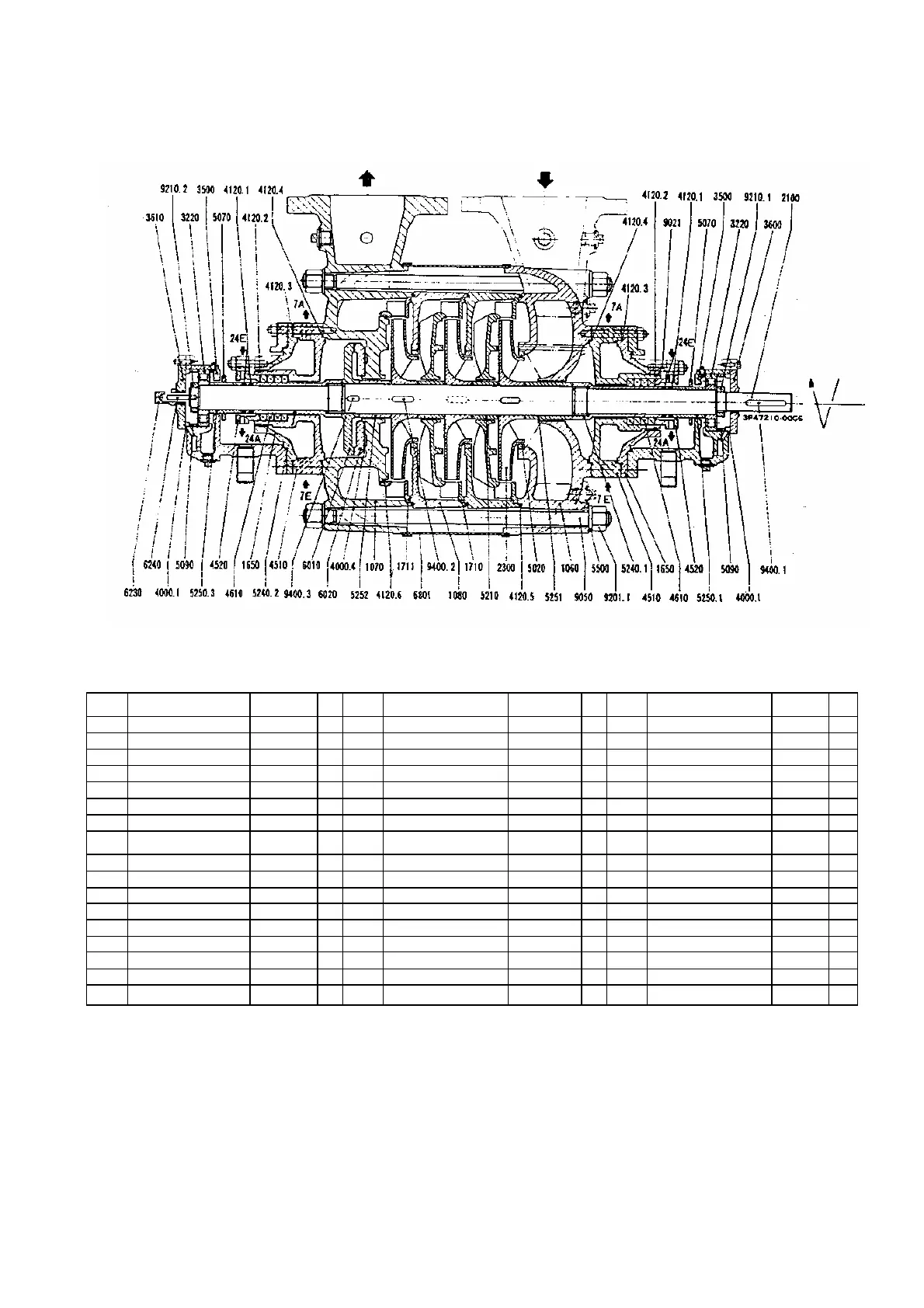

Size MML 150
Stuffing box housing : Type HW
7E : Cooling water inlet 24E : Quenching inlet
7A : Cooling water outlet 24A : Quenching outlet
No. Name Material Pcs No Name Material Pcs No. Name Material Pcs
1060 Suction casing FC 250 1 420.4 O-ring VITON 2 6010 Balance disc 1
1070 Discharge casing FC 250 1 4120.5 O-ring VITON 6020 Balance disc seat 1
1080 Stage casing FC 250 4120.6 O-ring ASBESTOS 1 6230 Rotor position indicator 1
1650 Coolng cover FC 200 2 4510 Stuffing box housing FC 250 2 6240 Pivot for indicator 1
1710 Diffuser FC 200 4520 Stuffing box gland FC 200 2 6801 Cladding 1
1711 Diffuser last stage FC 200 1 4610 Stuffing box packing TOMBO 3300 8 9021 Stud 4
2100 Shaft S 45 C 1 5020 Casing wear ring FC 200 9050 Tie bolt 8
2300 Impeller FC 200 5070 Deflector S 35 C 2 9201.1 Hxagonal nut 16
3220 Cylindrical roler bearing XU 410 C3 2 5090 Spacer ring FC 200 2 9210.1 Nut 1
3500 Bearing housing FC 200 2 5210 Stage sleeve FC 200 9210.2 Nut 1
3600 Bearing cover FC 200 1 5240.1 Shaft protecting sleeve FC 200 1 9400.1 Key 1
3610 Bearing end cover FC 200 1 5240.2 Shaft protecting sleeve FC 200 1 9400.2 Key
4000.1 Flat gasket TOMBO 1630 2 5250.1 Spacer sleeve FC 200 1 9400.3 Key 1
4000.4 Flat gasket TOMBO 1900 1 5250.3 Spacer sleeve FC 200 1
4120.1 O-ring VITON 4 5251 Spacer sleeve FC 200 1
4120.2 O-ring N B R 2 5252 Spacer sleeve FC 200 1
4120.3 O-ring N B R 2 5500 Washer SS 400 16
- 32 -
