12
Donaldson Company, Inc. © 1995

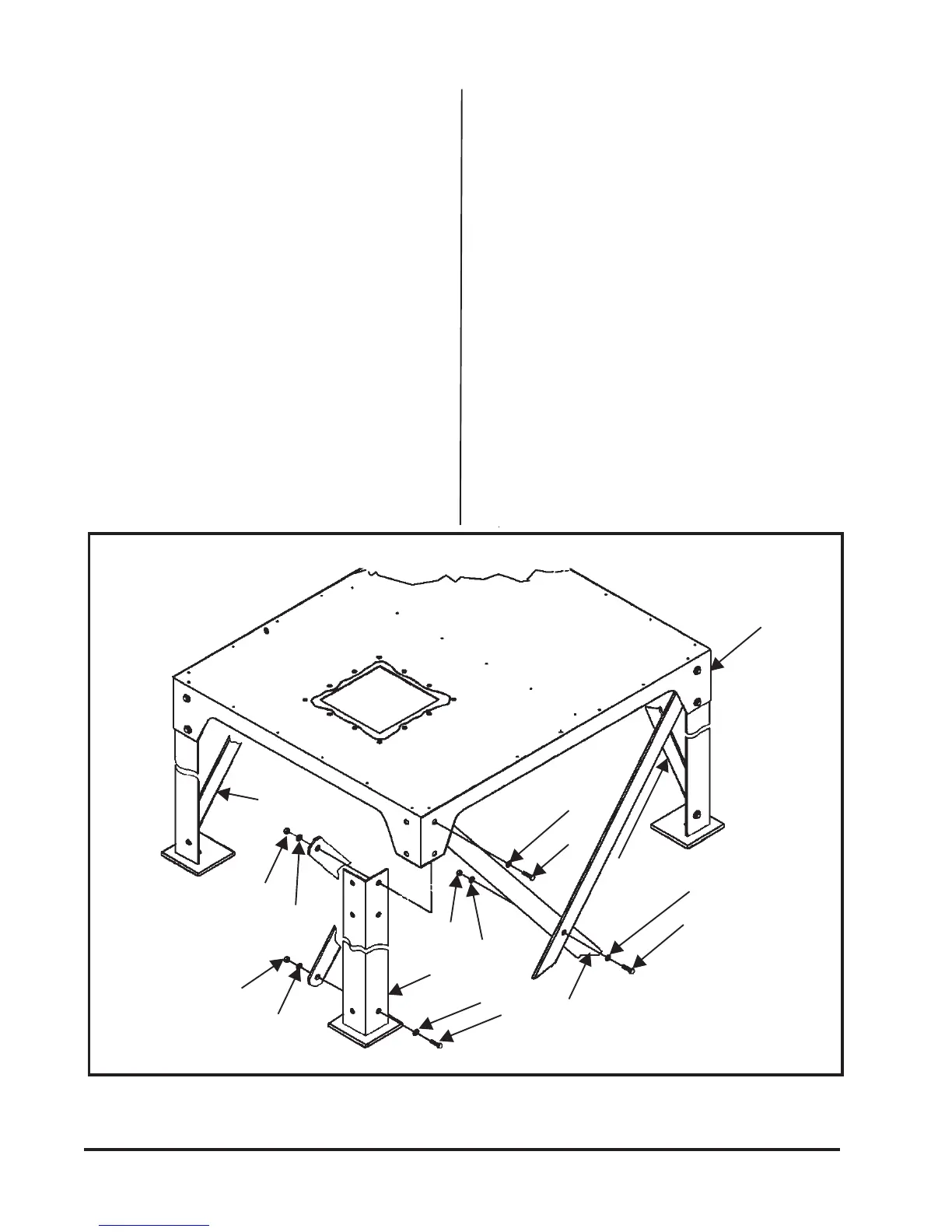

Figure 9
Leg Pack SDF
SDF Base
Crossbrace
Washer
Bolt
Crossbracing
Washer
Bolt
Washer
Nut
Washer
Bolt
Washer
Nut
Leg
Crossbrace
Washer
Nut
2.5.6 Adapter HEPA / Activated Carbon
(See Figure 8 Adapter Pack HEPA /
Activated Carbon)
Remove the lift lug on the cabinet top and
replace it with the set screw. Place the 3/16" x
1-1/4" gasket between the cabinet top and the
adapter. Attach the adapter to the cabinet using
the clamp hooks, wing nuts, and washers as
shown. Place the 1/4" x 3/4" gasket between the
adapter and the HEPA or Activated Carbon
filter as shown. Use the filter retainer bar and
the 1/4" bolts and washers to attach the filter to
the adapter. The sliding damper will not operate
with these adapters.
2.5.7 Leg Pack SDF
(See Figure 9 Leg Pack SDF)
The SDF units that are not furnished with a dust
container will have an internal hopper with a
base to attach to legs and crossbracing.
Assemble the legs and crossbracing to the SDF
base as shown in Figure 9 Leg Pack SDF. The
55-gallon drum pack leg crossbraces should be
installed on the three sides only, in order to
allow access to the drum. The 5-gallon pail pack
does not require crossbracing.
