Donaldson Company, Inc. © 1995

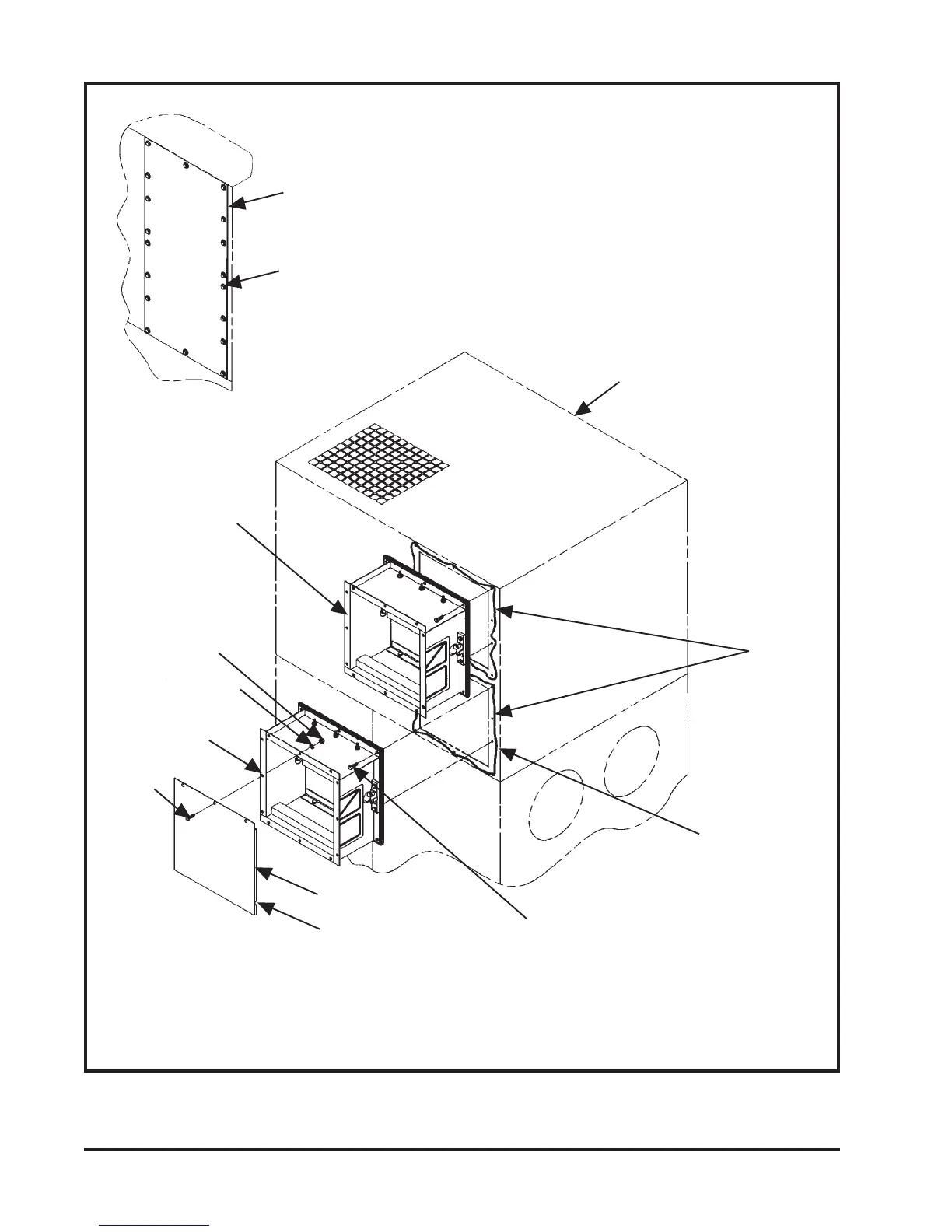

Figure 14
Explosion Vent Pack
Cabinet (Ref)
Silicone
Sealant
12 x 12
Weather Cover
1/4" Wide Tab
Use the bolts that are removed from the
cover plate in Detail A.
Tighten bolts only until vent flange
begins to deform. Do not overtighten.
Hex Bolt
12 x 12
Explosion Vent
Lock Washer
Hex Nut
12 x 12
Explosion Vent
Detail A
Remove cover plate.
Remove all bolts on cover plate and
save the bolts for attaching the
explosion vents to the cabinet.
See Detail A
