Torit Downflo SDF-2 - Figure 12 - Flex-Trunk Assembly 7-Foot;10-Foot SDF

Donaldson Company, Inc. © 1995
15

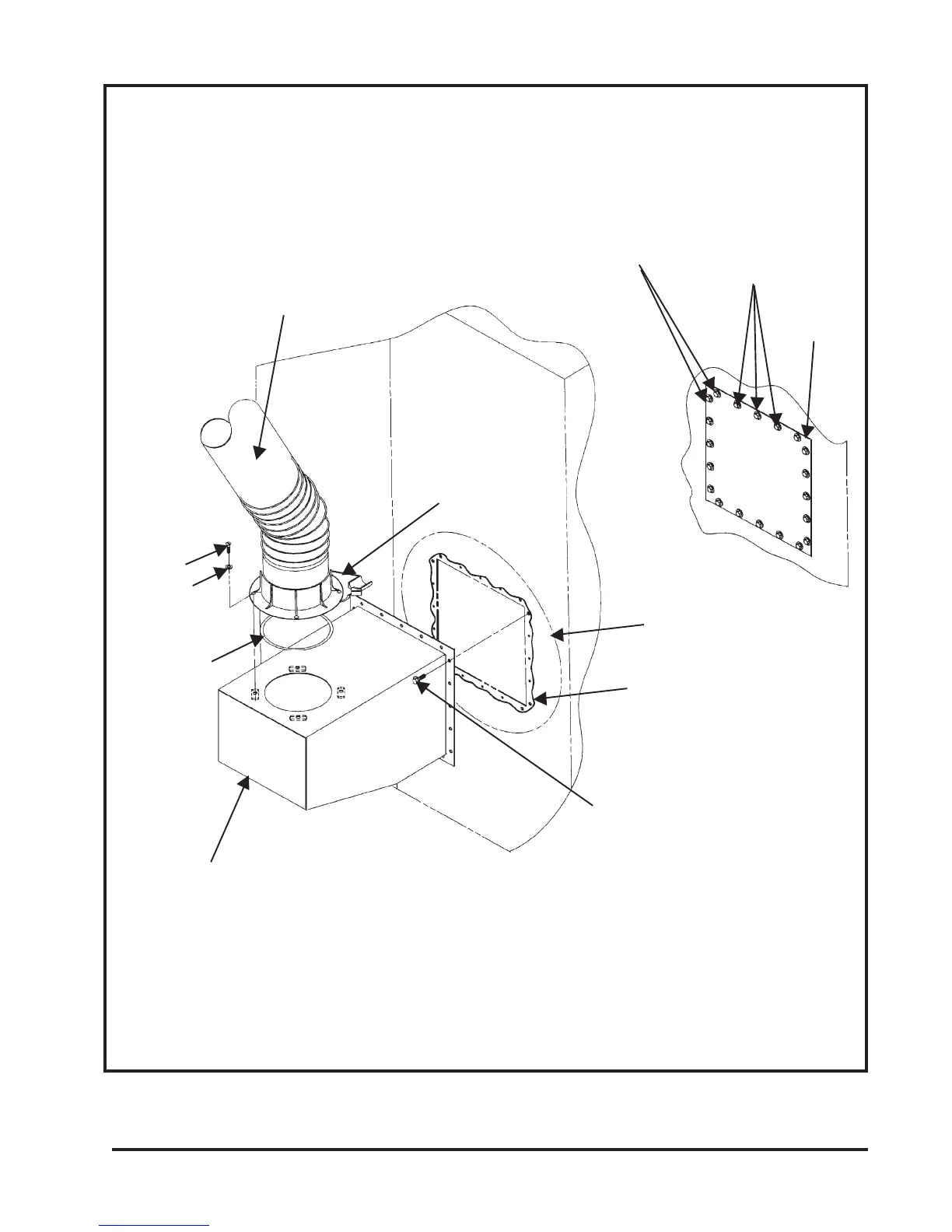

Figure 12
Flex-Trunk Assembly 7-Foot/10-Foot SDF
M-6 Thread Cutting
Bolts (12 Req'd)
M-6 Hex Bolts
(8 Req'd)
Detail A
1/4" Diameter
Sealant
Flex-Trunk
Adapter
Use the bolts that are
removed from the cover
plate in Detail A
See Detail A
Flex-Trunk Assembly
(7-Foot Shown)
Swivel Base
5/16 Screw
5/16 Washer
Cover Plate
~
1/4" Diameter
Sealant
