Torit Downflo SDF-2 - Figure 15 - SDF-4 with Explosion Vents-Phantom View

Donaldson Company, Inc. © 1995
19

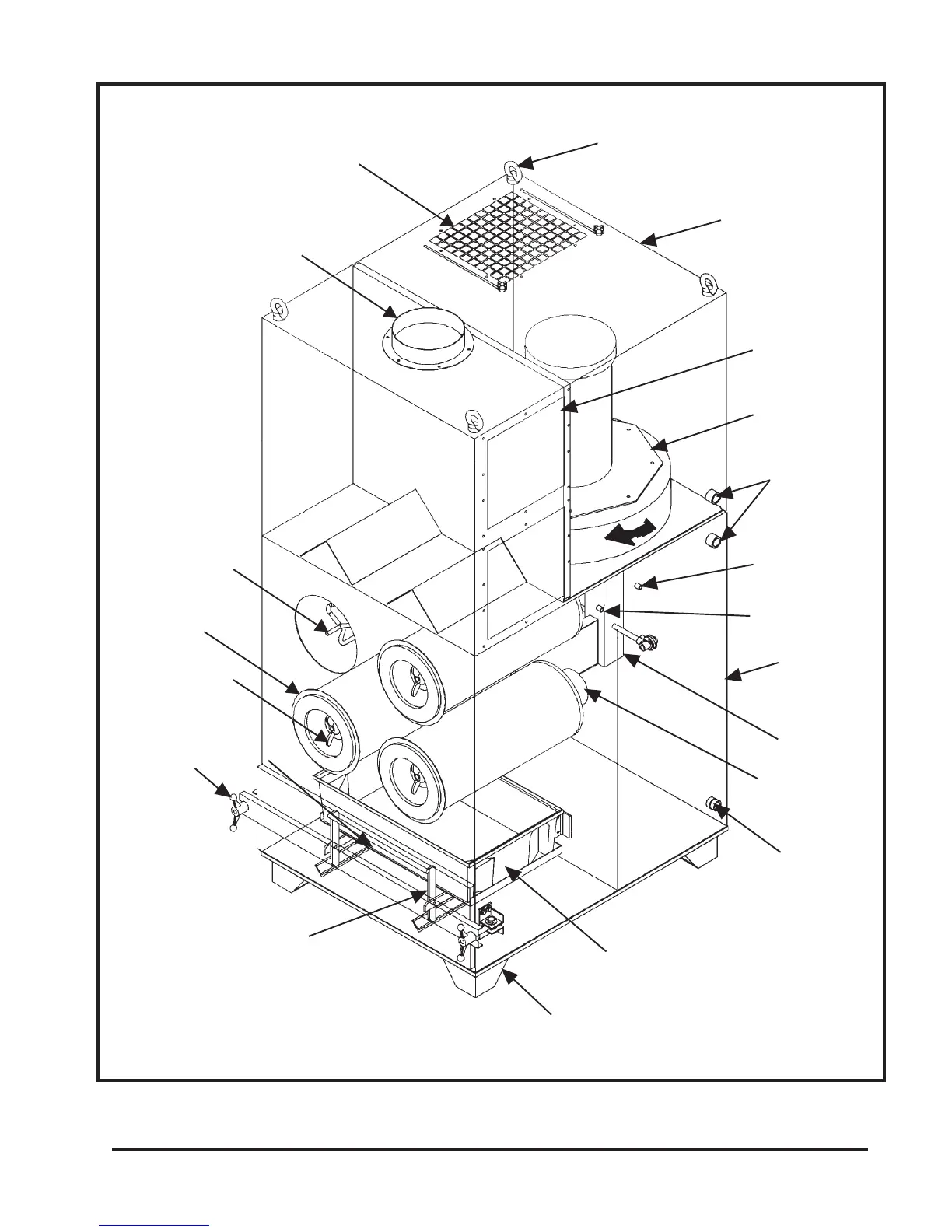

Figure 15
SDF-4 with Explosion Vents Phantom View
Outlet with Damper
Filter Yoke
Filter Wing Nut
Inlet Collar
Hinged Access
Door to Dust
Container
Lift Assembly Dust Container
Legs
Compressed Air Inlet—
1/2 National Pipe
Threads or British Pipe
Threads
Dust Container
Blower Pack
Screwed-on Rear
Access Panel to
Blower Compartment
Lifting Eyes
Opening for
Explosion Vents
1/8 NPT Coupling
(High Pressure)
1/8 NPT Coupling
(Low Pressure)
3/4" NPT
Couplings for
Electrical
Connections
Air Manifold
Assembly
Screwed-on
Rear Access
Panel to Clean
Air Manifold
Filter Element
Venturi
Sprinkler Taps (not shown) (not supplied standard with the SDF)
