Torit Downflo SDF-2 - Figure 1 SDF-4 Phantom View; Figure 1

Donaldson Company, Inc. © 1995
5
Figure 1

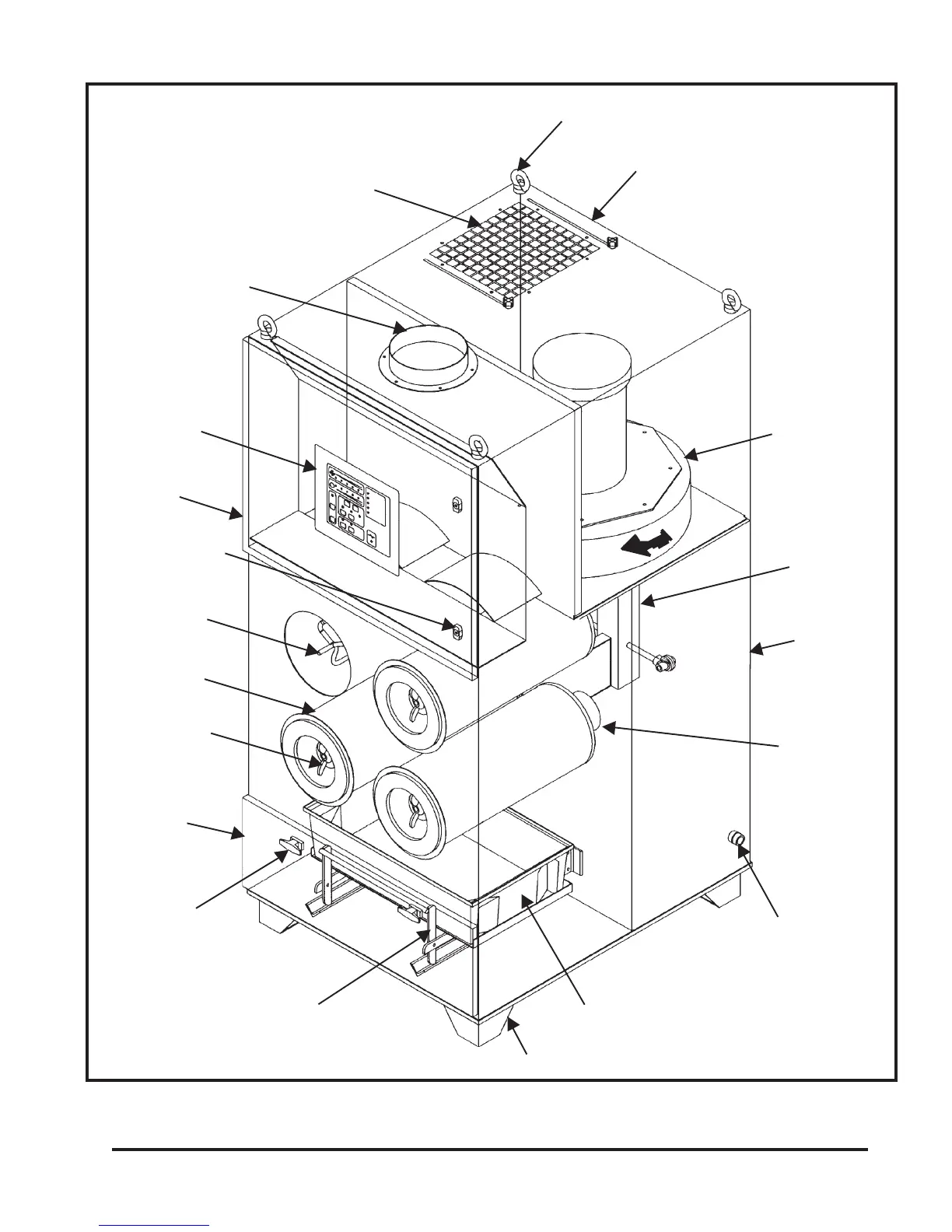

SDF–4 Phantom View
Lifting Eyes
Outlet with Damper
Filter Yoke
Filter Element
Filter Wing
Nut
Legs or Casters
Hinged Access
to Electrical
Compartment
Blower Pack
Screwed-on Rear
Access Panel to
Blower Compartment
Air Manifold
Assembly
Screwed-on
Rear Access
Panel to Clean
Air Manifold
Inlet Collar
Venturi
Lift Assembly Dust
Container
T–Handle
Quick Latch
Hinged Access
Door to Dust
Container
Tool Operated
Fastener
Compressed Air Inlet—
1/2 National Pipe
Threads or British Pipe
Threads
Dust Container
Checker™ Board
Diagnostic and
Control Panel
Sprinkler Taps (not shown) (not supplied standard with the SDF)
