Instructions for Use T-1929 e 13
5 Operation
The automatic sliding door may only be operated by a qualified person, the operator or a person in-
structed by the operator.
5.1 Commissioning
Before switching on the mains power supply:
• Unlock the mechanical door lock (optional) e.g. floor lock.
• Check that the movement area of the door leaves is free from objects e.g. umbrella stands or vehicles.
• Check that the floor guide (particularly if it is continuous) is clean and not blocked by anything (e.g.
gravel or snow).
• Switch on the mains power supply and select operating mode AUTOMATIC 1, for example.
The first movement after switching the power on for the first time is slow and H61/ H62 is
displayed. The control system is checking the door leaf’s travel distance and defining the end
position.
The door is now ready for operation.

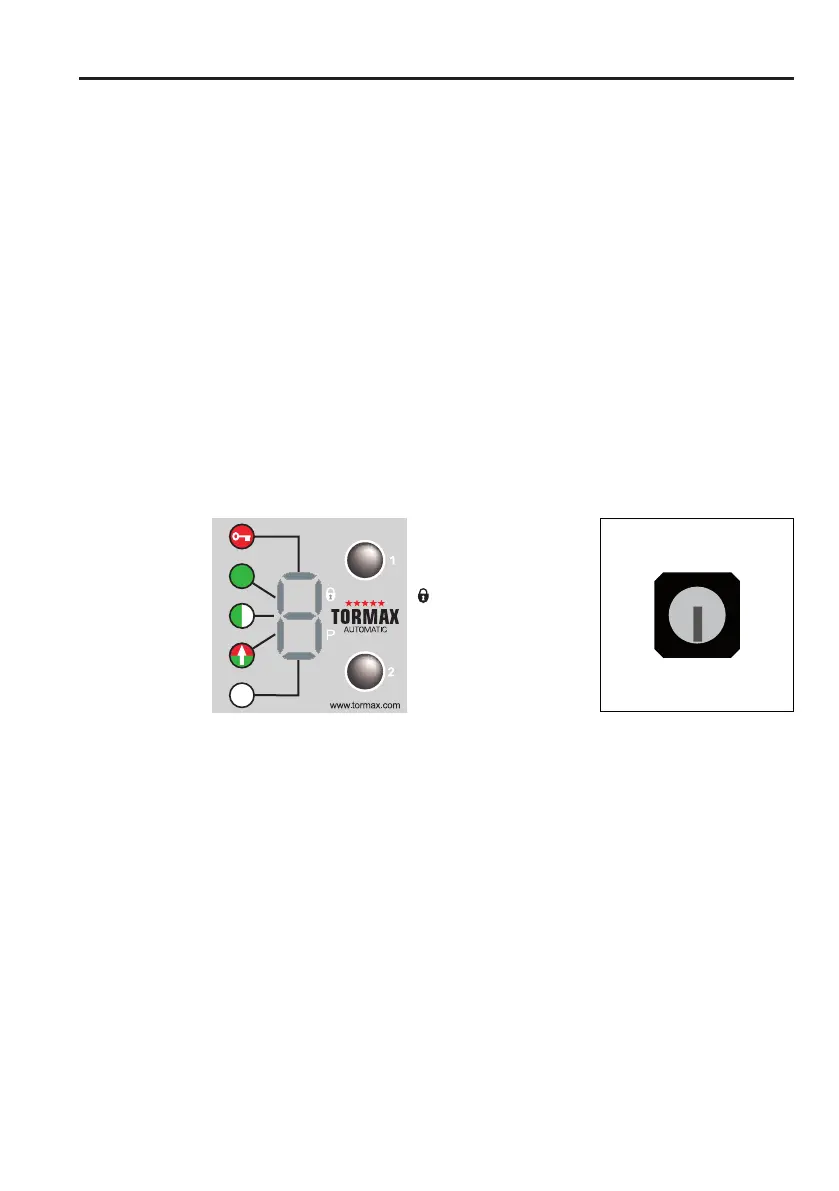

5.2 Operation with the TORMAX User Interface
TORMAX User Interface Lock u for User Interface
Unlocking of operating unit
The operating unit can be protected against unauthorised access by way of the lock u or the code lock.
• Unlock lock = position 0
or
• Enter code … / … / … using operating unit. The code can be determined by a qualified person. For
changing the code, see chapter 5.3.
Example with code 3 / 3 / 3. Press upper selection button 3 times, then press the lower selection but-
ton 3 times and the upper selection button within 15 s . In case of entering wrong code: Wait at least
5 s . After successfully entering the code, the operating unit will be released within 60 s. The type of
operation can be adjusted. Access will be automatically blocked again for 60 s after the button has
been pressed for the last time.
Selection of operating modes
• Press selector keys 1 or 2 briefly. The corresponding operating mode symbol is illuminated.
www.tormax.com
1
1
0
T1929_5e
Operating mode:
Selector key 1
Selector key 2
Door electr. locked
P: Manual operation
OFF
AUTOMATIC 1
AUTOMATIC 2
OPEN
EXIT
