Tormax 2203 User Manual

Instructions for Use T-1929 e 21

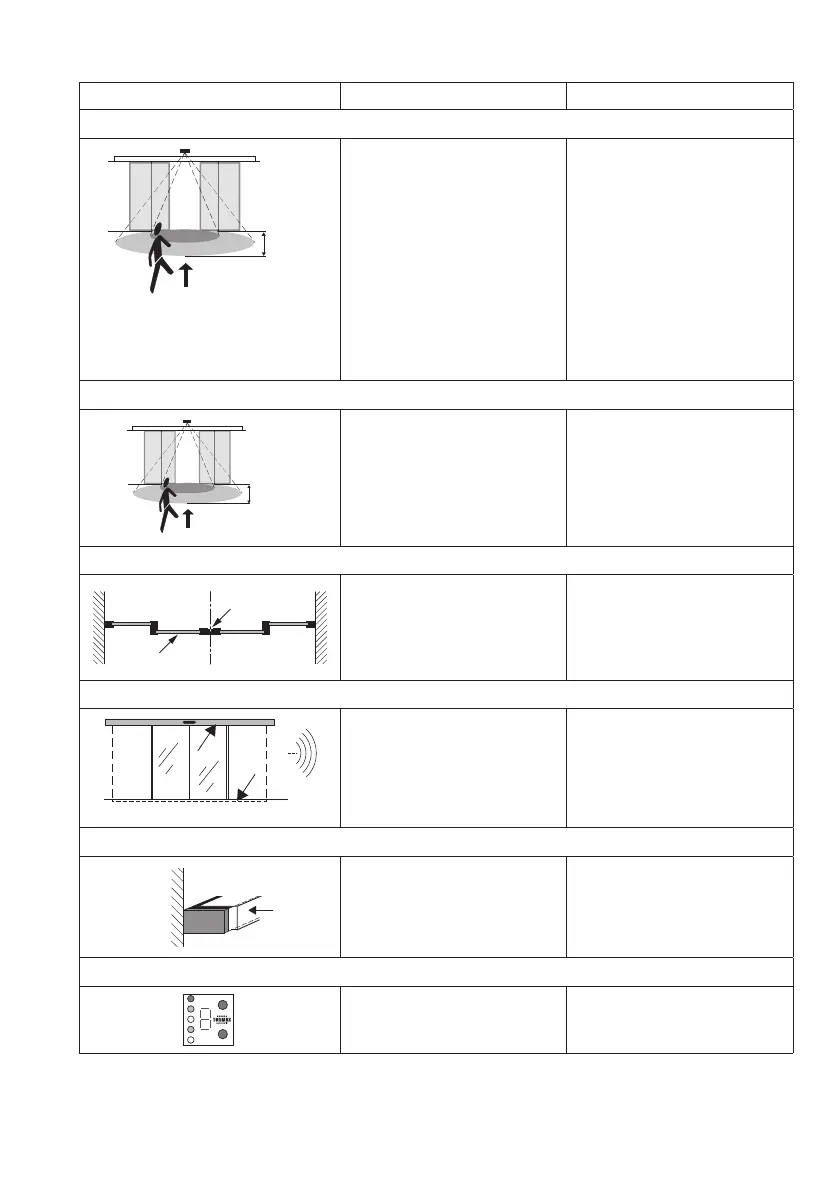

8.2 Check-list for Functional Checks
Item to be checked Procedure Result
Activating sensors
T1321_18
min. 1 m
• Walk through the door direct-
ly from the front and from dif-
ferent directions at normal
speed, starting both from the
inside and outside .
The door opens at the right time
and with sucient speed so that
passage through the door Is not
hindered.
• Walk through the door direct-
ly from the front and from dif-
ferent directions at a slow
speed like an infirm person,
starting both from the inside
and outside. Activation min.
1 m from main closing edge.
The door opens and remains
open until you are completely
through the door.
Safety sensors (can be combined with activating sensors)
T1321_18
min. 1 m
• Walk through the door direct-
ly from the front and from dif-
ferent directions at a slow
speed like an infirm person,
starting both from the inside
and outside. Activation min.
1 m from main closing edge.
The door opens and remains
open until you are completely
through the door.
Moving leaves, side parts, fixed leaves
• Check the glass door fillings,
door edges and rubber pro-
files for damage.
The door fillings have no sharp
edges and splintered glass.
The side parts and the door
seals are in place and undam-
aged.
Guide system and door guides
T1321_2
• Check the noises made
while the door moves.
No unusual and noticeable
movement noises can be
heard in the drive, guide sys-
tem or floor guides.
Cladding
iMotion 2301 / 2401 iMotion 2202
• Check whether the cladding
is correctly slotted into place
and secured.
The cladding is firmly slotted
into place.
Operating controls
3
• Check the function and
marking of operating con-
trols.
The operating controls are func-
tioning correctly; the markings
are visible and legible.
