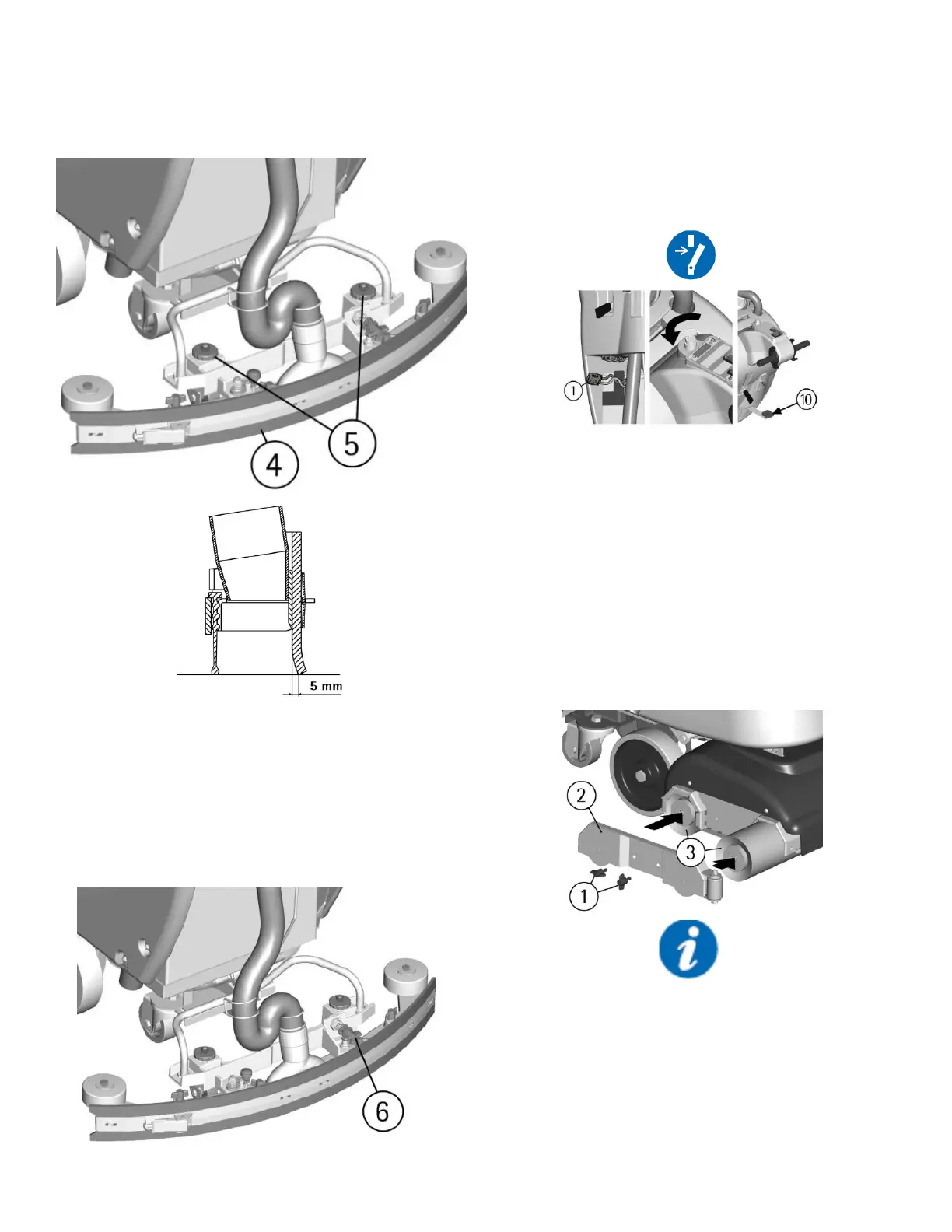

ADJUSTMENT OF THE SQUEEGEE
INCLINATION
In case of need, to increase the rubber bending
in the central part, it is necessary to tilt the
squeegee rotating counterclockwise the
register (6). To increase the rubber bending on
the squeegee extremities, rotate the register
clockwise.
BRUSH ASSEMBLY
1. Take off the electric supply to the brushes
motor unplugging the batteries connector (1).
For machines equipped with key switch (see
under "OPTIONAL ACCESSORIES"), turn the
key counterclockwise.
2. Acting upon the pedal (10) lift the brushes
base group.
3. With the brushes base group in the lifted
position, unscrew the two wing nuts (1) and
then remove the side support of the brushes
(2).
4. Insert the brushes (3) into their seats
from the side of the hexagonal coupling, taking
care to find the coupling at the opposite end
and to insert them completely.
5. Reposition the side support (2) so that
the support pins enter into the bearing holes
visible at the center of the brushes frame.
6. Retighten and the wing nuts
ATTENTION:
Use only brushes supplied with the machine or
the ones indicated in the paragraph
“RECOMMENDED BRUSHES”. The use of
other brushes can compromise the security.
Note: The wheels of the squeegee support
must be adjusted through the registers (5) at
the same height so that the squeegee works
parallel to the floor.
