1. Hold the drain hose placed in the front part
of the machine.
2. Take off the drain plug acting upon its lever
and empty the recovery tank into appropriate
containers (see under "OVERFLOW DEVICE").

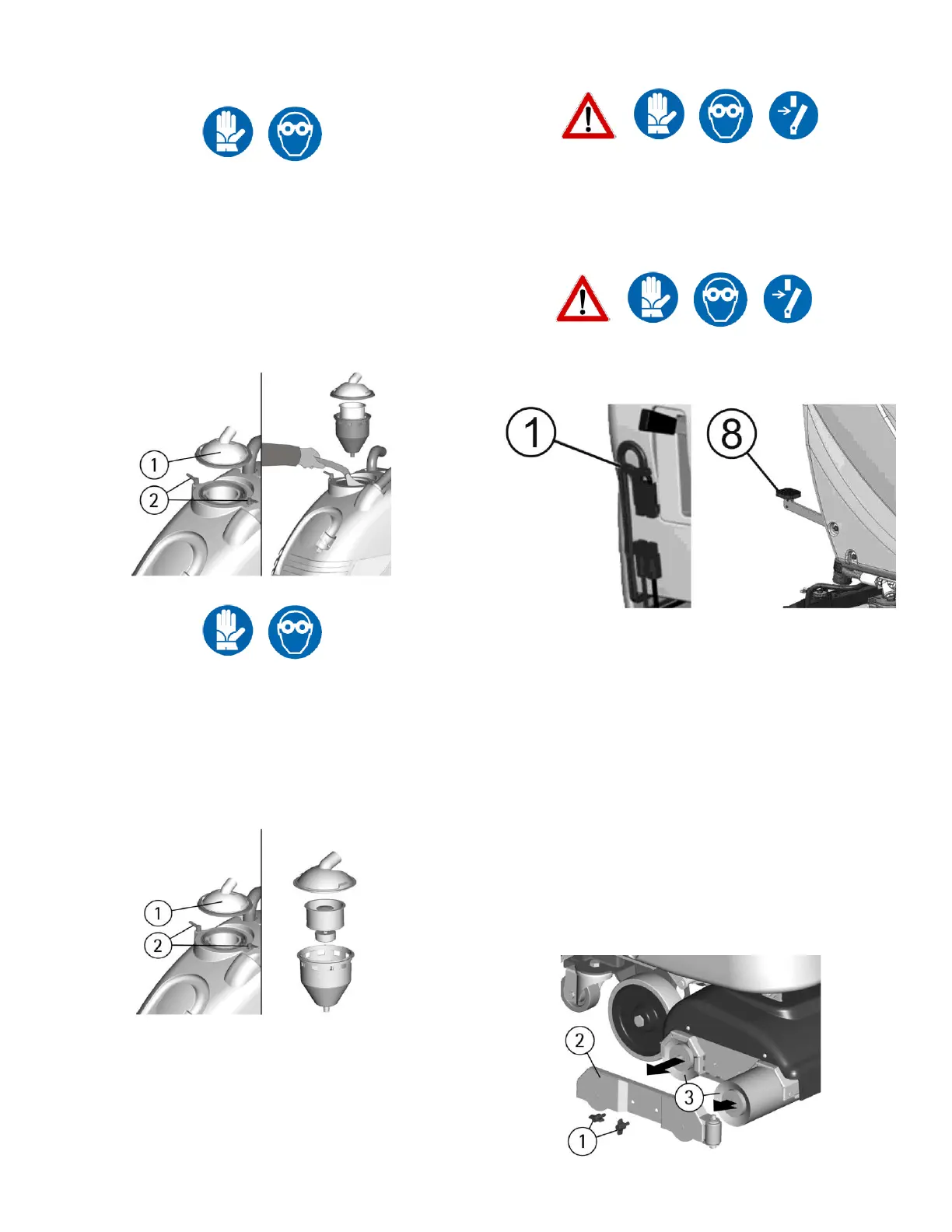

3. Take off the suction cover (1) after rotating
the blocking levers (2).
4. Take off the filter and filter protection.
5. Rinse the tank with a water jet.
SUCTION FILTER CLEANING
1. Take off suction cover (1) after rotating the
blocking levers (2).
2. Take off the filter and filter protection.
3. Clean all parts with a water jet especially
inside surfaces and filter bottom.
4. Carry out carefully the cleaning operations.
5. Reassemble all parts.
BRUSH DISASSEMBLY
1. Lift the brush base lowering the pedal (8).
2. Take off the electric supply to the brush
motor unplugging the battery connector (1).
DAILY MAINTENANCE
RECOVERY TANK CLEANING
3. With the brushes base group in lifted
position, unscrew the two wing nuts (1) and
then remove the side support of the brushes
(2).
4. Take off the brushes (3) from their seats
to proceed for their cleaning or replacement.
5. To reassemble them again, insert once
more the brushes (3) into their seats from
the side of the hexagonal coupling, taking care
to find the coupling at the opposite end and
to insert them completely.
6. Reposition the side support (2) so that
the support pins enter into the bearing holes
visible at the centre of the brushes frame.
7. Retighten and block the wing nuts.
Disassemble the brush and clean it with a
water jet (for the disassembly see under
“BRUSH DISASSEMBLY”).
BRUSH CLEANING
