Keeping the squeegee clean guarantees always
the best drying action.
For the cleaning it is necessary to:
1. Take off the squeegee hose (3) from its
coupling.
2. Disassemble the squeegee from its support
by rotating the lever (2) counterclockwise and
sliding the stud bolts (1) in their slots up to their
release.
3. Clean with care the internal part of the
squeegee inlet eliminating dirt residue.
4. Clean with care the squeegee rubbers.
5. Reassemble all parts.
WEEKLY MAINTENANCE
REAR SQUEEGEE RUBBER REPLACEMENT
SQUEEGEE HOSE CLEANING
Weekly, or in case of insufficient suction, it is
necessary to check that the squeegee hose is
not obstructed. Eventually, to clean it, proceed
as follows:
1. Take off the hose from the squeegee
coupling (1) and release the guide spring of the
suction hose (2).
2. Wash the inside of the hose with a water jet,
from the squeegee hose side.
3. To reassemble the hose reverse the
operation.

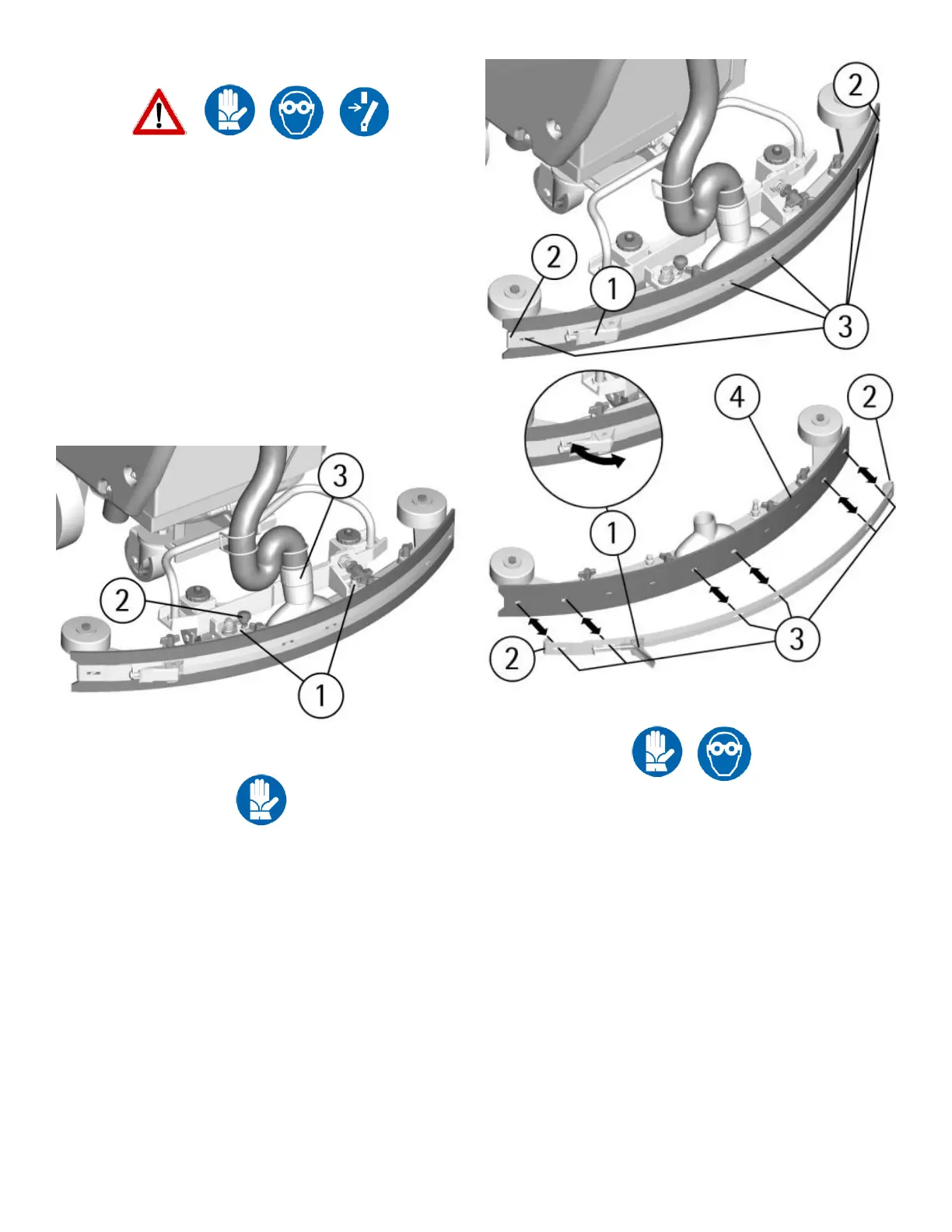

SQUEEGEE CLEANING
Check the squeegee rubber wear and
eventually turn or replace it.
For the replacement it is necessary to:
1. Lift the squeegee acting upon the lever.
2. Uncouple the hook (1) of the rubber holder
blade, release the extremities (2) from the
squeegee body and take off the rubber (4).
3. Turn the rubber (4) to a new side or replace
it.
To reassemble the squeegee repeat reverse
the operations above-mentioned, inserting the
rubber (4) on the guides (3), couple the
extremities (2) of the rubber holder blade onto
the squeegee body and finally block the hook
(1).
