Tornado 99685 User Manual

6

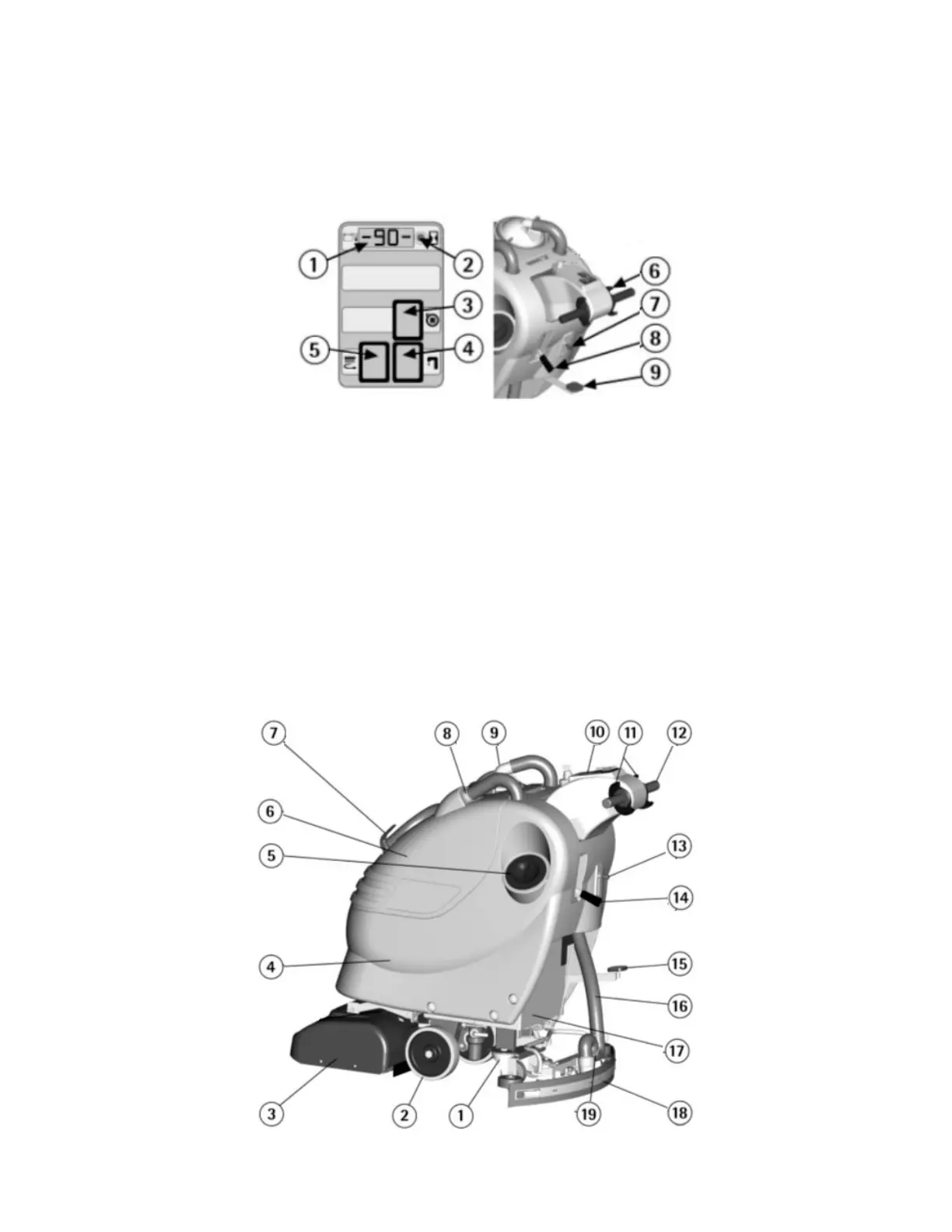

INSTRUMENT BOARD AND CONTROLS
1. CHARGE LEVEL DISPLAY: BATTERIES/HOUR
METER
2. VISUALIZATION PUSH BUTTON: HOUR/
METER
3. SUCTION MOTOR SWITCH
4. SOLUTION VALVE OPEN SIGNAL LAMP
MACHINE
1. CASTER WHEELS
2. WHEELS
3. BRUSH HEAD
4. SOLUTION TANK
5. CAP FOR SOLUTION TANK
6. RECOVERY TANK
7. RECOVERY TANK DRAIN HOSE
8. INLET OPENING SUCTION HOSE
9. FLOAT ASSEMBLY COVER
5. BRUSH MOTOR SWITCH
6. BRUSH ACTIVATION LEVERS
7. SOLUTION VALVE LEVER
8. SQUEEGEE LIFTING LEVER
9. BRUSH HEAD LIFTING PEDAL
10. INSTRUMENT BOARD
11. BRUSH ACTIVATION LEVER
12. HANDLE BARS
13. SOLUTION VALVE LEVER
14. SQUEEGEE LIFTING LEVER
15. BRUSH HEAD LIFTING PEDAL
16. SUCTION HOSE
17. BATTERY
18. SQUEEGEE ASSEMBLY
19. SPRING SQUEEGEE HOSE GUIDE

Tornado 99685 Specifications

General

Brand	Tornado
Model	99685
Category	Scrubber
Language	English
