1
2
3
4
G022167

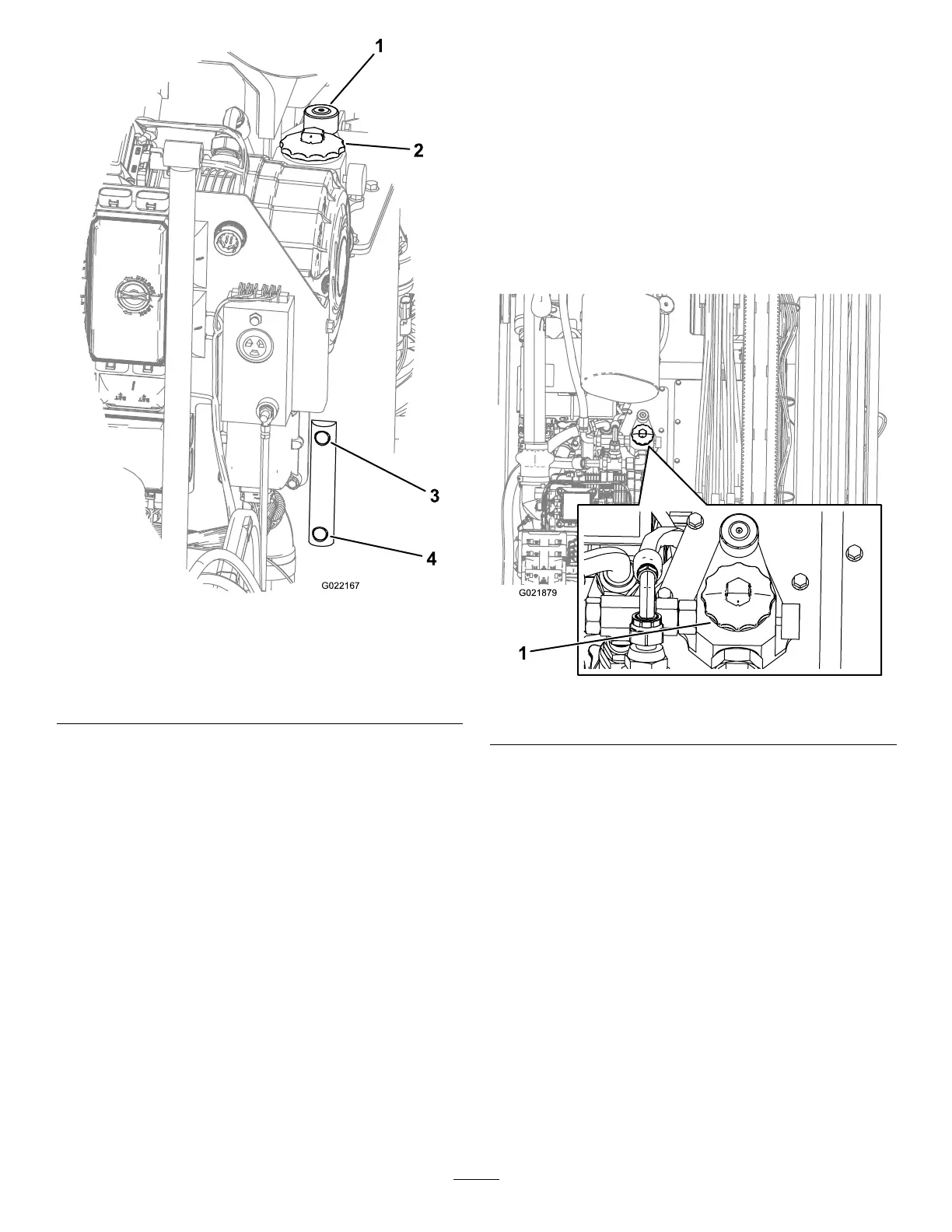

Figure108
1.Hydraulic-tankbreather
2.Hydraulic-tankcap
3.Fulloillevel(operatingtemperature)
4.Lowoillevel
5.Ifthelevelislow,openthehydraulic-tankcap,adda
smallamountofoilandwait2minutesfortheoillevel
tostabilizeinthesightgauge(Figure108).
Note:Theoillevelisbetween1/2to2/3fullinthe
sightgaugewhentheoilisatambienttemperatureorif
theenginehasnotyetbeenstartedfortheday.
6.Continuetoaddtheappropriateuidinsmall
incrementsuntilitreachesFullonthesightgauge
(Figure108).
7.Installcapontothellerneck.
ChangingtheHydraulic-FluidReturn
Filter
ServiceInterval:Every500hours/Every6months
(whichevercomesrst)
1.Parkthemachineonalevelsurface,stoptheengine,
andremovetheignitionkey.
2.Openthefronthood.
3.Cleantheareaaroundthellerneckandcapofthe
hydraulictank.
4.Openthehydraulic-tankcap(Figure109).
Figure109
1.Hydraulic-tankcap
5.Discardtheoldhydraulic-uidreturnlter.
6.Installanewhydraulic-uidreturnlter.
ChangingtheHydraulic-PressureFilter
ServiceInterval:Every500hours/Every6months
(whichevercomesrst)
1.Parkthemachineonalevelsurface,stoptheengine,
andremovetheignitionkey.
2.Openthefronthood.
3.Placeadrainpanunderthelter.
4.Usingalterwrench,removethehydraulic-pressure
lter(Figure110).
84
