Toro 30484 - Adjusting the Anti-Scalp Rollers

1.Selectholeinheight-of-cutpostandnumberof
spacerscorrespondingtotheheight-of-cutdesired
(Figure14).
2.Usingthelifthandle,raisesideofdeckandremove
hairpincotter(
Figure14).
3.Addorremovespacersifneededandthenalign
holesandinserthairpincotter(Figure14).
Note:Spareheight-of-cutspacersmaybestored
onpostsandretainedbyahairpincotter.
Important:Allfourhairpincotterpinsmustbe
inthesameholelocationandwiththecorrect
numberofspacersforalevelcut.

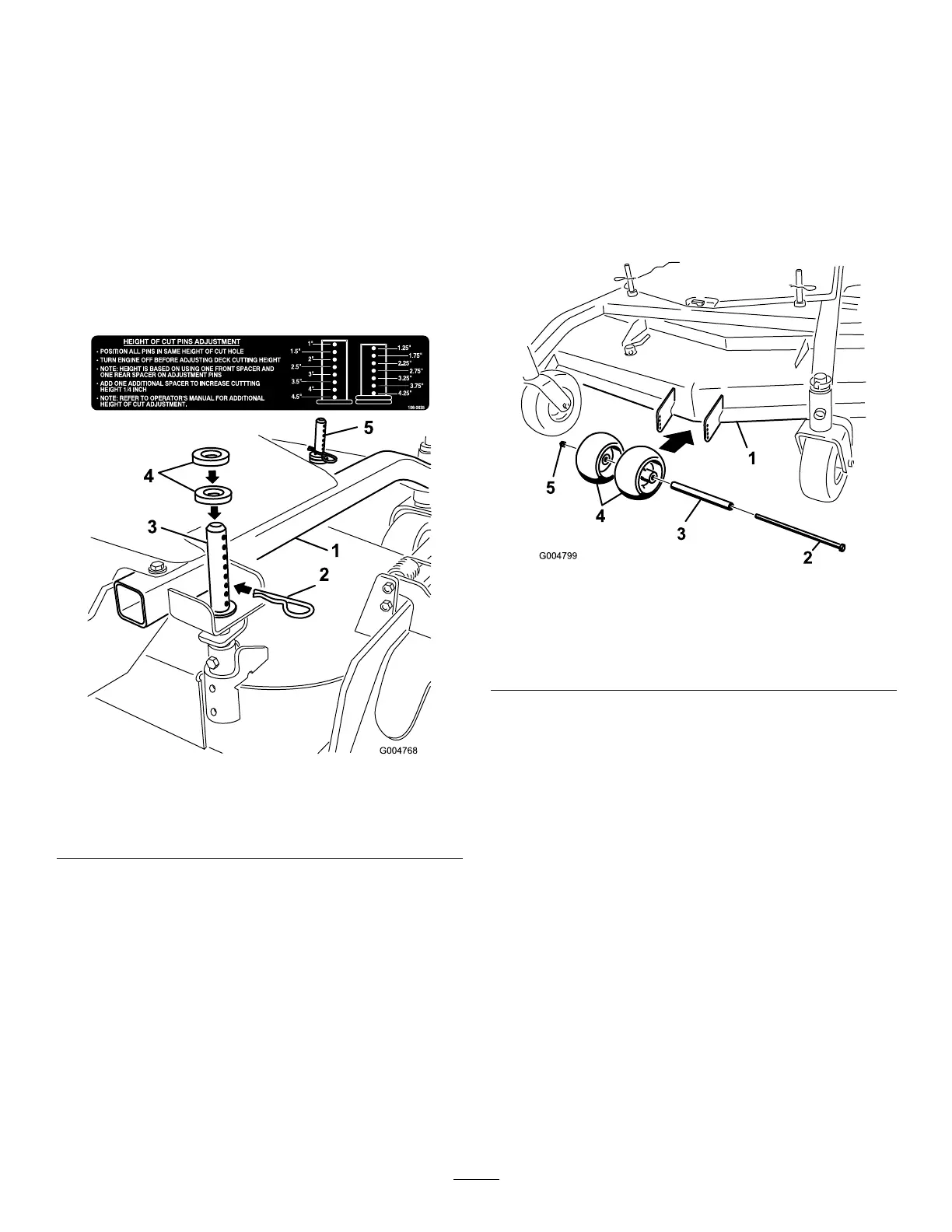

Figure14
1.CarrierFrame4.Spacers
2.HairpinCotter5.Frontheight-of-cutpost
3.Backheight-of-cutpost
AdjustingtheAnti-Scalp
Rollers
Theanti-scalprollersneedtobeadjustedintheproper
holelocationforeachheight-of-cutposition.There
needstobe3/8inch(10mm)minimumclearance
abovetheground.
Note:Iftheanti-scalprollersareadjustedtoolowit
cancauseexcesswearoftherollers.
1.Afteradjustingheight-of-cut,checktheanti-scalp
rollerssothatthereisaminimumof3/8inch
(10mm)clearanceabovetheground(Figure15,
Figure16,Figure17).
2.Ifadjustmentisneeded,removethebolt,washers
andnut(
Figure15,Figure16,Figure17).
3.Selectaholepositionsotheanti-scalprollersare
aminimumof3/8inch(10mm)offtheground
(Figure15,Figure16,Figure17).
4.Installtheboltandnut(Figure15,Figure16,
Figure17).
Figure15
40inch,48inch,and52inchMowerDecks
1.Mowerdeck
4.Anti-ScalpRollers
2.Bolt5.Nut
3.Spacer
19
