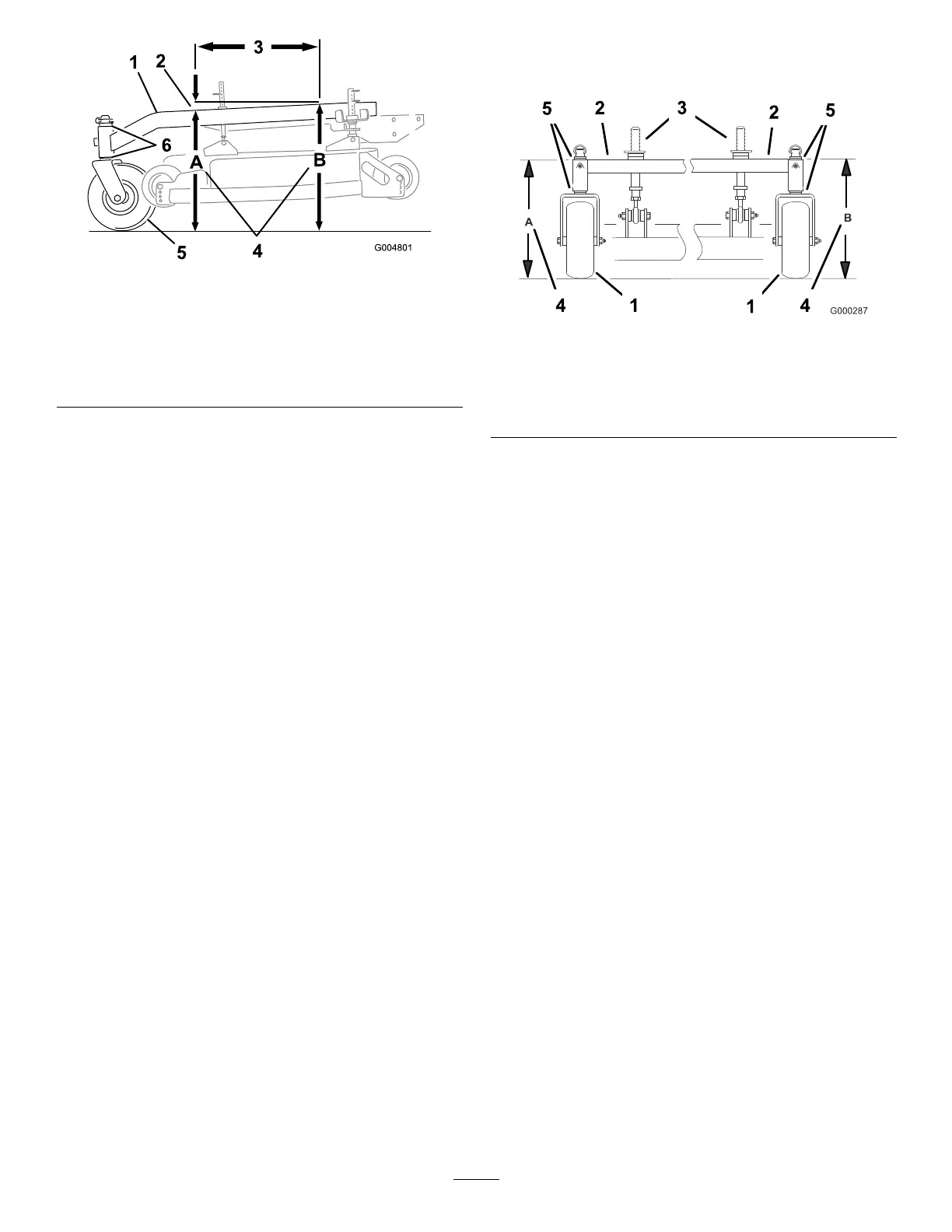

Figure71
1.CarrierFrame
4.HeightatlocationsAand
B
2.1/8inch-3/8inch(3-10
mm)pitchover24inch(61
cm)length
5.CasterWheel
3.24inches(61cm)6.Casterspacers
2.MeasurecarrierframeheightatlocationA
(Figure71).
3.MeasurecarrierframeheightatlocationB
(Figure71).
4.TheheightatlocationAmustbean1/8-3/8inch(3
mm-10mm)lowerthanlocationB(Figure71).
5.Ifthecarrierframeisnotcorrect,movecaster
spacerstomakeitan1/8-3/8inch(3-10mm)pitch
(
Figure71).Movespacersfromtoporbottomto
makethecorrectpitch.
6.Thetirepressuremayalsobeadjustedslightlyto
makean1/8-3/8inch(3-10mm)pitch.
CheckingtheCarrierFrame
Side-to-SideHeight
Thecarrierframeneedstobeparallelside-to-sidefrom
theground.
1.DisengagethePTOandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Adjustthetirepressureinthe
reartirestospecications;referto
DriveSystemMaintenance(page33).
4.MeasurecarrierframeheightatlocationA
(Figure72).
5.MeasurecarrierframeheightatlocationB
(Figure72).
6.Ifthecarrierframeheightisnotthesamemove
spacersfromtoporbottomofcasterwheel,to
makeitlevel.Thetirepressuremayalsobeadjusted
slightlytomakeitlevel.
Figure72
1.CasterWheel4.Sameheightatlocations
AandB
2.CarrierFrame5.Casterspacers
3.Frontheight-of-cutpins
CheckingtheMowerDeck
Front-to-RearPitch
1.Adjustthetirepressureinthe
reartirestospecications;referto
DriveSystemMaintenance(page33).
2.Positiononebladefront-to-rear.MeasureatAand
Blocationsfromalevelsurfacetothecuttingedge
ofthebladetips(Figure73orFigure74).For36
inchmowerdecksuseFigure74.
3.Themowerbladeshouldbea1/4inch(6mm)lower
infrontatAthanintherearatB.Rotatebladesand
repeatforotherblades.Ifitisnotcorrect,proceed
toChangingtheDeckFront-to-RearPitch.
49
