Toro 30484 - Changing the Mower Deck Side-To-Side Height; Matching Height of Cut

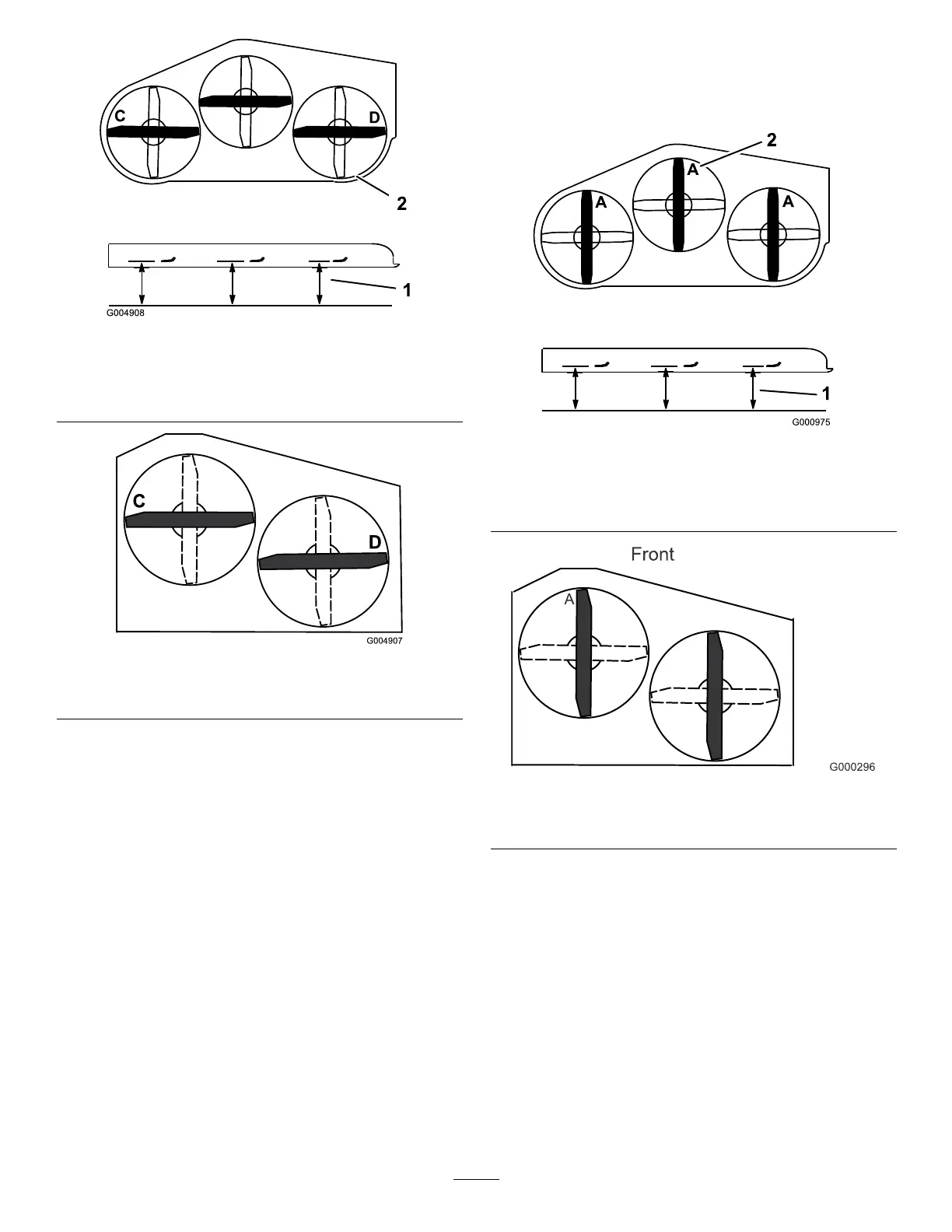

Figure76
40inch,48inch,and52inchMowerDeckshown
1.Measurefromalevel
surface
2.MeasurebladeatpointsC
andD
Figure77
36inchMowerDeckshown
3.ThedifferencebetweenmeasurementsCandD
shouldbenomorethan1/4inch(6mm).
ChangingtheMowerDeck
Side-to-SideHeight
Changingtheside-to-sideheightisdonebyadjustingthe
reartirepressureandcasterspacers.
1.Changethereartirepressure.Dothistothe
correspondingsidethatneedsadjustment.
2.Adjustthecasterspacer.
3.Recheckthefront-to-rearpitchandsidetoside
levelingofthecuttingunit.
MatchingHeightofCut
1.Checkthereartirepressure.
2.Settheheight-of-cuttothe4inch(101.6mm)
positionfollowingtheheight-of-cutdecal.
3.Withthemachineonlevelsurface,positiononeblade
front-to-rear.MeasureatAandfromlevelsurfaceto
thecuttingedgeofthebladetips(Figure78).For36
inchmowerdecksuse
Figure79.
Figure78
40inch,48inch,and52inchMowerDeckshown
1.Measurefromalevel
surface
2.MeasurebladeatpointA
Figure79
36inchMowerDeckshown
4.Themeasurementshouldbe4inch(101.6mm).
5.Ifitdoesnotmeasurecorrectly:
A.Adjustthereartirepressure.
B.Adjustthecasterforkspacers.
C.Adjustthefrontmowerdecksupportpins.
6.Checkthecarrierframefront-to-rearpitch.
51
