Toro 30484 - Changing the Mower Deck Front-To-Rear Pitch; Checking the Mower Deck Side-To-Side Height

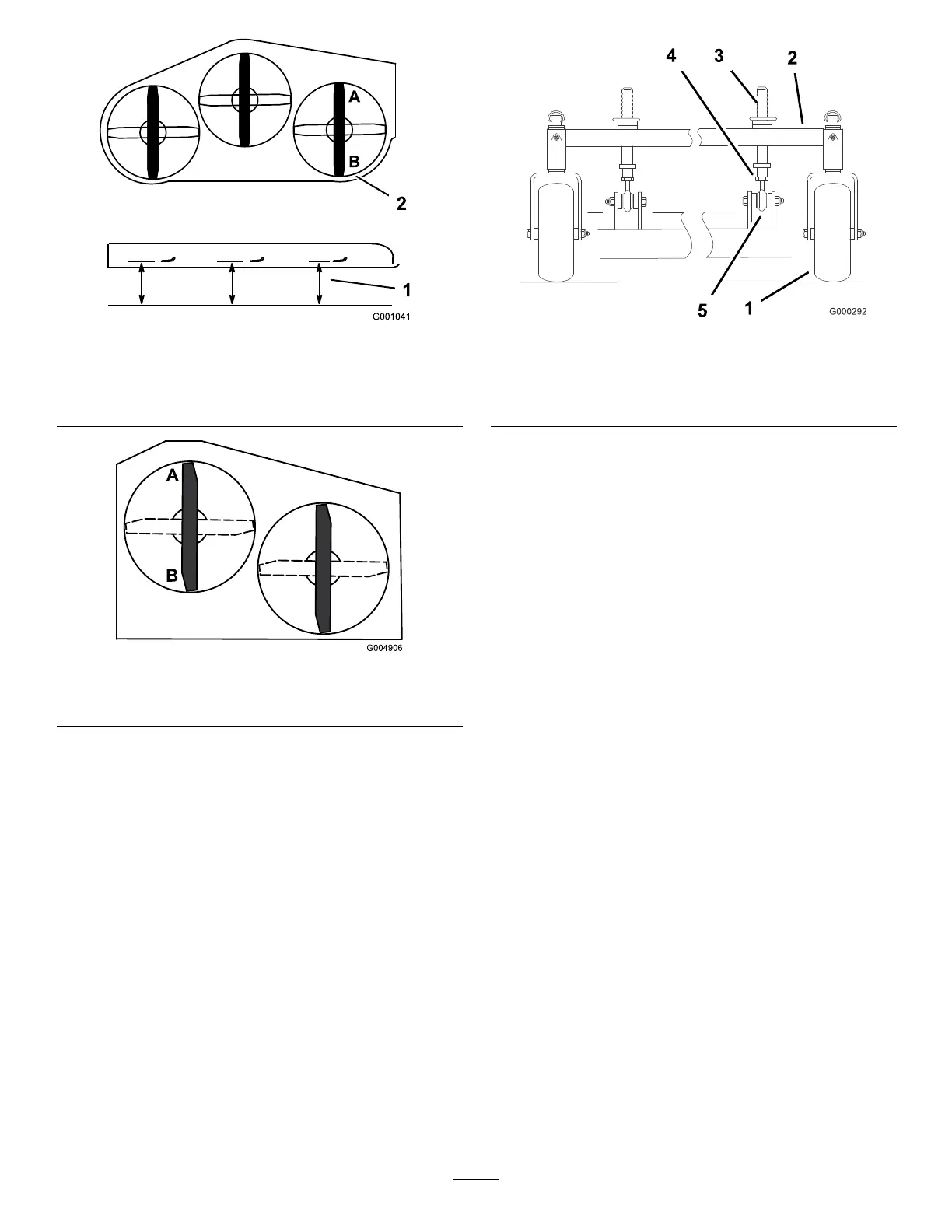

Figure73
40inch,48inch,and52inchMowerDeckshown
1.MeasurebladeatpointsA
andB
2.Measurefromalevel
surface
Figure74
36inchMowerDeckshown
ChangingtheMowerDeck
Front-to-RearPitch
Changingthefront-to-rearpitchisdonebyadjustingthe
frontheight-of-cutposts.
1.Tochangethefront-to-rearpitch,thefront
height-of-cutpostscanbeadjusted(
Figure75).
Figure75
1.CasterWheel
4.Jamnut
2.CarrierFrame
5.Balljoint
3.Frontheight-of-cutpins
2.Toraisethefrontofthedeck,loosenjamnutand
rotatethefrontpinclockwise(
Figure75).
3.Tolowerthefrontofthedeck,loosenjamnutand
rotatethefrontpincounterclockwise(Figure75).
4.Positionthebladesfront-to-rear.MeasureatCand
Dlocations(
Figure73)fromalevelsurfacetothe
cuttingedgeoftheblades.
5.Checktheside-to-sidelevelingofthecuttingunit.
6.Tightenthejamnuts(Figure75).
CheckingtheMowerDeck
Side-to-SideHeight
1.Adjustthereartirepressuretospecications;refer
toDriveSystemMaintenance(page33).
2.Positionthebladesside-to-side.MeasureatCand
Dlocationsfromalevelsurfacetothecuttingedge
ofbladetips(
Figure76).For36inchmowerdecks
useFigure77.
50
