Toro 30484 - Drive System Maintenance; Adjusting the Tracking; Checking the Tire Pressure

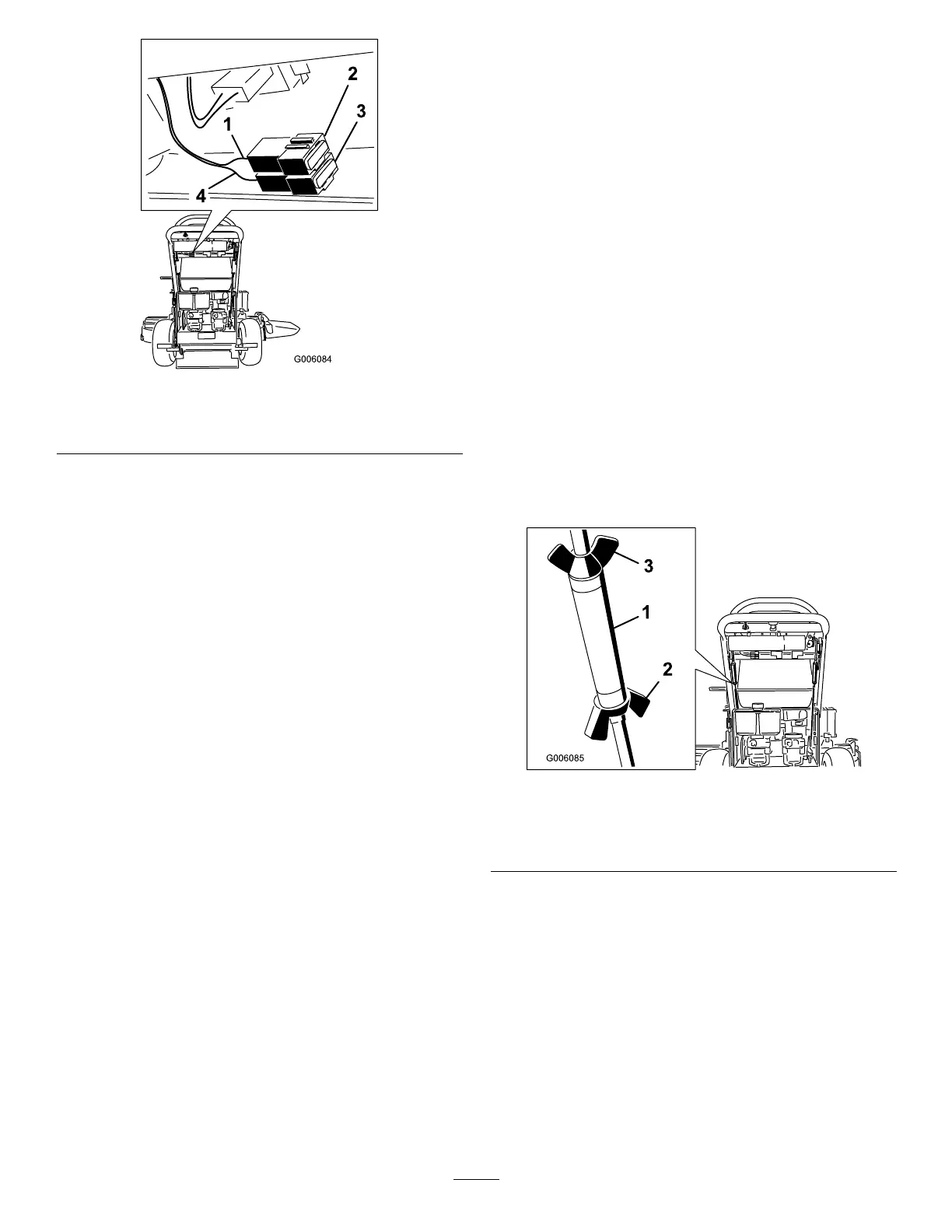

Figure40
1.Redwire3.Fuse,25amp,bladetype
2.Fuse,30amp,bladetype4.Violetwire
DriveSystem
Maintenance
AdjustingtheTracking
1.Ifthemachinedoesnottrackstraight,adjustment
isrequired.
2.Checkthereartirepressure.RefertoCheckingthe
TirePressure.
3.Loosenthewingnutsontherightcontrolrodand
rotatetheturnbuckleinorouttoensuretheright
sidecontrolleveriscenteredintheneutrallock
position.Securetheturnbuckleinpositionwiththe
wingnuts(
Figure41).
4.Loosenthewingnutsontheleftcontrolrodand
rotatetheturnbuckleinorouttochangethetracking.
Securetheturnbuckleinpositionwiththewingnuts
(Figure41).
5.Checkforpropertracking.Adjusttheleftcontrol
rodifachangeisneeded.
Figure41
1.Turnbuckle
3.Topwingnut(lefthand
threaded)
2.Bottomwingnut
CheckingtheTirePressure
ServiceInterval:Every50hours/Monthly(whichever
comesrst)
Checkthepressureatthevalvestem(
Figure42).
33
