FuelGauge

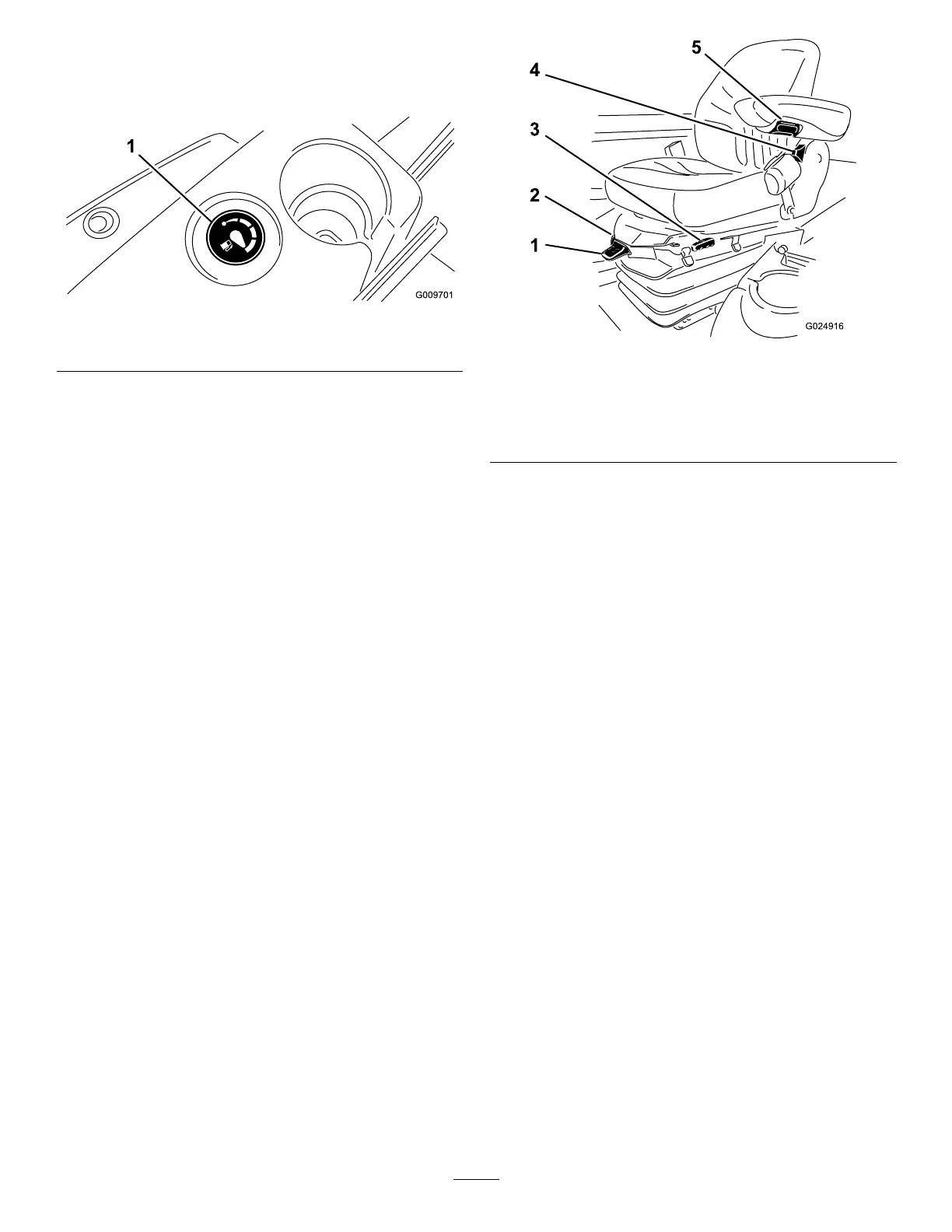

Thefuelgauge(Figure11)indicatestheleveloffuelinthe
tank.
Figure11
1.Fuelgauge
SeatAdjustments
ForeandAftAdjustingLever
Pulloutonthelevertoslidetheseatforeoraft(Figure12).
SeatArmrestAdjustingKnob
Rotatetheknobtoadjusttheseatarmrestangle(Figure12).
Seat-backAdjustingLever
Movethelevertoadjusttheseat-backangle(Figure12).
Weightgauge
Theweightgaugeindicateswhentheseatisadjustedtothe
weightoftheoperator(Figure12).Youcanmakeheight
adjustmentsbypositioningthesuspensionwithintherange
ofthegreenregion.
1
2
3
4
5
G024916
Figure12
1.Weight-adjustinglever
4.Seat-backadjustinglever
2.Weightgauge5.Armrestadjustingknob
3.Foreandaftadjusting
lever
Weight-adjustingLever
Adjustforoperatorweight(Figure12).Pulluponthelever
toincreasetheairpressureandpushdowntodecreasetheair
pressure.Theproperadjustmentisattainedwhentheweight
gaugeisinthegreenregion.
16
